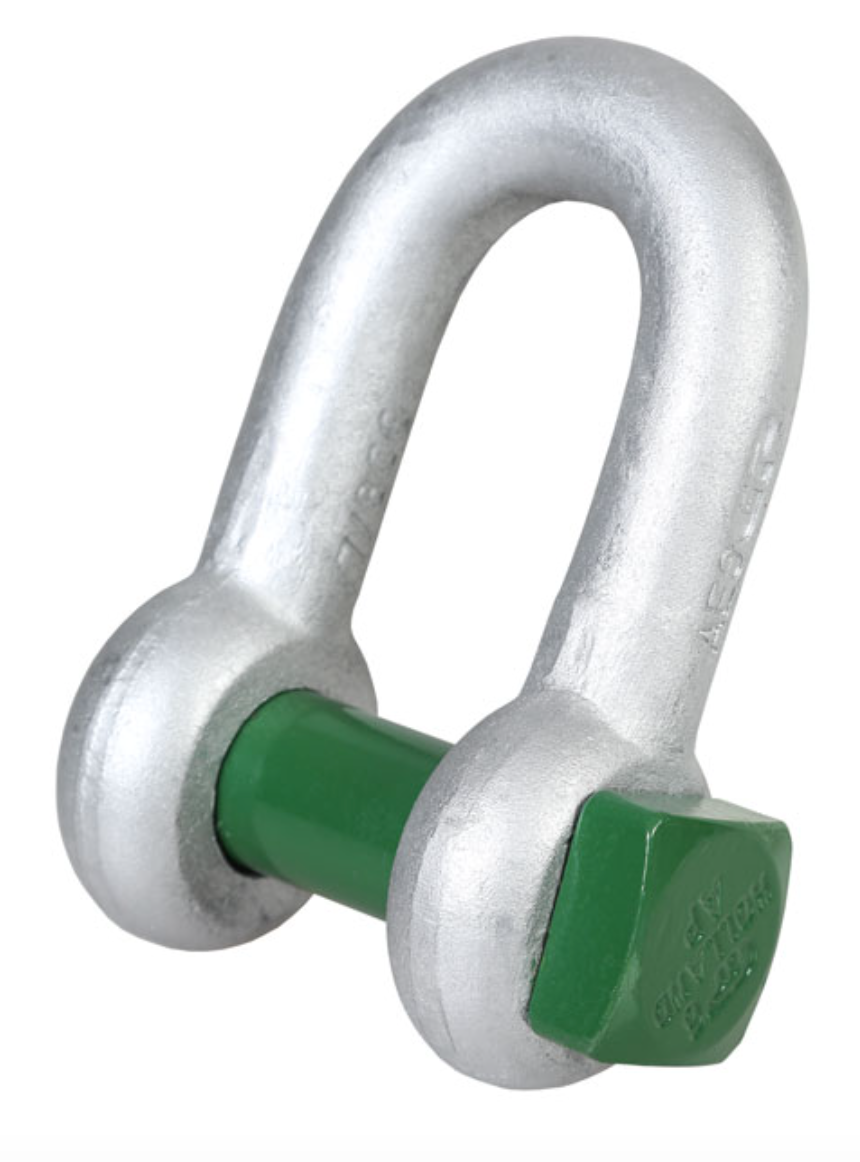

Green Pin Grade 6 Square Head Screw Pin Dee Shackle

Name: Green Pin Grade 6 Square Head Screw Pin Dee Shackle
Brand: Green Pin
SKU: 269-33-1
Price: 11.10 GBP
Availability: InStock

Green Pin SKU: 269-33-1

1 1

Green Pin Grade 6 Square Head Screw Pin Dee Shackle Grade 6 high tensile steel body and pin, quenched and tempered. Hot dipped galvanised finish. Conforms to BS EN 13889, ASME B30.26... Read More

£11.10

Sale TODAY'S PRICE £11.10

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more green pin grade 6 standard shackles

Description

Green Pin Grade 6 Square Head Screw Pin Dee Shackle

Grade 6 high tensile steel body and pin, quenched and tempered.
Hot dipped galvanised finish.
Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
Minimum breaking load is 6 times the W.L.L.
Temperature range -20ºC up to +200ºC.
Certification - Declaration of Conformity
G-4154

Specification

SKU	W.L.L.	A	B	C	D	E	F	G	H	I	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	mm	kgs
269-33-1	2.0	13.5	16	34	13	22	43	81	57.5	22	0.32
269-33-2	3.25	16	19	40	16	27	51	97	71	27	0.58
269-33-3	4.75	19	22	46	19	31	59	112	82	32	0.92
269-33-4	6.5	22	25	52	22	36	73	134	93	32	1.33
269-33-5	8.5	25	28	59	25	43	85	154	108	36	2.03
269-33-6	9.5	28	32	66	28	47	90	167	120	41	2.88
269-33-7	12	32	35	72	32	51	94	180	137	50	3.96
269-33-8	13.5	35	38	80	35	57	115	209	149	50	5.24
269-33-9	17	38	42	88	38	60	127	230	164	60	6.8
269-33-10	25	45	50	103	45	74	149	271	192	60	11.22
