Green Pin Grade 6 Square Head Dee Shackle

£7.70

SKU :269-33-1

WLL

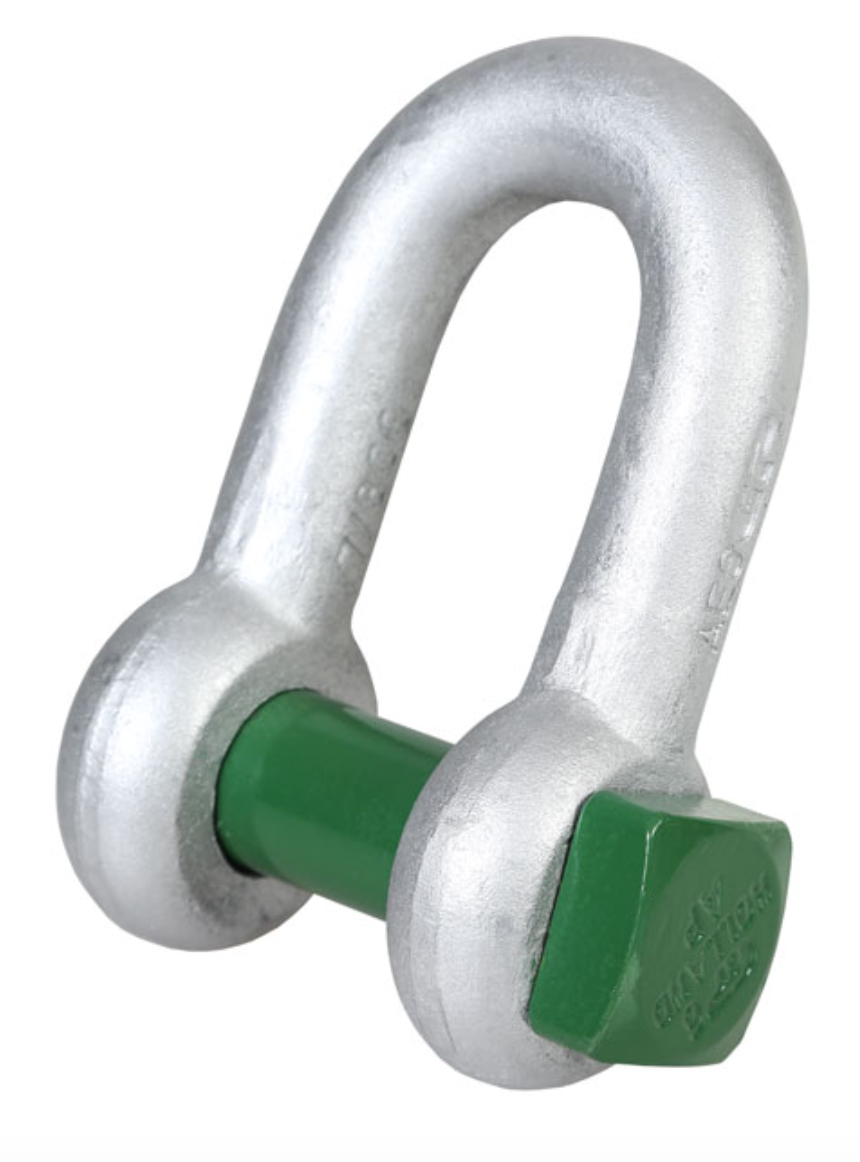

Green Pin Grade 6 Square Head Dee Shackle - GPSQD

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to BS EN 13889, ASME B30.26 and meets the W.L.L. performance requirements of US Fed. Spec. RR-C-271, Grade A.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Certification available DoC
  • G-4154

Spec

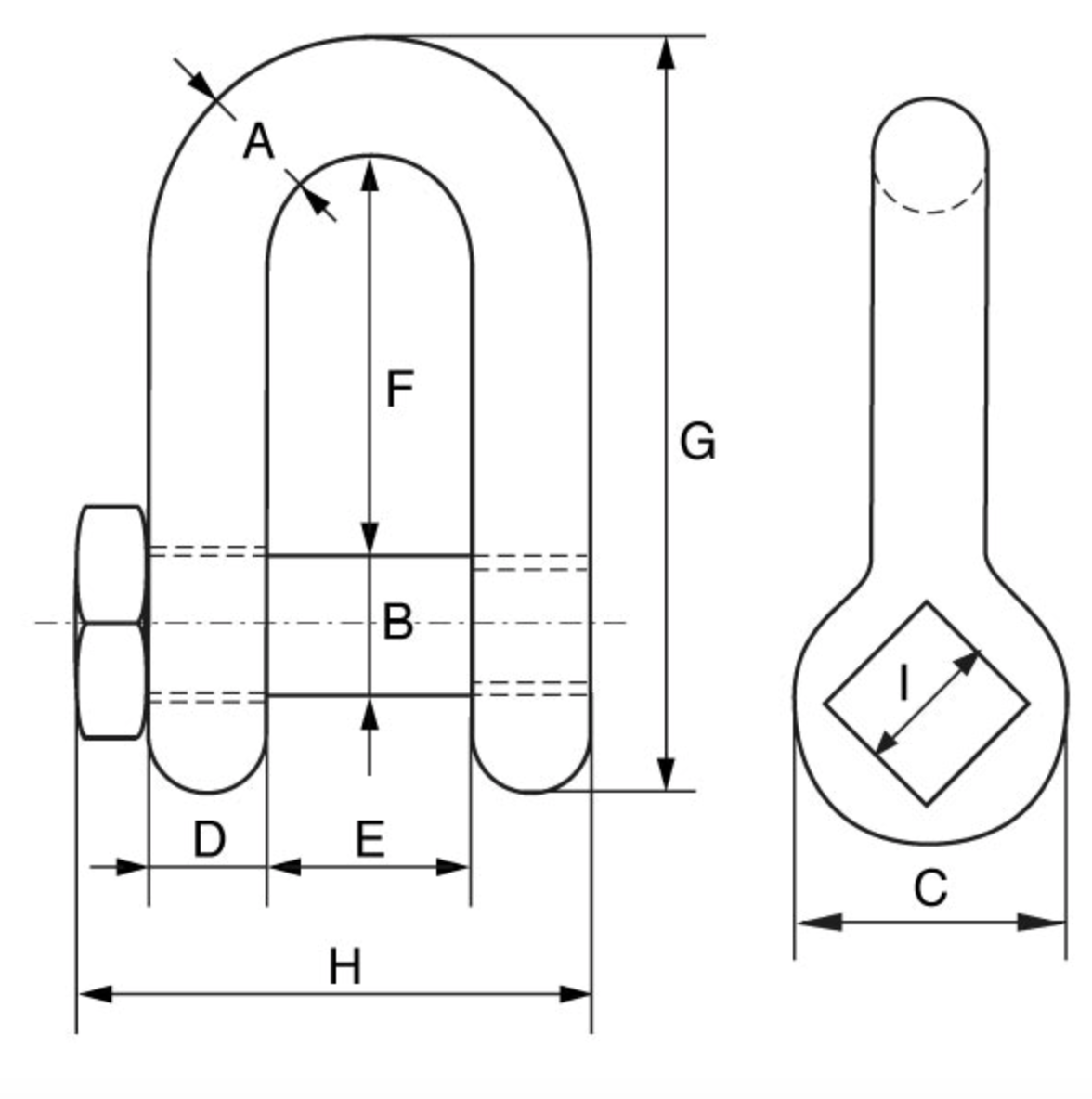

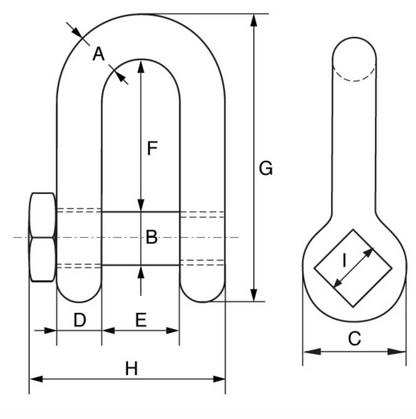

SKU Product Code W.L.L. A B C D E F G H I Weight
t mm mm mm mm mm mm mm mm mm kgs
269-33-1 GPSQD2 2 13.5 16 34 13 22 43 81 57.5 22 0.32
269-33-2 GPSQD3.25 3.25 16 19 40 16 27 51 97 71 27 0.58
269-33-3 GPSQD4.75 4.75 19 22 46 19 31 59 112 82 32 0.92
269-33-4 GPSQD6.5 6.5 22 25 52 22 36 73 134 93 32 1.33
269-33-5 GPSQD8.5 8.5 25 28 59 25 43 85 154 108 36 2.03
269-33-6 GPSQD9.5 9.5 28 32 66 28 47 90 167 120 41 2.88
269-33-7 GPSQD12 12 32 35 72 32 51 94 180 137 50 3.96
269-33-8 GPSQD13.5 13.5 35 38 80 35 57 115 209 149 50 5.24
269-33-9 GPSQD17 17 38 42 88 38 60 127 230 164 60 6.8
269-33-10 GPSQD25 25 45 50 103 45 74 149 271 192 60 11.22
