Green Pin

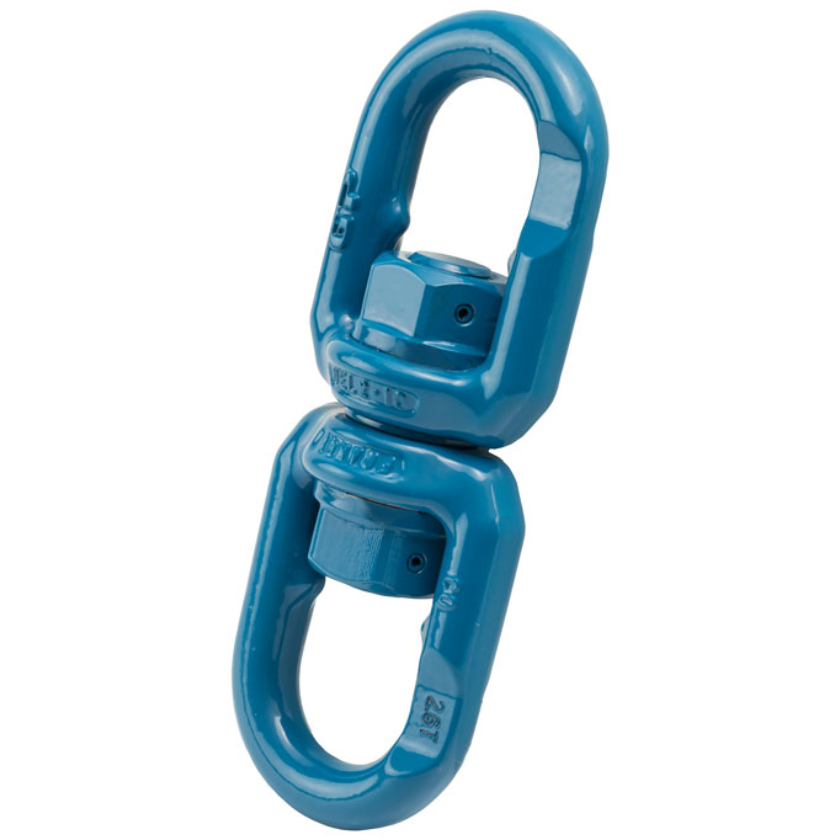

Green Pin Grade 10 Needle Bearing Swivel Eye/Eye

Green Pin Grade 10 Needle Bearing Swivel Eye/Eye

SKU: 286-819-1

Read More
Regular price £108.20
Regular price RRP Sale price TODAY'S PRICE £108.20

In stock

Tax included. Shipping calculated at checkout.

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require more stock than shown as available or if you have any enquiries, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £150
Click & Collect from BL96EY
View full details

Description

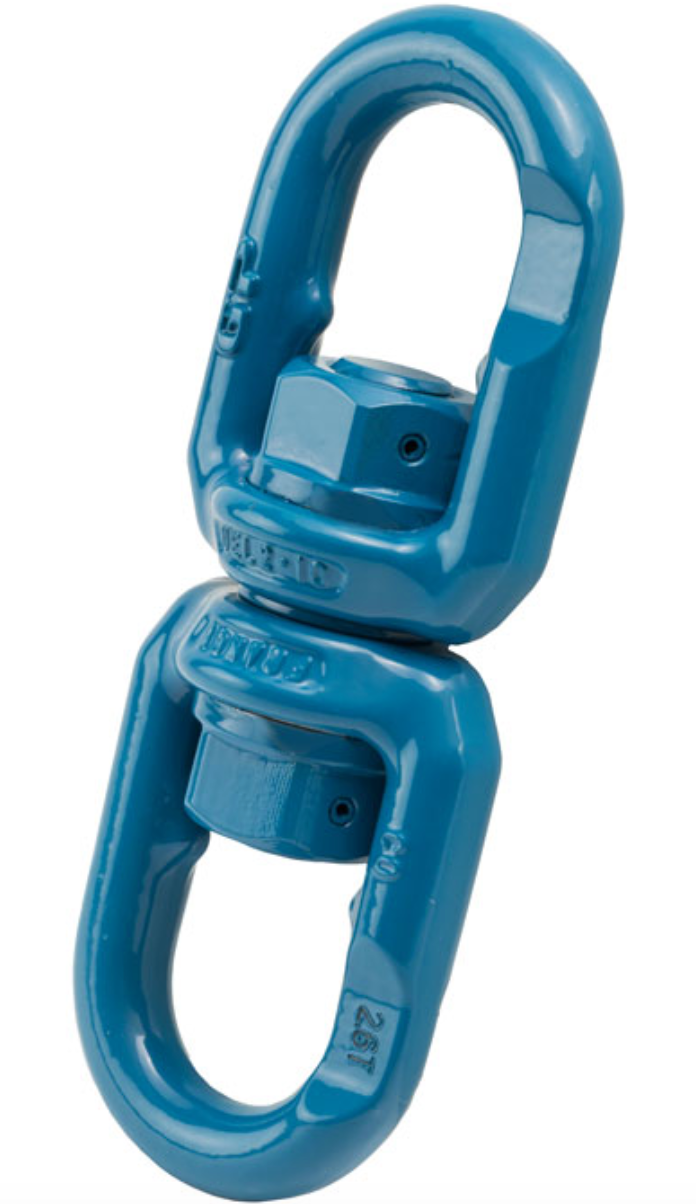

Green Pin Grade 10 Needle Bearing Swivel Eye/Eye

  • Alloy steel, quenched and tempered.
  • Blue painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Temperature range -40ºC to +200ºC.
  • 2 needle roller thrust bearings for rotation under load.
  • Marked with CE, W.L.L, material grade, manufacturers ID, size, product ID mark and traceability code.
  • Certification available

              Spec

              SKU

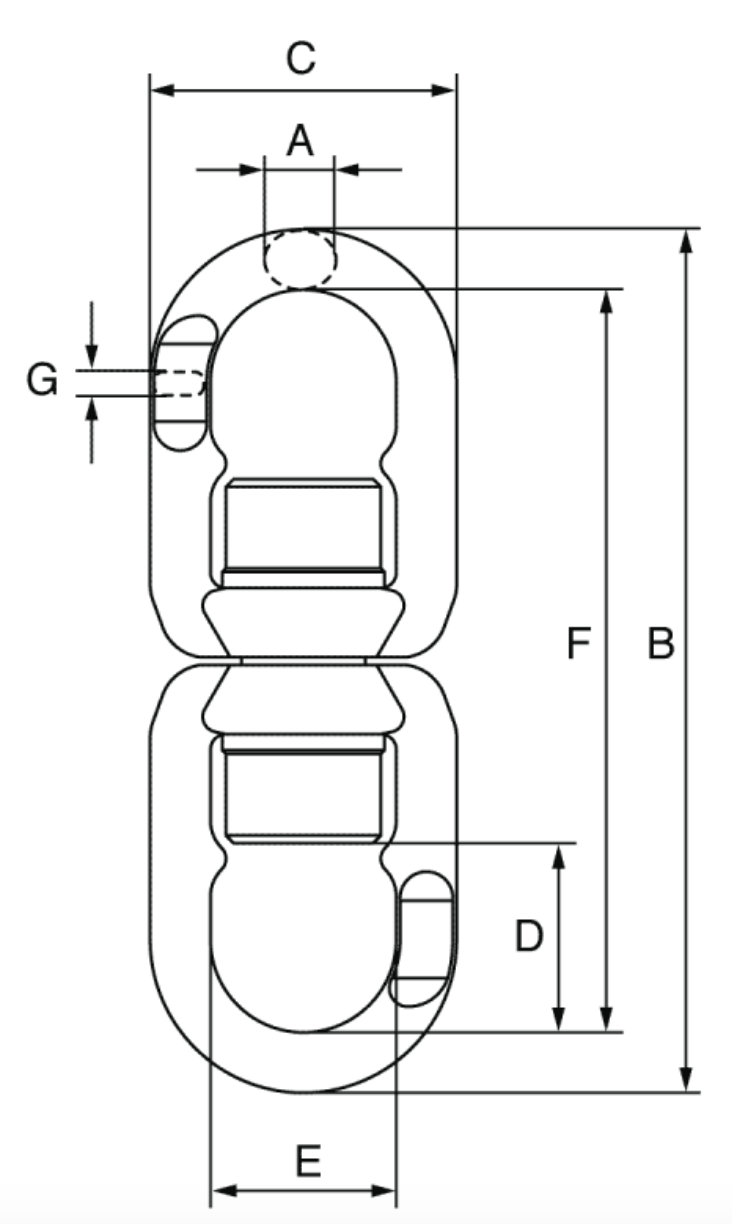

              Chain Dia W.L.L. A B C D E F G Weight
              mm t mm mm mm mm mm mm mm kgs
              286-819-1
              6 1.4 11 150 56 33 32 126 6 0.61
              286-819-2
              8 2.6 14 181 65 40 37 153 8 1.07
              286-819-3
              10 4 18 226 79 47 48 195 11 1.9
              286-819-4
              13 6.8 20 268 96 59 58 227 14 3.17
              286-819-5
              16 10.3 23 331 121 67 73 281 17 6.44
              286-819-6
              20 16 28 378 132 88 82 328 22 7.75
