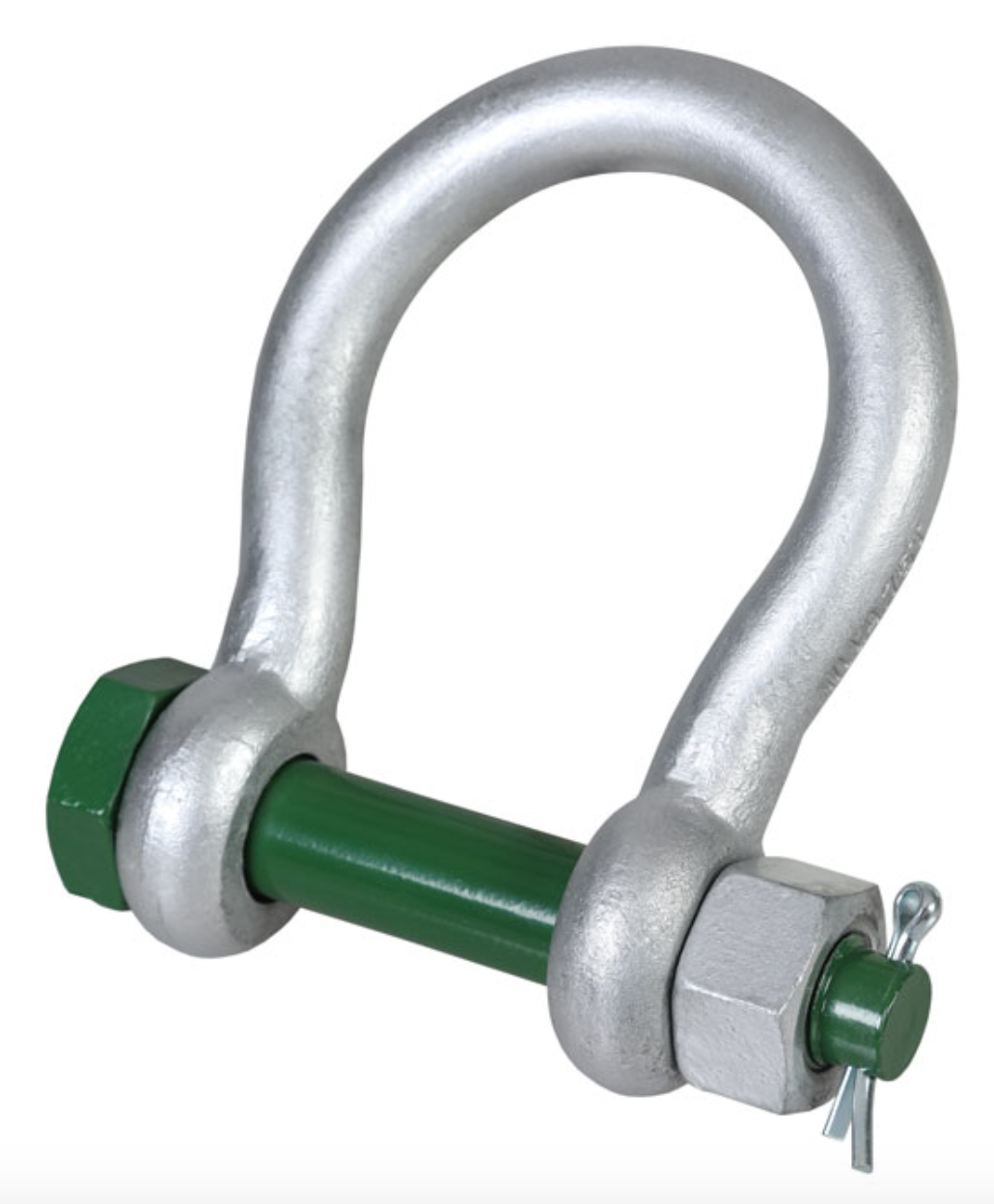

Green Pin BigMouth Grade 8 Bow Shackle with Safety Nut and Bolt Pin

£41.68

SKU :269-24-1

WLL

Green Pin BigMouth Grade 8 Bow Shackle with Safety Nut and Bolt Pin - GPWM

  • Grade 8 alloy steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Conforms to ASME B30.26.
  • Minimum breaking load is 6 times the W.L.L.
  • Temperature range -20ºC up to +200ºC.
  • Certification available  2.1    3.1    DoC
  • G-4263

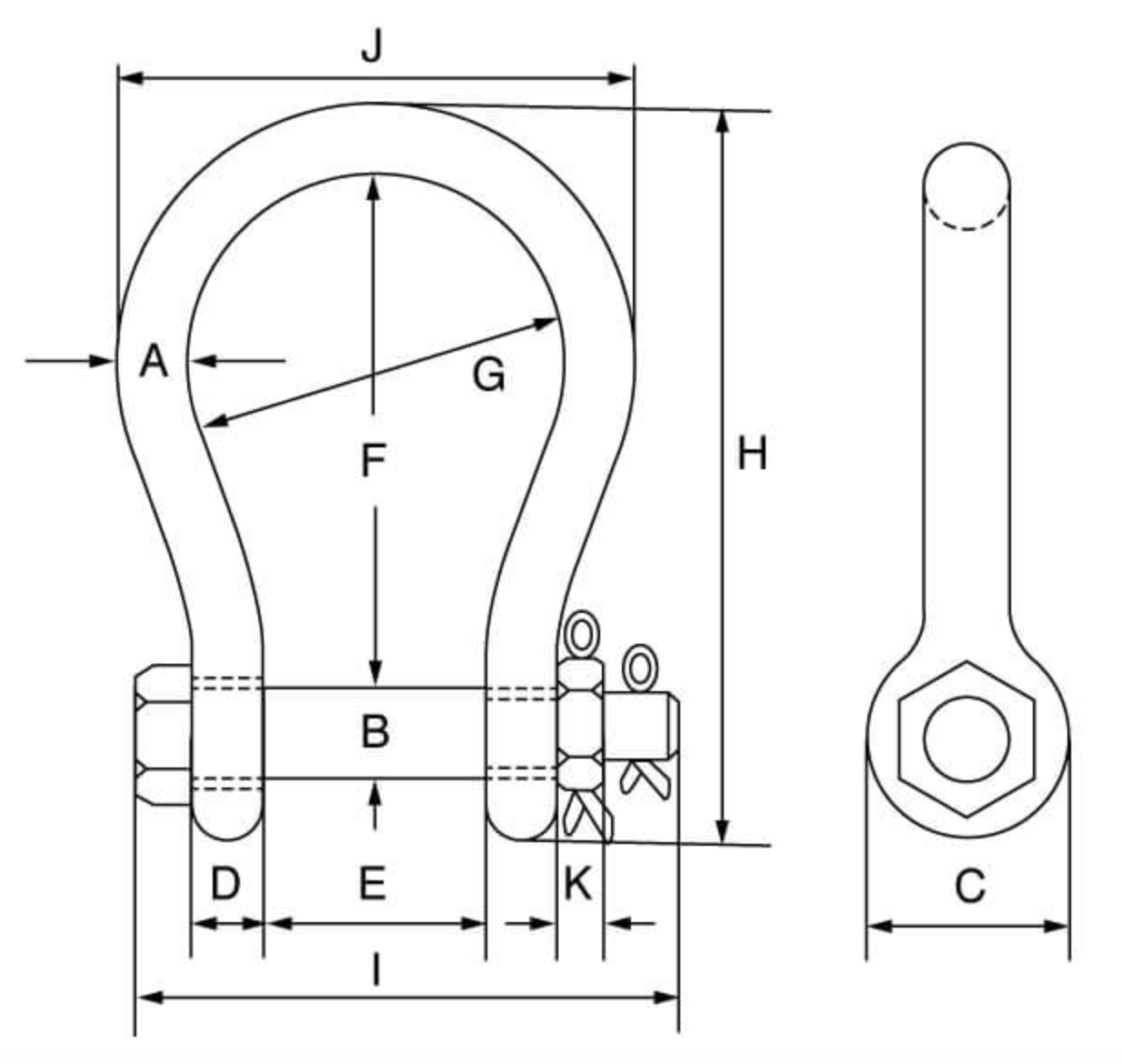

Spec

SKU Product Code W.L.L. A B C D E F G H I J K Weight
t mm mm mm mm mm mm mm mm mm mm mm kgs
269-24-1 GPWM4.75 4.75 22 25 52 22 63 112 88 173 157 132 22 2.08
269-24-2 GPWM6.5 6.5 25 28 59 25 75 135 105 204 183 155 25 3.14
269-24-3 GPWM8.5 8.5 28 32 66 28 82 148 115 225 205 171 27 4.36
269-24-4 GPWM9.5 9.5 32 35 72 32 90 162 126 248 224 190 30 5.95
269-24-5 GPWM12 12 35 38 79 35 100 180 140 274 245 210 33 7.87
269-24-6 GPWM16 16 38 42 89 38 106 216 159 319 248 235 19 12.5
269-24-7 GPWM25 25 45 50 104 45 127 248 175 370 296 265 23 18
269-24-8 GPWM30 30 50 57 11 50 146 273 207 411 332 307 26 25
269-24-9 GPWM55 55 65 70 145 65 165 314 213 487 389 343 32 48
269-24-10 GPWM75 75 75 83 163 75 184 330 254 537 455 420 39 70
