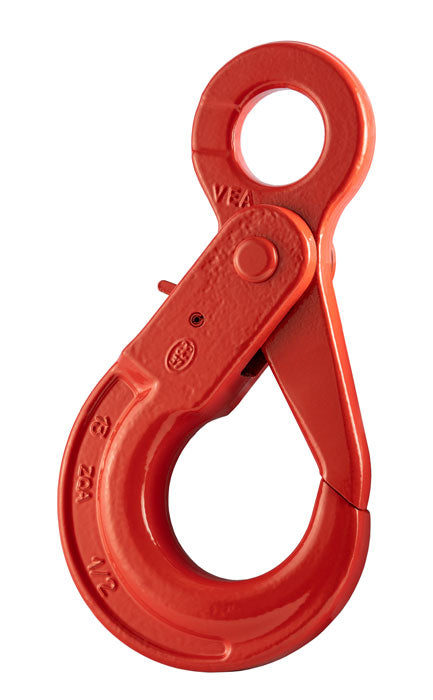

Grade 8 Eye Type Self Locking Hook to BS-EN 1677-3 (SNE Series)
£27.34
SKU :286-16-1
- Alloy steel, quenched and tempered.
- Red painted finish.
- Conforms to BS EN 1677-3.
- Temperature range: -40 °C to +400 °C (Reductions in W.L.L apply).
- Certification available 2.1 3.1 DoC
Spec

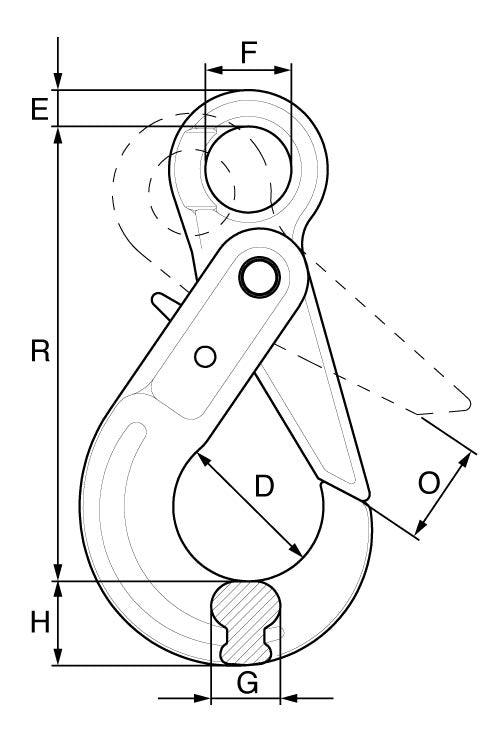

| Product Code | Chain Dia | Part No. | D | E | F | G | H | O | R |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| G8ESLH6 | 6 | SNE6 | 35 | 11 | 21 | 16 | 20.5 | 28 | 110 |
| G8ESLH8 | 7/8 | SNE7-8 | 43.5 | 12 | 27 | 20 | 26 | 34 | 136 |
| G8ESLH10 | 10 | SNE10 | 56 | 15 | 34.5 | 24.5 | 30 | 45 | 168.5 |
| G8ESLH13 | 13 | SNE13 | 69 | 20 | 40 | 34.5 | 40 | 51.5 | 205 |
| G8ESLH16 | 16 | SNE16 | 80 | 27 | 50 | 35.5 | 50 | 60 | 251.5 |
| Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|
| mm | t | kN | kN | kgs |
| 6 | 1.12 | 28.0 | 44.8 | 0.53 |
| 7/8 | 2 | 50.3 | 80.4 | 0.89 |
| 10 | 3.15 | 78.5 | 126 | 1.58 |
| 13 | 5.3 | 133 | 212 | 3.16 |
| 16 | 8 | 201 | 322 | 6.05 |
