KITO - Grade 10 2 Leg Master Link - DG2 Series to BS-EN 1677-4

Name: KITO - Grade 10 2 Leg Master Link - DG2 Series to BS-EN 1677-4
Brand: KITO Weissenfels
SKU: 286-216-1
Price: 31.20 GBP
Availability: InStock

KITO Weissenfels SKU: 286-216-1

1 1

KITO - Grade 10 2 Leg Master Link - DG2 Series to BS-EN 1677-4

KITO WEISSENFELS Grade 10 2 Leg Master Link – DG2 Series Grade... Read More

KITO Weissenfels SKU: 286-216-1

£31.20

Sale TODAY'S PRICE £31.20

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more kito weissenfels grade 10 chain slings and fittings

Description

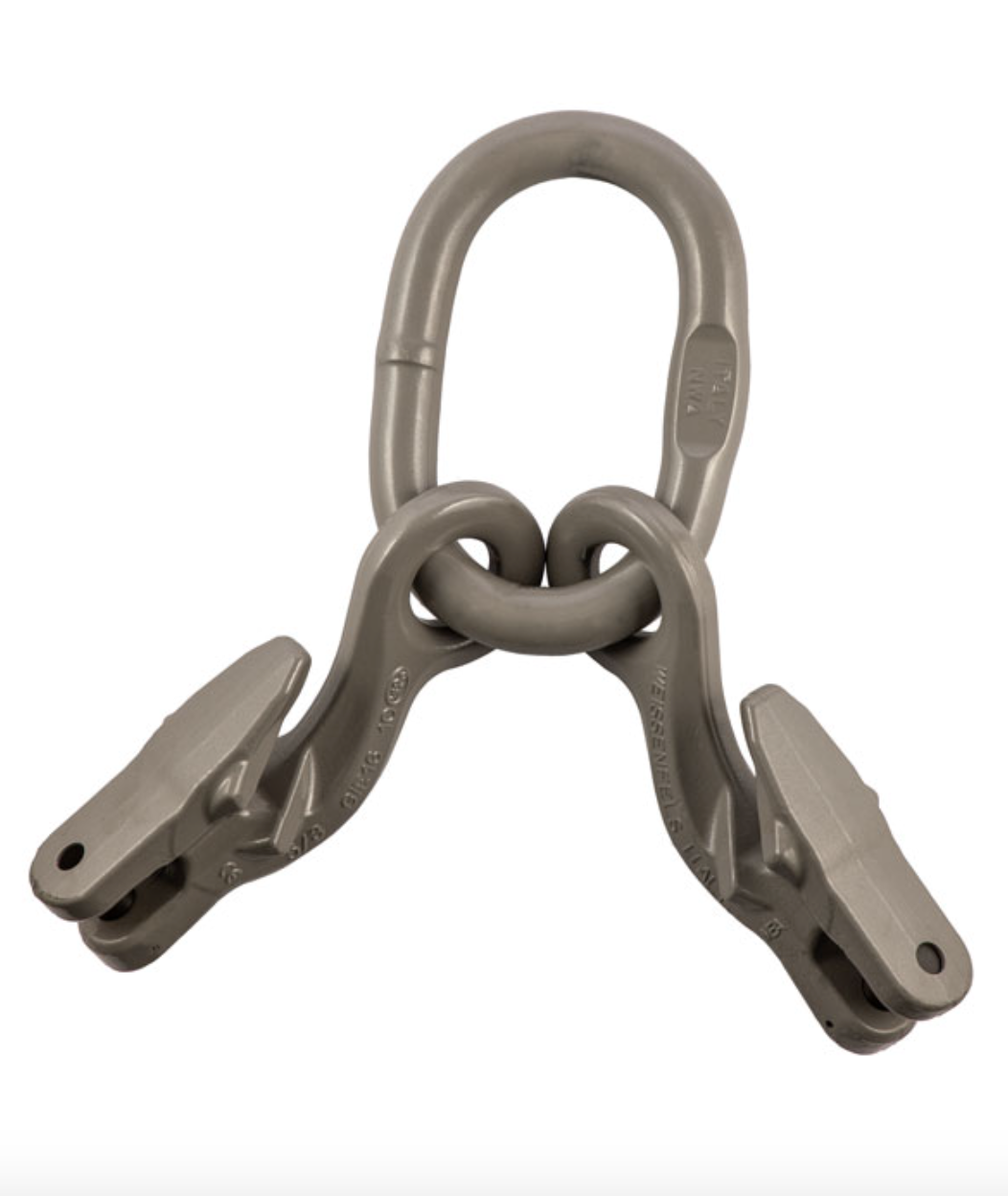

KITO WEISSENFELS Grade 10 2 Leg Master Link – DG2 Series

Grade 10 alloy steel, quenched and tempered.
Grey painted finish.
Meets the performance requirements of BS EN 1677-4 +25% of loads.
Suitable for use with grade 10 chains and wire/fibre rope slings.
Specially designed for direct clevis connection of hooks to chain.
No reduction in W.L.L. of sling when using the shortening hook.
Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
Certification - Declaration of Conformity

Spec

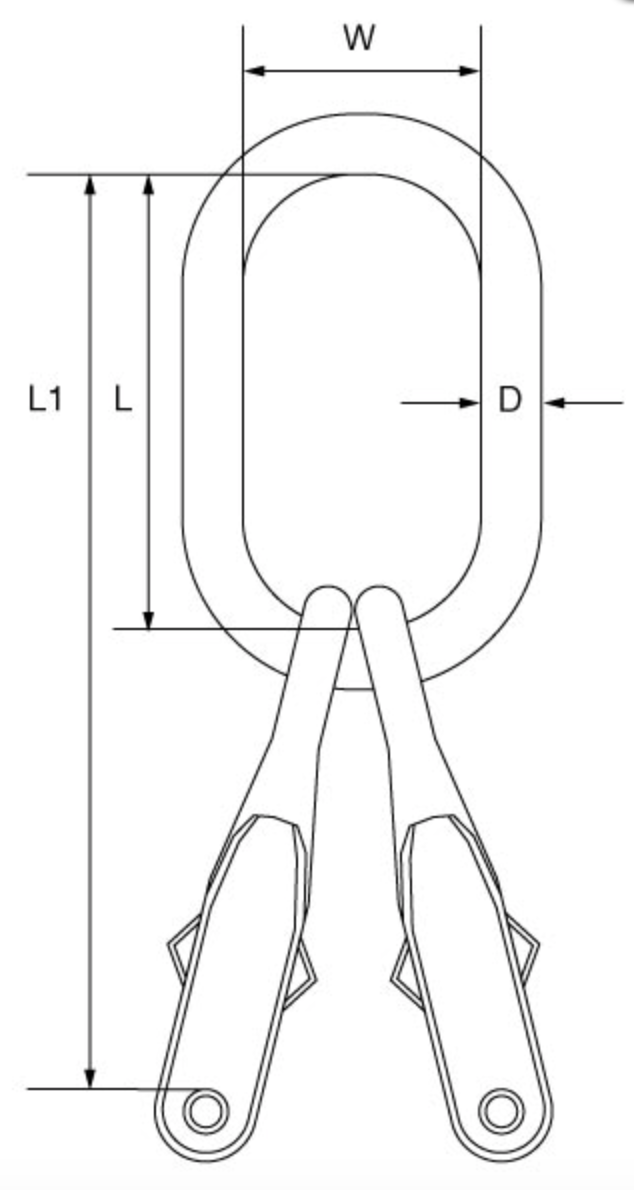

SKU	Part No	Chain Dia 2 leg	W.L.L.	M.P.F.	M.B.F.	D	L	L1	W	Weight
		mm	t	kN	kN	mm	mm	mm	mm	kgs
286-216-1	D13GI2	6	2	49	78.5	13	110	198	60	0.88
286-216-2	D18GI2	7/8	3.55	87	139	19	135	252	75	2.15
286-216-3	D22GI2	10	5.6	137	220	23	160	308	90	4
286-216-4	D26GI2	13	9.5	233	373	27	180	365	100	7.64
286-216-5	D32GI2	16	14	343	549	33	200	432	110	13.1
