KITO - Grade 10 Eye Grab Hook to BS-EN 1677-1
KITO Weissenfels SKU: 286-222-1
KITO WEISSENFELS Grade 10 Eye Grab Hook Grade 10 alloy steel, quenched and tempered. Grey painted finish. Meets the performance requirements of... Read More
Regular price
£7.62
Regular price
Sale
Sale price
TODAY'S PRICE
£7.62
Unit price
per
In stock
StockTax included.
Shipping calculated at checkout.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description

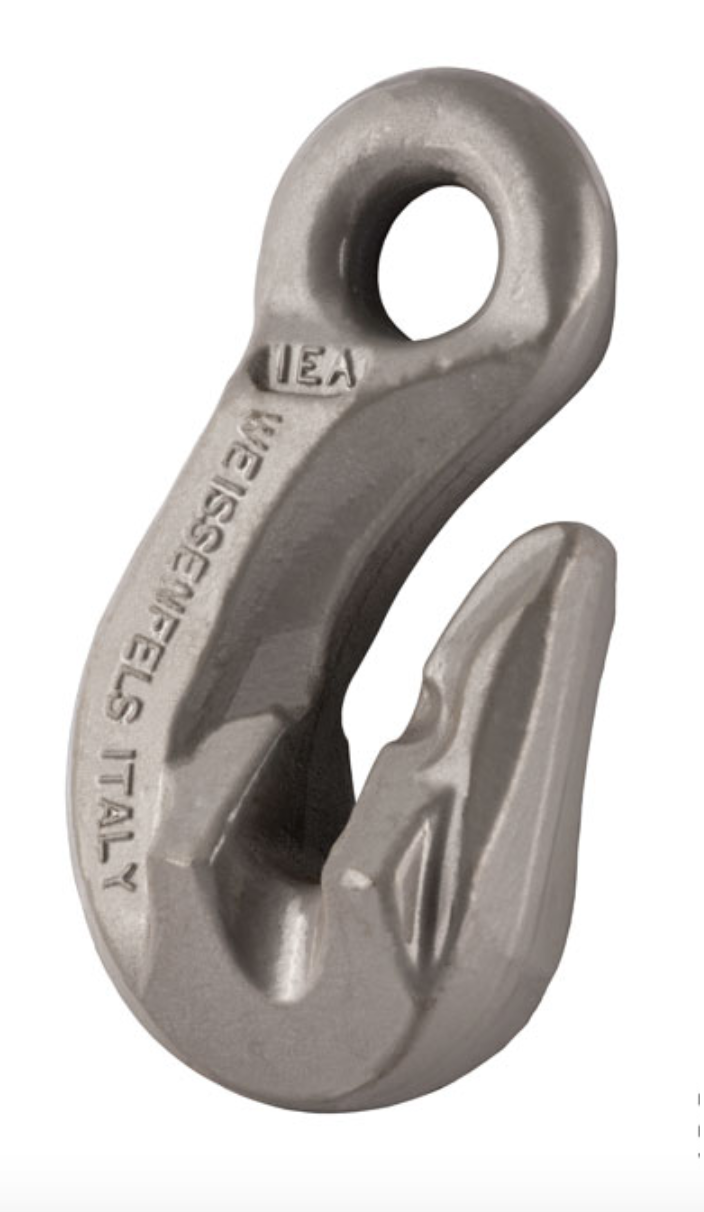

KITO WEISSENFELS Grade 10 Eye Grab Hook
- Grade 10 alloy steel, quenched and tempered.
- Grey painted finish.
- Meets the performance requirements of BS EN 1677-4 +25% of loads.
- No reduction in W.L.L of the chain sling capacity if used as a shortening device.
- Marked with material grade, manufacturers ID, size, product ID mark and traceability code.
- Certification - Declaration of Conformity
Specification
| SKU |

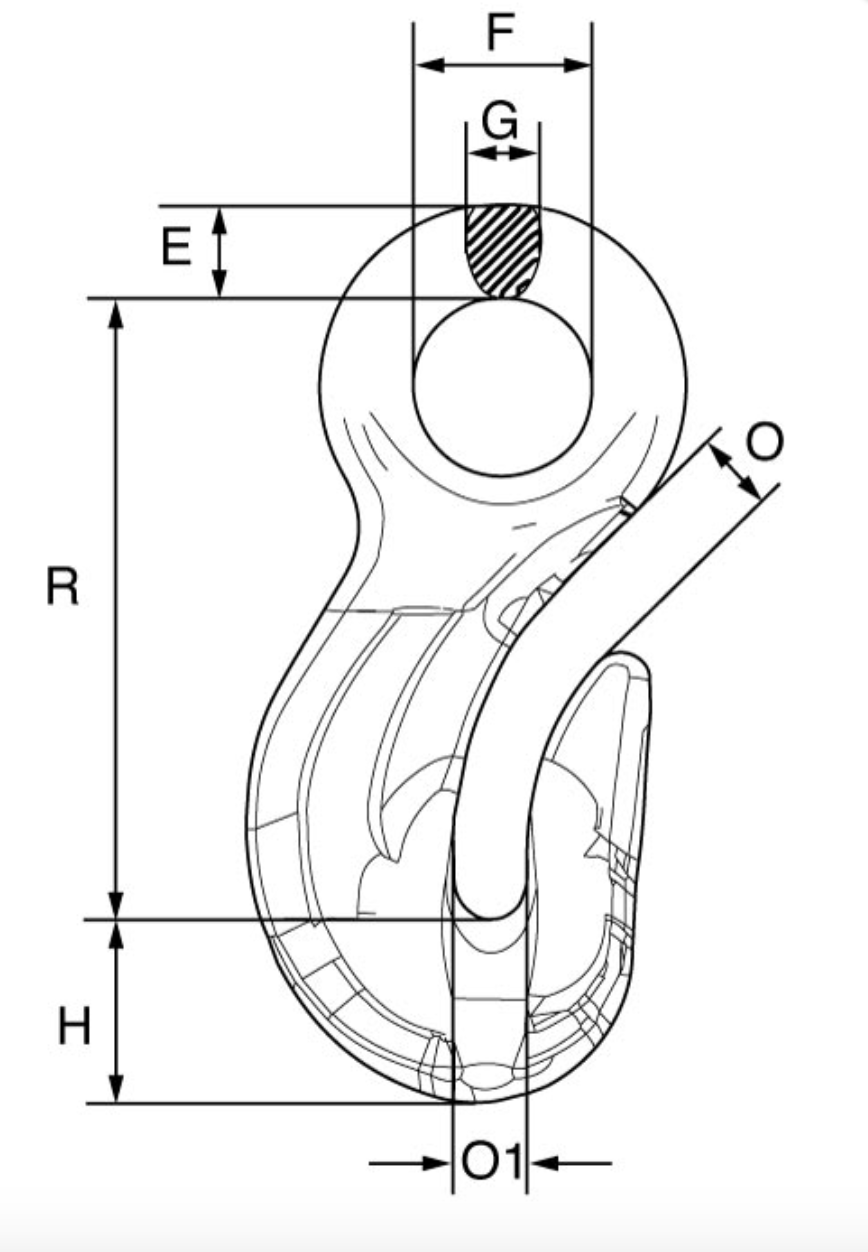

Part No. | Chain Dia | E | F | G | H | O | O1 | R |
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 286-222-1 |
GSE6 | 6 | 10.5 | 18 | 8 | 18 | 8.5 | 8 | 63.5 |
| 286-222-2 |
GSE7-8 | 7/8 | 13.5 | 24 | 10 | 24.5 | 9.5 | 9 | 83 |
| 286-222-3 |
GSE10 | 10 | 16 | 31 | 13 | 29.5 | 14 | 13.5 | 106 |
| 286-222-4 |
GSE13 | 13 | 20 | 38 | 16 | 39 | 16.5 | 15.5 | 132 |
| 286-222-5 |
GSE16 | 16 | 27 | 48 | 21.5 | 46 | 21.5 | 20 | 166 |
Technical Data
| SKU | Chain Dia | W.L.L. | M.P.F. | M.B.F. | Weight |
|---|---|---|---|---|---|
| mm | t | kN | kN | kg | |
| 286-222-1 | 6 | 1.4 | 35.3 | 56.6 | 0.23 |
| 286-222-2 | 7/8 | 2.5 | 62.8 | 100 | 0.52 |
| 286-222-3 | 10 | 4 | 98.2 | 157 | 1 |
| 286-222-4 | 13 | 6.7 | 166 | 265 | 2.1 |
| 286-222-5 | 16 | 10 | 251 | 402 | 3.95 |
Downloads
Product Questions & Answers
Product Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
KITO - Grade 10 Clevis Sling Hook c/w Safety Catch to BS-EN 1677-2
Regular price
From £15.86
Regular price
Sale price
£15.86
Unit price
per

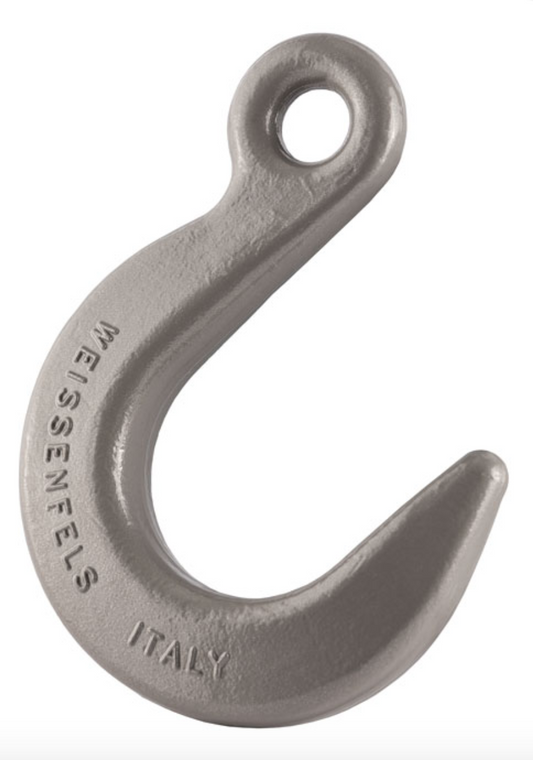

KITO - Grade 10 Eye Foundry Hook to BS-EN 1677-1
