Goliath 3N1 Hand Winch 470kg (151-9-1)

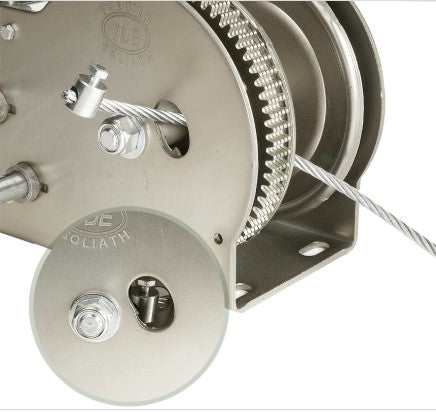

Goliath N Range of Pulling Winches with Ratchet Ref: 151-9

by Goliath
£33.26

SKU :151-9-1

Model
Capacity

Goliath N Range of Pulling Winches with Ratchet Ref: 151-9

• Winches only for pulling applications (0% incline or load independently secured)
• Reversible ratchet 3 positions except 3N1 (2 positions)
• Wide range, 1 to 3 speeds
  1. 3N1, 5N1, 7N1 & 9N1 - 1 Speed
  2. 16N2, 16N2F - 2 Speed
  3. 25N3F - 3 Speed
• Surface treatment : zinc plated
• Pulling capacity from 470kg up to 2 700kg
• Fixed Handle on 3N1, 5N1, 7N1 & 9N1
• Removable handle on 16N2, 16N2F and 25N3F
• Speed reducing brake on 16N2F and 25N3F

    *Important :

    These winches are neither designed according
    to EC standard nor for the transport of people or for lifting applications
    and must not be used for such purposes.
    Do not reverse or change the ratchet position until the load has been secured safely.
    Do not come with safety brake
    Like any other ratchet winch on the market, the N series cannot be labelled CE.
    Attention: any pulled or lifted load must be secured by another device while operating (except on a horizontal surface).

     Spec

    **Warning: These winches are not designed according to EC standard
                        Do not come with safety brake
      Model
      Ref
      Pulling Capacity
      Handle
      Brake
      Cable 1 Ø (mm) / length (m)

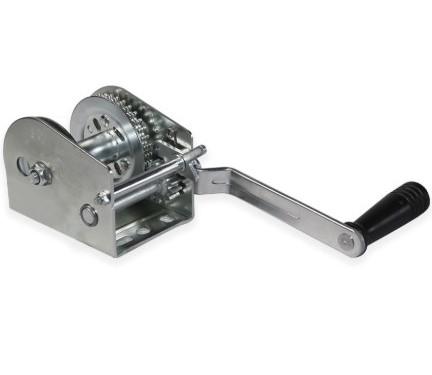

      Goliath 3N1
      151-9-1
      470kg
      		 Fixed
      No
      ø3/22m

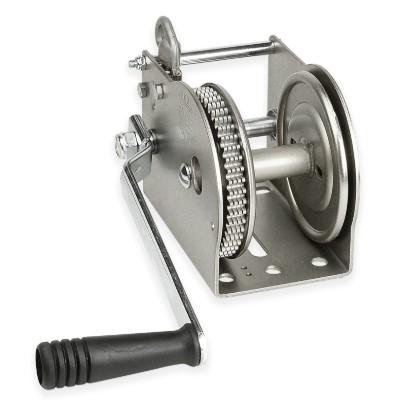

      Goliath 5N1
      151-9-2
      596kg
      		 Fixed
      No
      ø5/17m

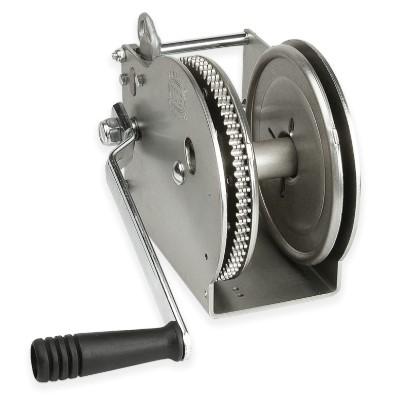

      Goliath 7N1
      151-9-3
      723kg
      		 Fixed
      No
      ø5/32m

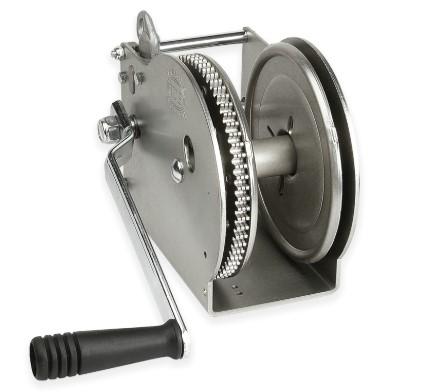

      Goliath 9N1
      151-9-4
      894kg
      		 Fixed
      No
      ø6/21m

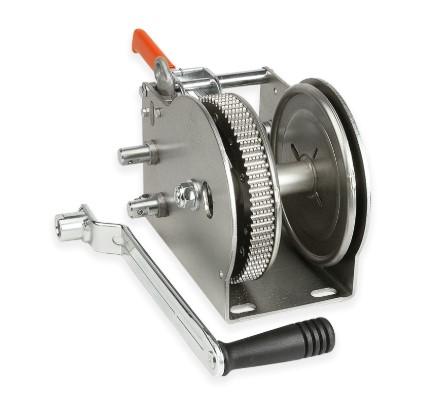

      Goliath 16N2F
      151-9-5
      1556kg
      		 Removable
      No
      ø7/14m
      Goliath 16N2F
      151-9-6
      1556kg
      		 Removable
      Speed reducing brake
      ø7/14m

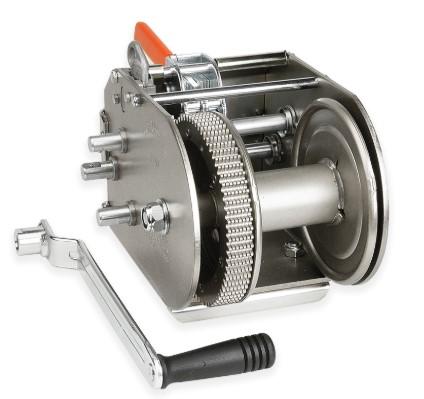

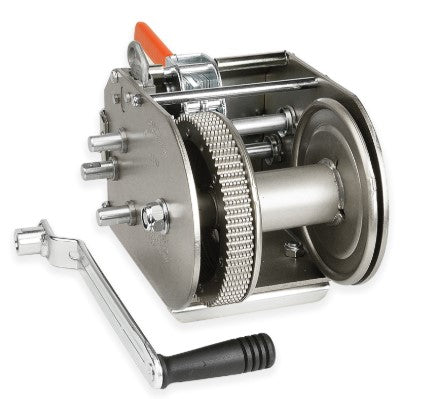

      Goliath 25N3F
      151-9-7
      2741kg
      		 Removable
      Speed reducing brake
      ø8/14m
