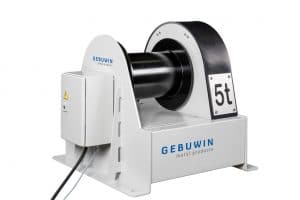

GEBUWIN 400v - 3000kg - 7500kg Low Speed Electric Worm Gear Winch

GEBUWIN - LS 3000 - 7500 Low Speed Electric Worm Gear Winch Ref: 156-26

This electric winch is designed to pull and lift (fragile) loads with a low speed (0,3 – 0,5 m/min). Normal electric winches have a speed between 3 – 8 m/min, for specific (fragile) loads this can be too quick. Because of the low speed this winch is available in in both 400V and 230V for all capacities. Whereas normal winches above 3T are only available in 400V.

Last but not least, the price of these low speed winches is very competitive.

Product details

• Robust and safe electric winch
• Suitable for pulling and hoisting fragile loads
• Standard voltage 400V (available in 230V)
• In compliance with EN 14492
• Protection classification electric IP54 / mechanical IP54
• Electric insulation class F
• Operation mode S3
• Mechanical overload protection and thermal protection electric motor

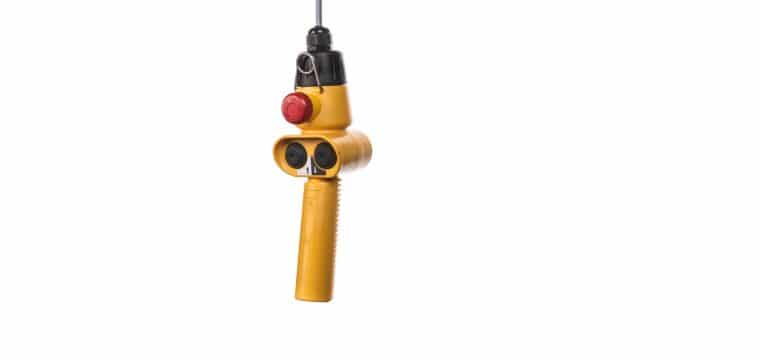

• Low voltage (24V) pendant control with 2 m cable
• Including 2 m power cable with 16A CEE plug

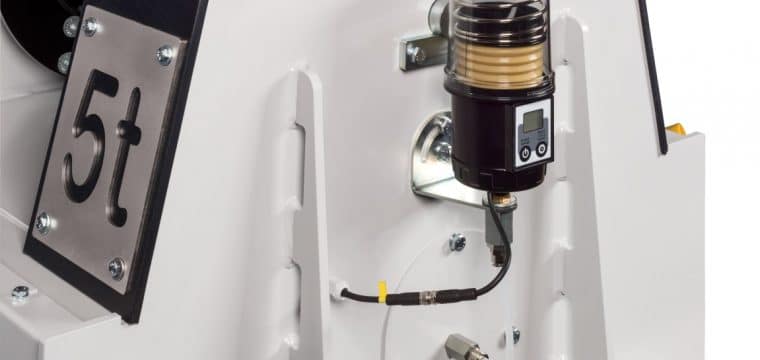

• Automatic grease system
• Paint thickness is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M

Options

• Limit switch (required for hoisting applications)
• Grooved drum
• Multiple cable drum compartments
• 230V – 50 Hz
