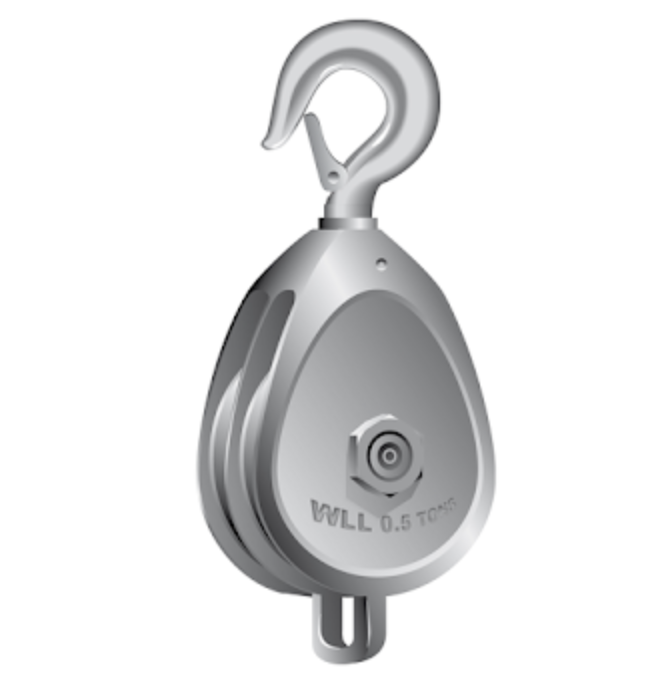

Galvanised Malleable Iron Block Swivel Hook

by Viper
£24.24

SKU :286-537-1

No of Wheels
Size/Rope Fibre Diameter
Galvanised Malleable Iron Block Swivel Hook - GMIBH
  • Galvanised malleable iron body.
  • Hot dipped galvanised finish.
  • Fitted with plain bore as standard with grey iron sheave.
  • Also available with steel sheave and bronze brush.
  • Marked with CE, W.L.L, size and rope.
  • Certification available  DoC
  • For use with fibre rope.



      Spec

      Size

      Fibre Rope

      Dia

      Single Sheave Double Sheave Treble Sheave Fibre Rope Dia
      inch mm SKU Product Code W.L.L. t Weight kgs SKU Product Code W.L.L. t Weight kgs SKU Product Code W.L.L. t Weight kgs mm
      3 12 286-537-1 GMIBHS3 0.2 0.9 286-537-10 GMIBHD3 0.4 1 286-537-20 GMIBHT3 0.6 1.9 12
      4 16 286-537-2 GMIBHS4 0.4 1.5 286-537-11 GMIBHD4 0.9 2 286-537-21 GMIBHT4 1 2.6 16
      5 18 286-537-3 GMIBHS5 0.5 2.2 286-537-12 GMIBHD5 1.1 3.3 286-537-22 GMIBHT5 1.5 5 18
      6 24 286-537-4 GMIBHS6 1 4 286-537-13 GMIBHD6 2 5.5 286-537-23 GMIBHT6 3 7 24





       Duct rod data sheetProduct data sheet (COMING SOON)
