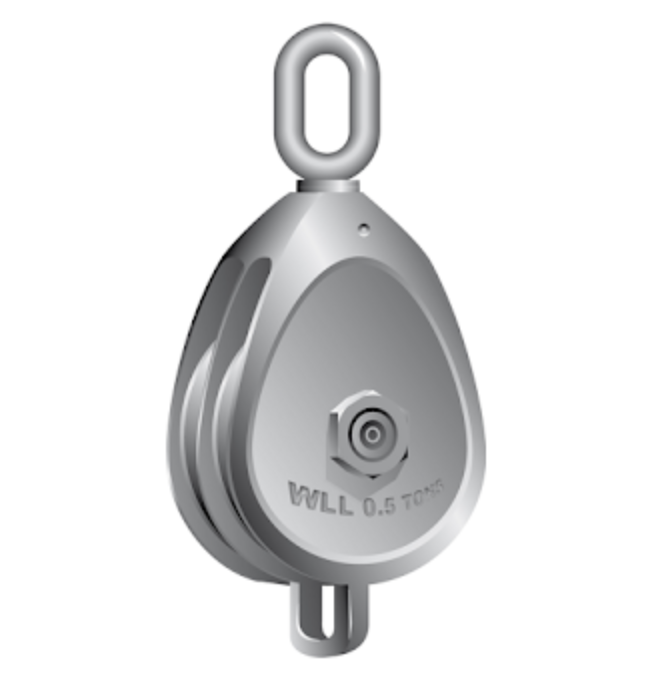

- Galvanised malleable iron body.
- Hot dipped galvanised finish.
- Fitted with plain bore as standard with grey iron sheave.
- Also available with steel sheave and bronze brush.
- Marked with CE, W.L.L, size and rope.
- Certification available
- For use with fibre rope.
Spec
Size | Single Sheave | Double Sheave | Treble Sheave | Fibre Rope Dia | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
inch | SKU | Product Code | W.L.L. t | Weight kgs | SKU | Product Code | W.L.L. t | Weight kgs | SKU | Product Code | W.L.L. t | Weight kgs | mm |
3 | 286-538-1 | GMIBES3 | 0.2 | 0.9 | 286-538-10 | GMIBED3 | 0.4 | 1 | 286-538-20 | GMIBET3 | 0.6 | 1.9 | 12 |
4 | 286-538-2 | GMIBES4 | 0.4 | 1.5 | 286-538-11 | GMIBED4 | 0.9 | 2 | 286-538-21 | GMIBET4 | 1 | 2.6 | 16 |
5 | 286-538-3 | GMIBES5 | 0.5 | 2.2 | 286-538-12 | GMIBED5 | 1.1 | 3.3 | 286-538-22 | GMIBET5 | 1.5 | 5 | 18 |
6 | 286-538-4 | GMIBES6 | 1 | 4 | 286-538-13 | GMIBED6 | 2 | 5.5 | 286-538-23 | GMIBET6 | 3 | 7 | 24 |
