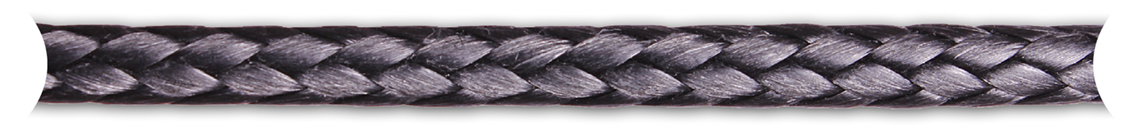

Dyneema Cord (Per 100m Coil)

£100.00
SKU 168-100-2
Size
Coil

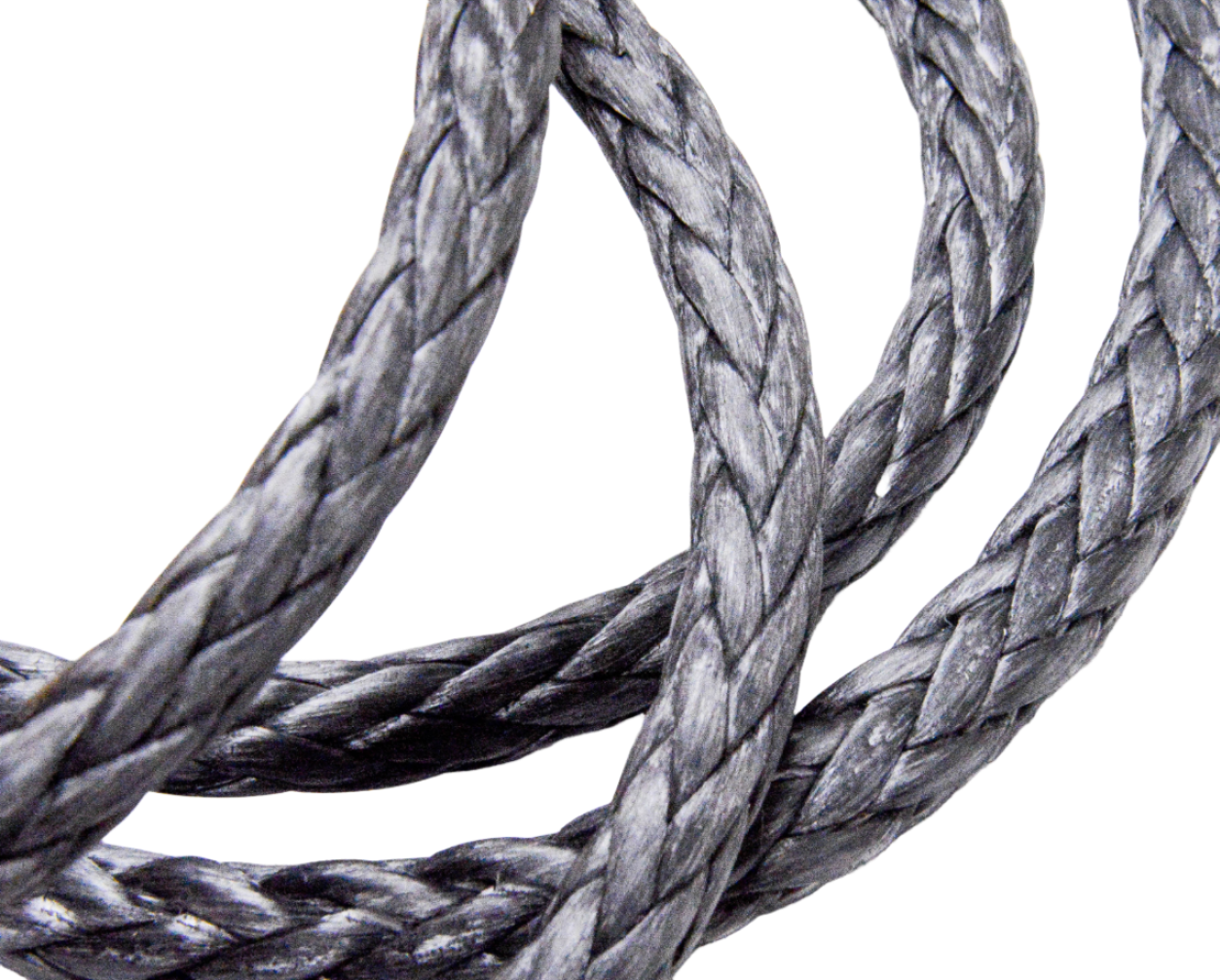

The 12 strand construction is used to ensure that the maximum strength is delivered through the rope providing a high diameter for breaking load ratio. 100% Dyneema® SK78 delivers ultimate strength for diameter.

** THIS PRODUCT IS OFFERED PER 100 METRE COIL **


Features & BENEFITS
• 12 Strand construction
• Very high strength to weight ratio
• Treated with specialised coating
• Very long lasting
• Stronger than steel
• Safer than steel in operation

Spec

Specifications  Core  Cover
Construction  12 strand  n/a
Material   Dyneema® SK78 n/a
Specific gravity  0.98  n/a
Resistance to acid  Very Good  n/a
Resistance to alkali   Very Good  n/a
Resistance to UV   Very Good  n/a
Resistance to heat  Poor  n/a
Extension at 50% 2.2%  n/a

Tech Area



Dia.
(mm)
Weight (kg/100) Breaking
Strain (kg)
2 0.4 530
3 0.5 1020
4 0.7 1800
5 0.9 2600
6 1.4 3000
8 2.8 5000
