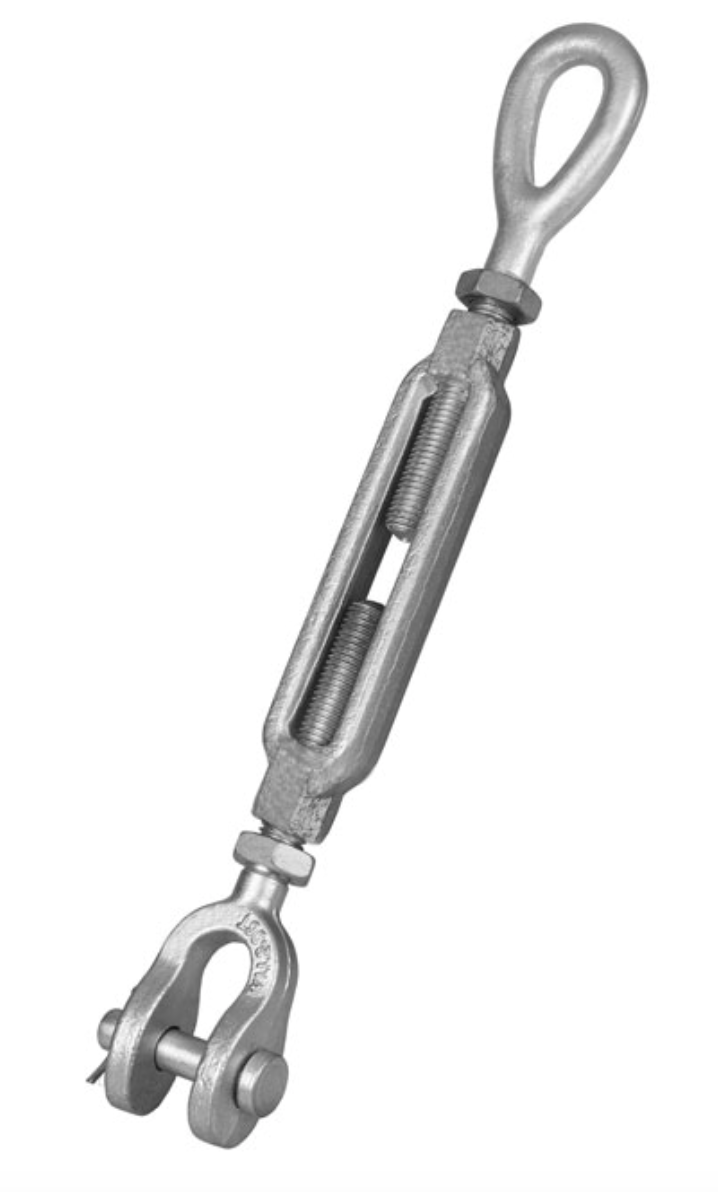

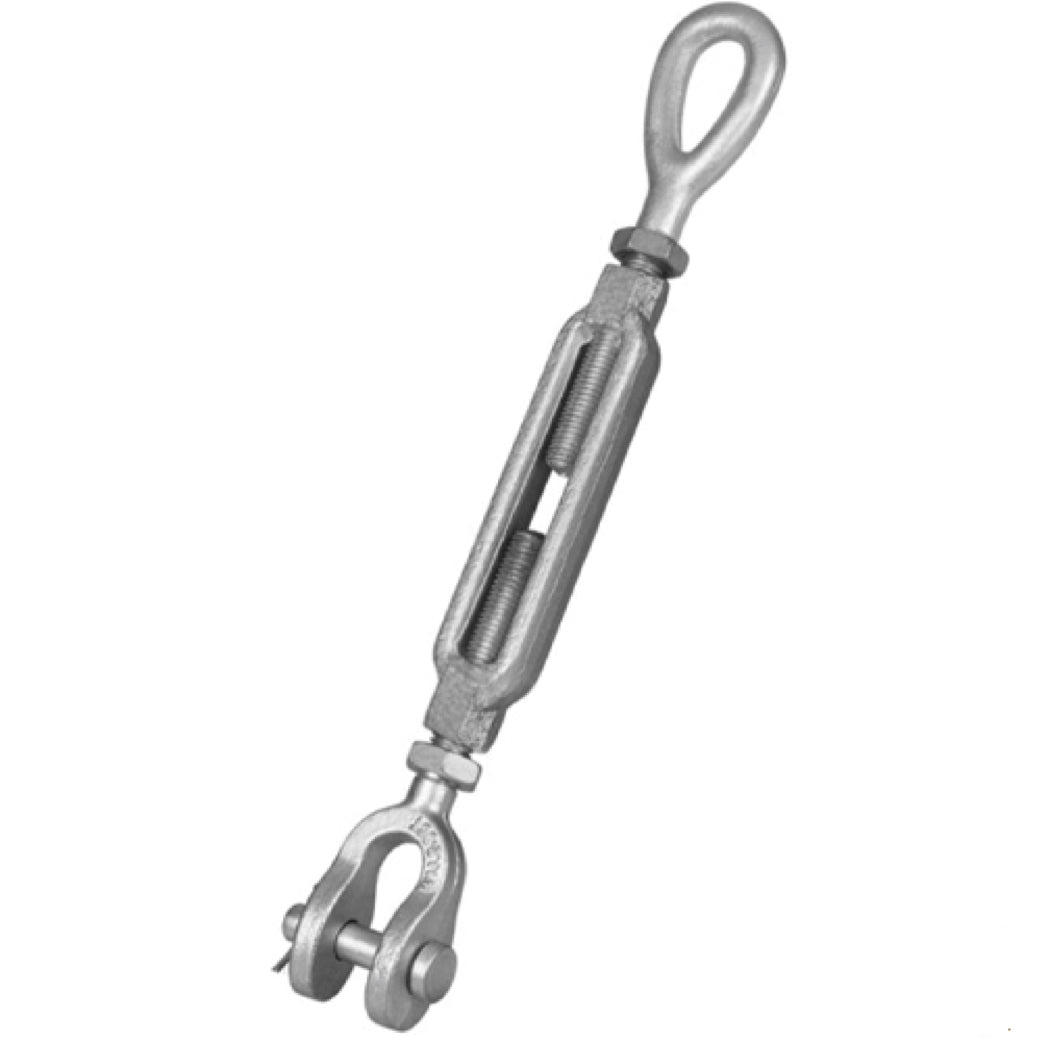

Drop Forged Turnbuckle Jaw/Eye

by GT
£3.45

SKU :286-902-1

Size/Take Up/W.L.L.

Drop Forged Turnbuckle Jaw/Eye - US Style - TBJE

  • Drop forged, high tensile steel.
  • Hot dipped galvanised finish.
  • Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
  • Temperature range -20ºC up to +200ºC.
  • Proof load tested to 2.5 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • UNC Threads.
  • All items available with lock nuts.
  • Up to 5/8″ with safety bolt, 3/4″ and above with cotter pins.
  • Marked with CE, W.L.L, manufacturers ID, size, traceability code and L/R.
  • Certification available DoC



          Spec

          Product Code Size Take Up W.L.L. A B D E F R S C O Weight
          inches inches t mm mm mm mm mm mm mm mm mm kgs
          TBJE6X4 1/4 4 0.23 120 102 11.5 15.75 7.5 20 8.5 215 307 0.14
          TBJE8X4.5 5/16 4 1/2 0.36 138 114 12.7 21.2 7.6 24 11.2 249 354 0.2
          TBJE10X6 3/8 6 0.54 180 152 13.7 21.5 9 28.5 13.5 308 460 0.34
          TBJE12X6 1/2 6 1 190 152 16 26.5 11 36.5 18 380 532 0.71
          TBJE12X9 1/2 9 1 267 229 16 26.5 11 36.5 18 456 685 0.85
          TBJE12X12 1/2 12 1 343 305 16 26.5 11 36.5 18 510 815 1
          TBJE16X6 5/8 6 1.59 203 152 21 33 14 45 22.5 398 550 1.17
          TBJE16X9 5/8 9 1.59 279 229 21 33 14 45 22.5 474 703 1.42
          TBJE16X12 5/8 12 1.59 355 305 21 33 14 45 22.5 550 855 1.67
          TBJE19X6 3/4 6 2.36 213 152 26 37.25 17.5 53 25.4 448 600 1.87
          TBJE19X9 3/4 9 2.36 289 229 26 37.25 17.5 53 25.4 524 753 2.22
          TBJE19X12 3/4 12 2.36 365 305 26 37.25 17.5 53 25.4 600 905 2.57
          TBJE19X18 3/4 18 2.36 517 457 26 37.25 17.5 53 25.4 752 1209 3.27
          TBJE22X12 7 12 3.27 374 304 31 42.75 20.5 60 32 630 934 3.77
          TBJE22X18 7/8 18 3.27 527 457 31 42.75 20.5 60 32 782 1239 4.7
          TBJE25X6 1 6 4.54 233 152 33 52 24 76 37 552 704 4.1
          TBJE25X12 1 12 4.54 385 305 33 52 24 76 37 704 1009 5.33
          TBJE25X18 1 18 4.54 537 457 33 52 24 76 37 856 1313 6.56
          TBJE25X24 1 24 4.54 690 610 33 52 24 76 37 1010 1620 7.83
          TBJE32X12 1.1/4 12 6.89 388 305 47 70.5 31 90 46 776 1081 9.1
          TBJE32X18 1.1/4 18 6.89 541 457 47 70.5 31 90 46 928 1385 10.94
          TBJE32X24 1.1/4 24 6.89 693 610 47 70.5 31 90 46 1080 1690 12.75
          TBJE38X12 1.1/2 12 9.71 403 305 47 70.5 31 103 53.8 838 1143 12.93
          TBJE38X18 1.1/2 18 9.71 555 457 57 70.5 37 103 53.8 990 1447 15.43
          TBJE38X24 1.1/2 24 9.71 708 610 57 70.5 37 103 53.8 1144 1754 17.97
          TBJE44X18 1.3/4 18 12.7 571 457 66 85 44 117 60.5 1076 1544 23.37
          TBJE44X24 1.3/4 24 12.7 724 610 66 85 44 117 60.5 1230 1840 26.91
          TBJE50X24 2 24 16.78 740 610 66.3 92 54 146 68 1400 2010 39.93
          TBJE63X24 2.1/2 24 27.22 795 610 78 110.8 60.5 165 79 1490 2100 70.96
          TBJE70X24 2.3/4 24 34.02 795 610 93.5 104.5 73 178 82.5 1562 2172 82.22
