Closed Body Rigging Screw Eye/Eye

by GT
£3.30

SKU :286-904-1

Diameter/W.L.L.

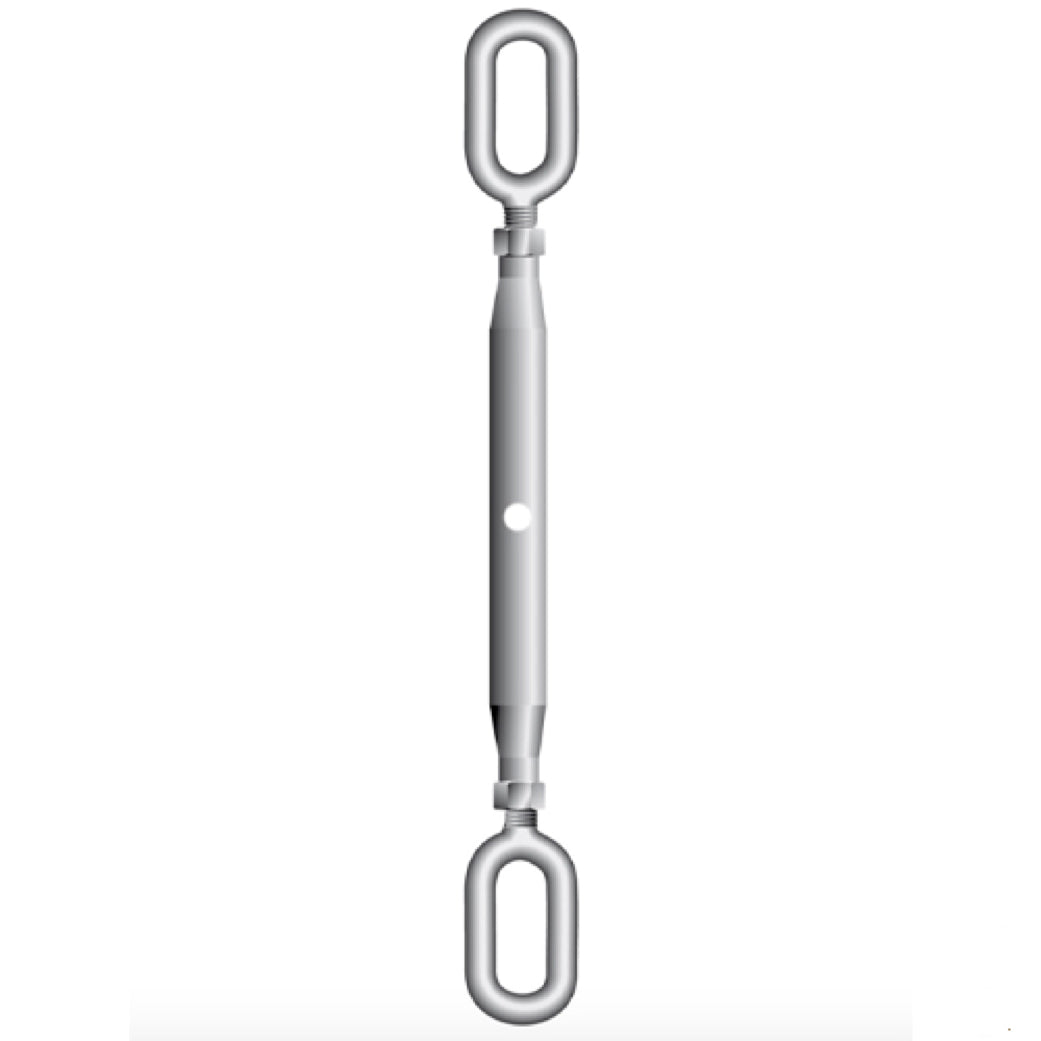

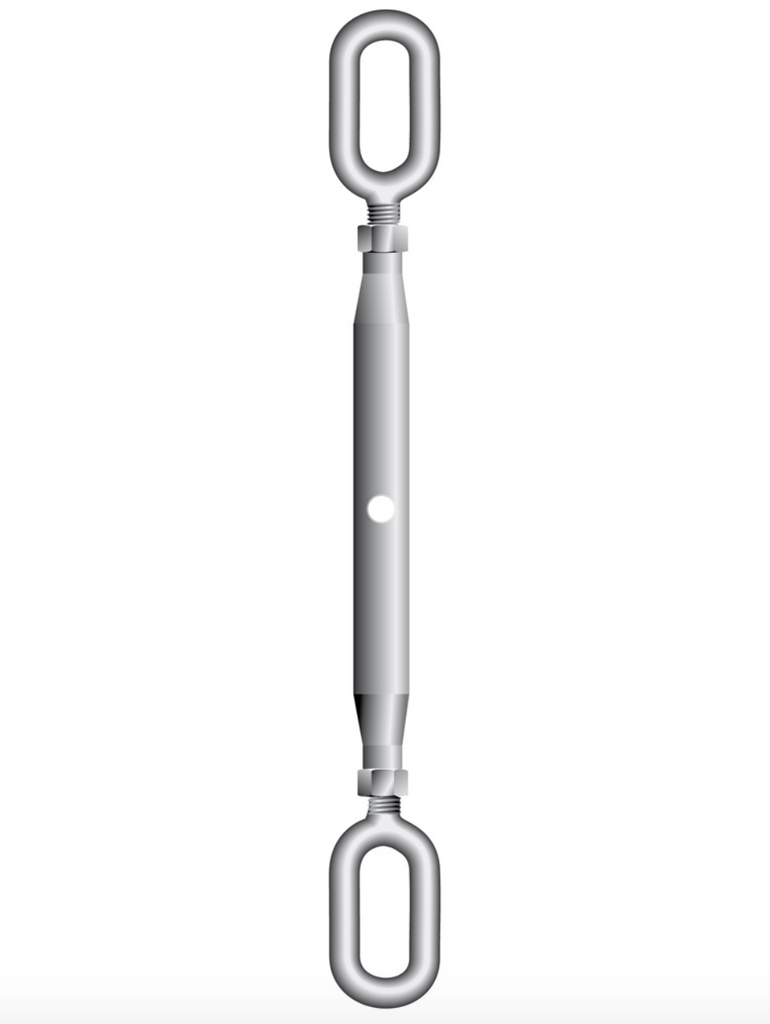

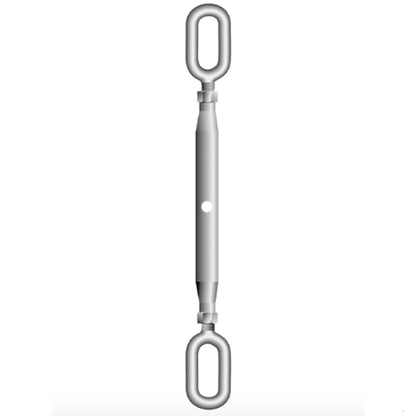

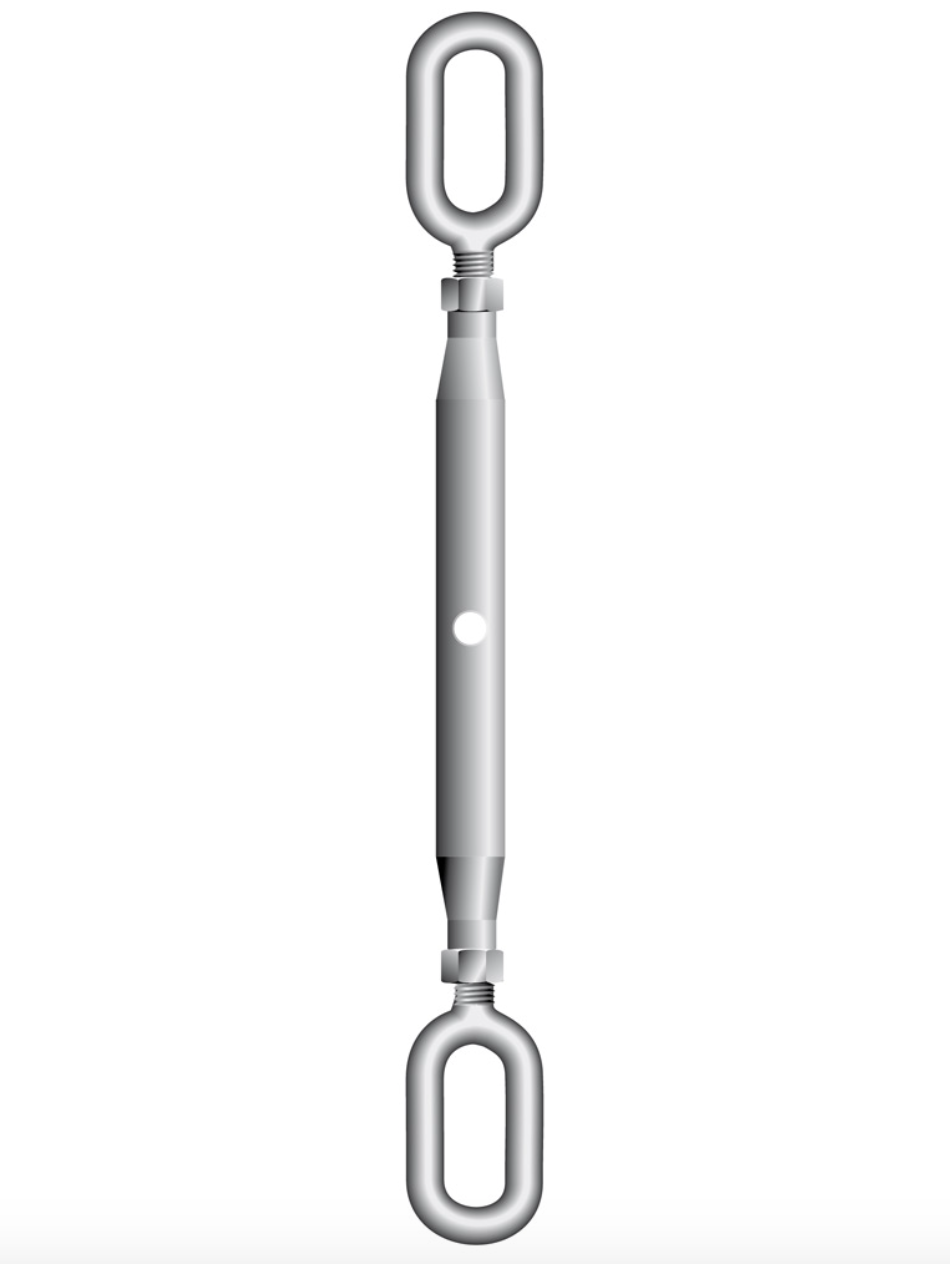

Closed Body Rigging Screw Eye/Eye - RSEE

  • Mild steel.
  • Hot dipped galvanised finish.
  • Proof load tested to 2 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • Metric Threads.
  • Marked with CE, W.L.L, manufacturers ID and traceability code.
  • Certification available DoC

        Spec

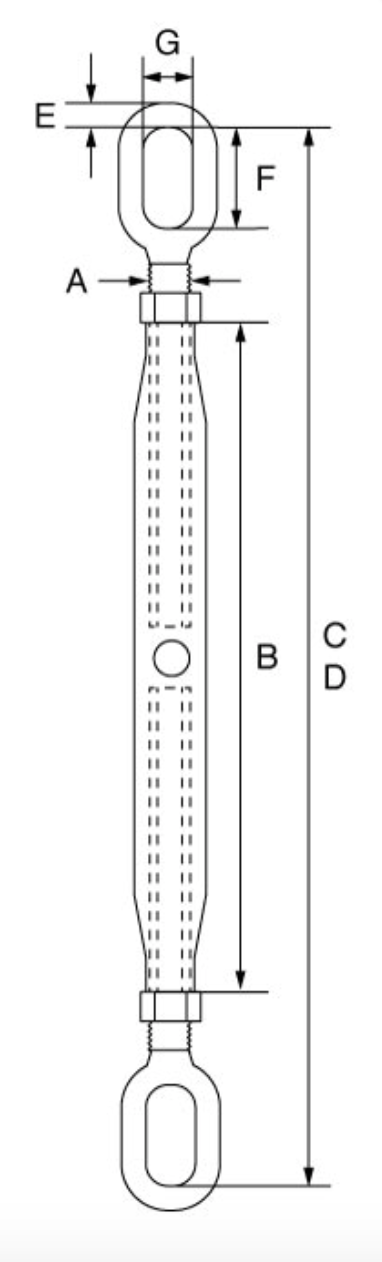

        SKU Product Code W.L.L. A B C D E F G Weight
        t mm mm mm mm mm mm mm kgs
        286-904-1 RSEE6 0.2 6 100 165 245 5.5 11 11 0.118
        286-904-2 RSEE8 0.32 8 108 178 261 6 12 12 0.19
        286-904-3 RSEE10 0.5 10 125 210 308 8.5 13 13 0.34
        286-904-4 RSEE12 0.7 12 195 325 484 11 30 15 0.76
        286-904-5 RSEE16 1.2 16 230 380 564 12 40 20 1.29
        286-904-6 RSEE20 1.5 20 270 455 673 16 50 24 2.38
        286-904-7 RSEE22 2.2 22 295 495 736 16 50 24 2.8
        286-904-8 RSEE24 3.2 24 325 545 806 19 56 28 3.87
        286-904-9 RSEE33 4.8 33 370 665 961 29 70 35 8.9
        286-904-10 RSEE39 6 39 400 725 1032 34 80 40 11.08
        286-904-11 RSEE45 8.5 45 400 760 1050 30 90 45 16.4
        286-904-12 RSEE48 11 48 400 820 1110 35 100 45 23

        Downloads

          Duct rod data sheetProduct data sheet
