Cartec Grade 6 Stainless Steel AISI 316L Short Link Chain

Name: Cartec Grade 6 Stainless Steel AISI 316L Short Link Chain
Brand: Cartec
SKU: 286-310-1
Price: 39.60 GBP
Availability: InStock

Cartec SKU: 286-310-1

1 2

Cartec Grade 6 Stainless Steel AISI 316L Short Link Chain

Short Link Stainless Steel Chain AISI 316L Grade 6 Grade 6, stainless steel, AISI 316L (1.4404) and duplex... Read More

Cartec SKU: 286-310-1

£39.60

Sale TODAY'S PRICE £39.60

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more cartec grade 6 stainless steel

Description

Short Link Stainless Steel Chain AISI 316L Grade 6

Grade 6, stainless steel, AISI 316L (1.4404) and duplex stainless steel (1.4462) ensuring maximum corrosion resistance.
Surface blasted, uniform smooth finish.
Factor of safety 4:1
Certification - EC Declaration of Conformity

** THIS ITEM IS SOLD BY THE METRE

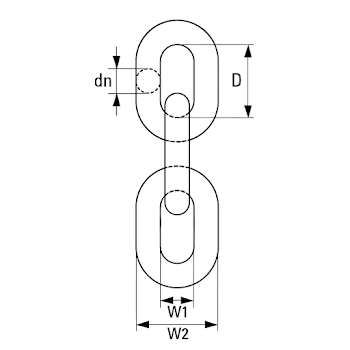

Spec

SKU	Dia	D	W1	W2
	mm	mm	mm	mm
286-310-1	6	18	7.8	22.2
286-310-2	7	21	9.1	25.9
286-310-3	8	24	10.4	29.6
286-310-4	10	30	13	37
286-310-5	13	39	16.9	48.1
286-310-6	16	48	20.8	59.2

Technical Data

SKU	Chain Dia	W.L.L.	M.B.F.	Tolerance	Weight
	mm	t	kN	mm	kgs/m
286-310-1	6	0.9	36	+/- 0.5	0.8
286-310-2	7	1.25	50	+/- 0.6	1.15
286-310-3	8	1.6	63	+/- 0.7	1.3
286-310-4	10	2.5	98	+/- 0.9	2.14
286-310-5	13	4.25	170	+/- 1.2	3.65
286-310-6	16	6.3	248	+/- 1.4	7.6
