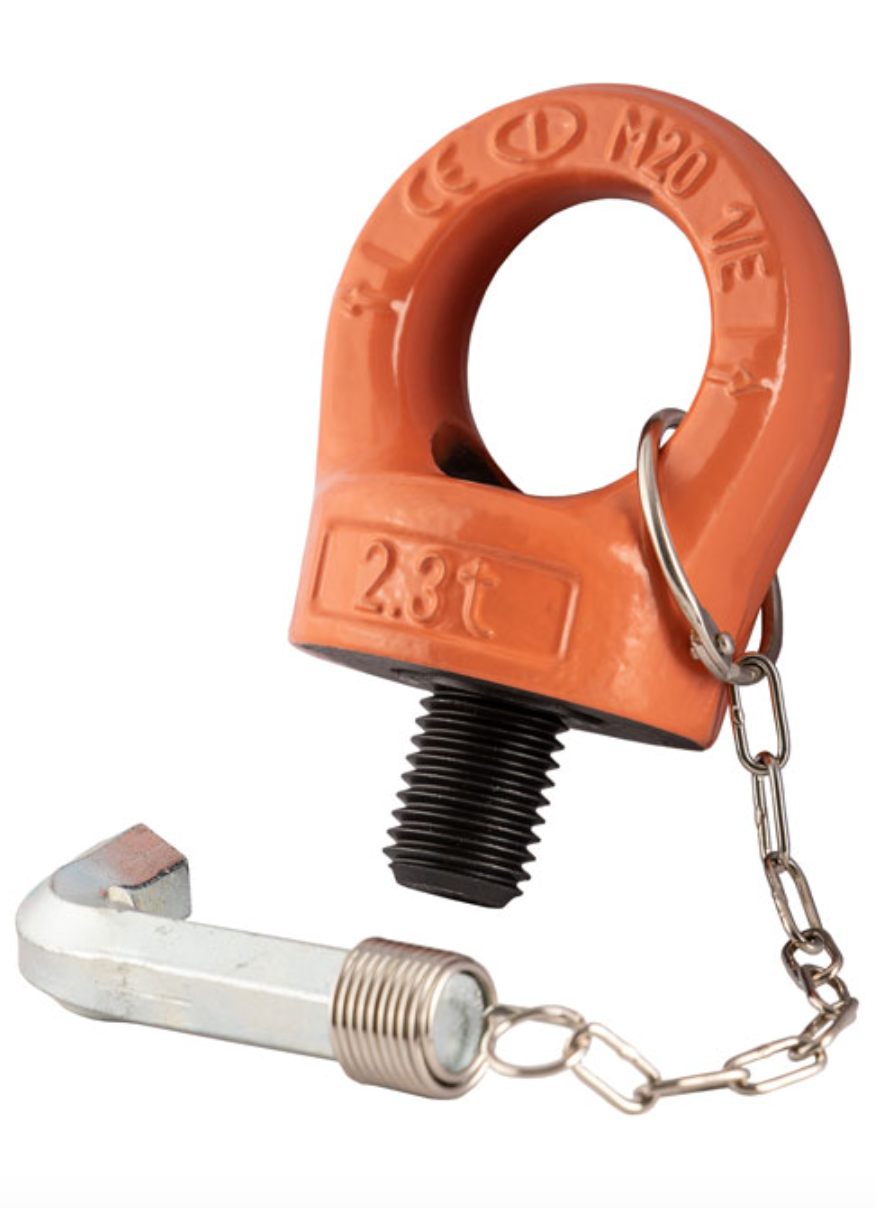

- Grade 10 alloy steel.
- Pink painted finish.
- Minimum breaking load is 4 times the W.L.L.
- Non standard threading and stem length available.
- Can be oriented at 360°.
- Captive screws.
- On the axial pull there can be variation of +/-5º with a 10% decrease in capacity.
- Not suitable for rotating under load.
- Full CAD support available upon request.
- Certification available
Spec
SKU | Product Code | D | L | W.L.L. | A | B | C | M |
---|---|---|---|---|---|---|---|---|
with key | mm | mm | t | mm | mm | mm | mm | |
286-616-1 | G10SEBK8 | M8 | 12 | 0.3 | 44.5 | 8 | 10 | 29 |
286-616-2 | G10SEBK10 | M10 | 16 | 0.4 | 44.5 | 8 | 10 | 29 |
286-616-3 | G10SEBK12 | M12 | 18 | 0.75 | 53.5 | 11 | 11 | 34 |
286-616-4 | G10SEBK16 | M16 | 24 | 1.5 | 56.5 | 13 | 14.5 | 39 |
286-616-5 | G10SEBK20 | M20 | 30 | 2.3 | 67 | 14 | 17 | 42 |
286-616-6 | G10SEBK24 | M24 | 36 | 3.2 | 80 | 18 | 19 | 52 |
286-616-7 | G10SEBK30 | M30 | 43 | 4.5 | 101 | 22 | 27 | 62 |
286-616-8 | G10SEBK36 | M36 | 54 | 7 | 125 | 37 | 38 | 80 |
286-616-9 | G10SEBK42 | M42 | 64 | 9 | 148 | 40 | 41 | 90 |
286-616-10 | G10SEBK48 | M48 | 72 | 12 | 165 | 45 | 47 | 95 |
SKU | Product Code | E | K | Torque | Weight |
---|---|---|---|---|---|
with key | mm | mm | Nm | kgs | |
286-616-1 | G10SEBK8 | 32 | 45 | 8 | 0.3 |
286-616-2 | G10SEBK10 | 32 | 45 | 16 | 0.3 |
286-616-3 | G10SEBK12 | 44 | 56 | 28 | 0.46 |
286-616-4 | G10SEBK16 | 56 | 65 | 70 | 0.9 |
286-616-5 | G10SEBK20 | 58 | 70 | 135 | 1.15 |
286-616-6 | G10SEBK24 | 73 | 88 | 230 | 2.05 |
286-616-7 | G10SEBK30 | 80 | 106 | 465 | 3.12 |
286-616-8 | G10SEBK36 | 95 | 154 | 814 | 6.7 |
286-616-9 | G10SEBK42 | 105 | 170 | 1304 | 9.5 |
286-616-10 | G10SEBK48 | 120 | 185 | 1981 | 13.55 |
