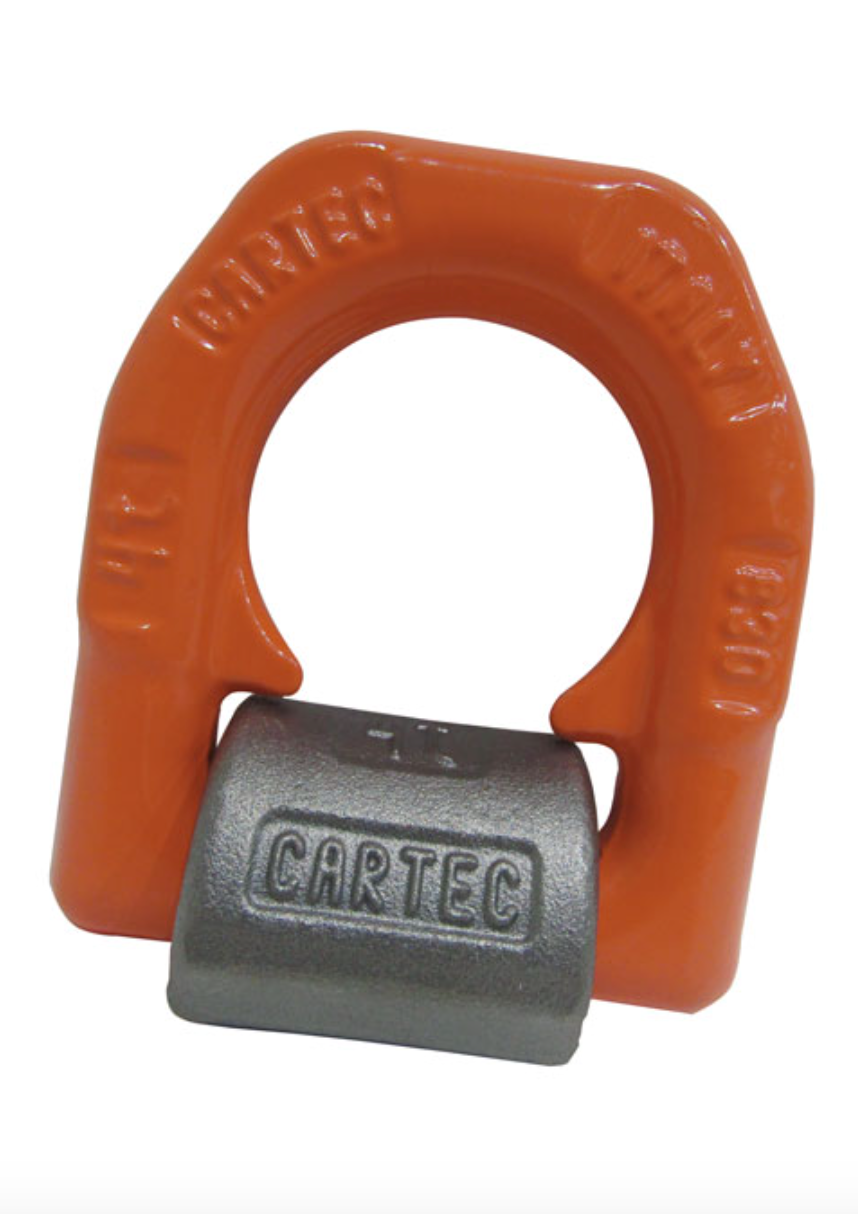

Cartec Grade 10 Single Base Weld-on Lifting Ring with Spring - 830X

Cartec Grade 10 Single Base Weld-on Lifting Ring with Spring - 830X

SKU: 286-615-1

Read More
Regular price £55.94
Regular price RRP Sale price TODAY'S PRICE £55.94

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

Cartec Grade 10 Single Base Weld-on Lifting Ring with Spring - 830X
  • Grade 10 high resistant alloy steel.
  • Black painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Bracket must be aligned to the pulling direction (tolerance allowed +/- 10º).
  • Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification - Declaration of Conformity

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle.

b = number of sling arms.

 Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

      Spec

      SKU W.L.L. A B C D E F G H Welding Thickness Weight
      t mm mm mm mm mm mm mm mm HV + Δa kgs
      286-615-1 1.5 14 65 38 25 66 16 31 79 HC 5+3 0.39
      286-615-2 2.5 16 75 45 27 77 18 34.5 91 HV 7+3 0.59
      286-615-3 4 18 84 51 32 87 20 40 102 HV 8+3 0.87
      286-615-4 6.7 24 117 67.3 44 115 26 58.5 141 HV 12+4 2.23
      286-615-5 10 31 126 67 55 129 28.5 70.5 157 HV 16+4 3.33
      286-615-6 16 45 174 100 69 190 42 87 219 HV 25+6 9.28
