Cartec Grade 10 Single Base Weld-on Lashing Ring with Spring - 831X

by Cartec
£42.28

SKU :286-614-1

L.C.

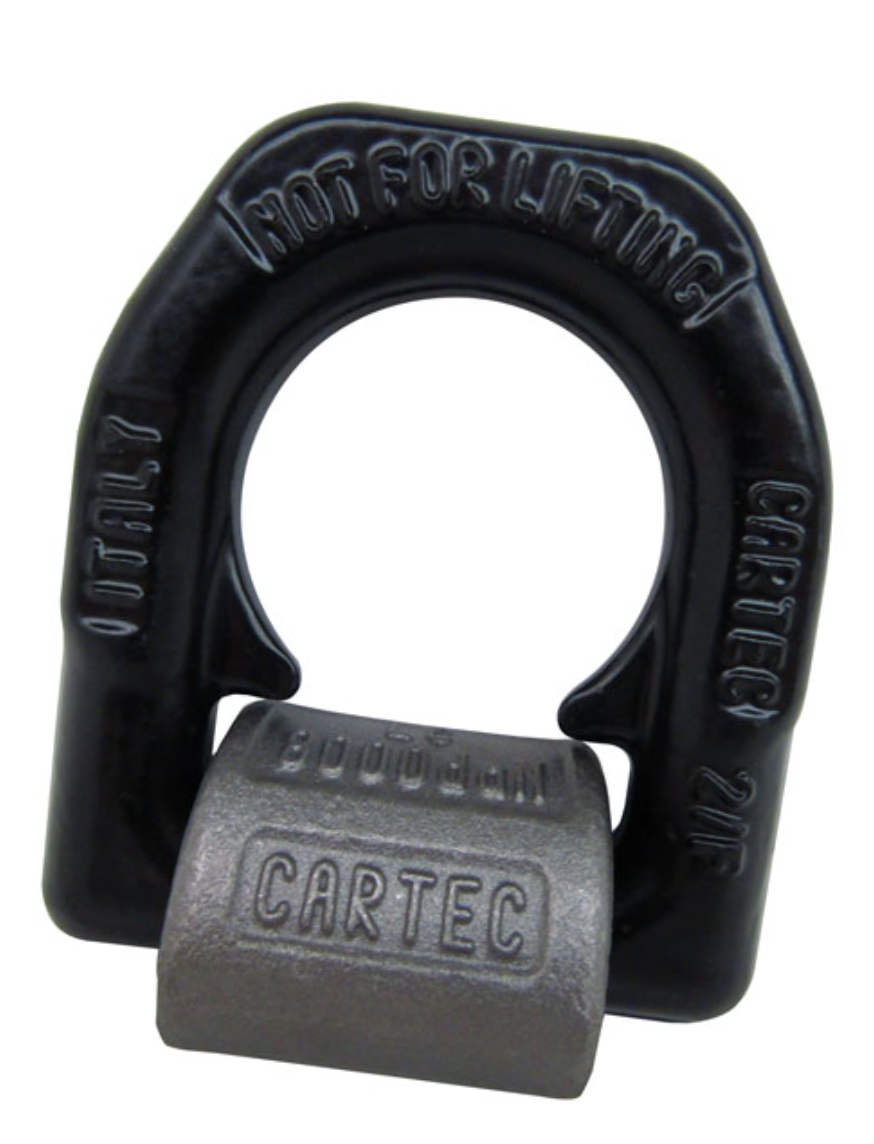

Cartec Grade 10 Single Base Weld-on Lashing Ring with Spring - 831X - G10SBLAR
  • Grade 10 high resistant alloy steel.
  • Black painted finish.
  • Minimum breaking load is 2 times the W.L.L.
  • Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification available  2.1    DoC

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle

 Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

      Spec

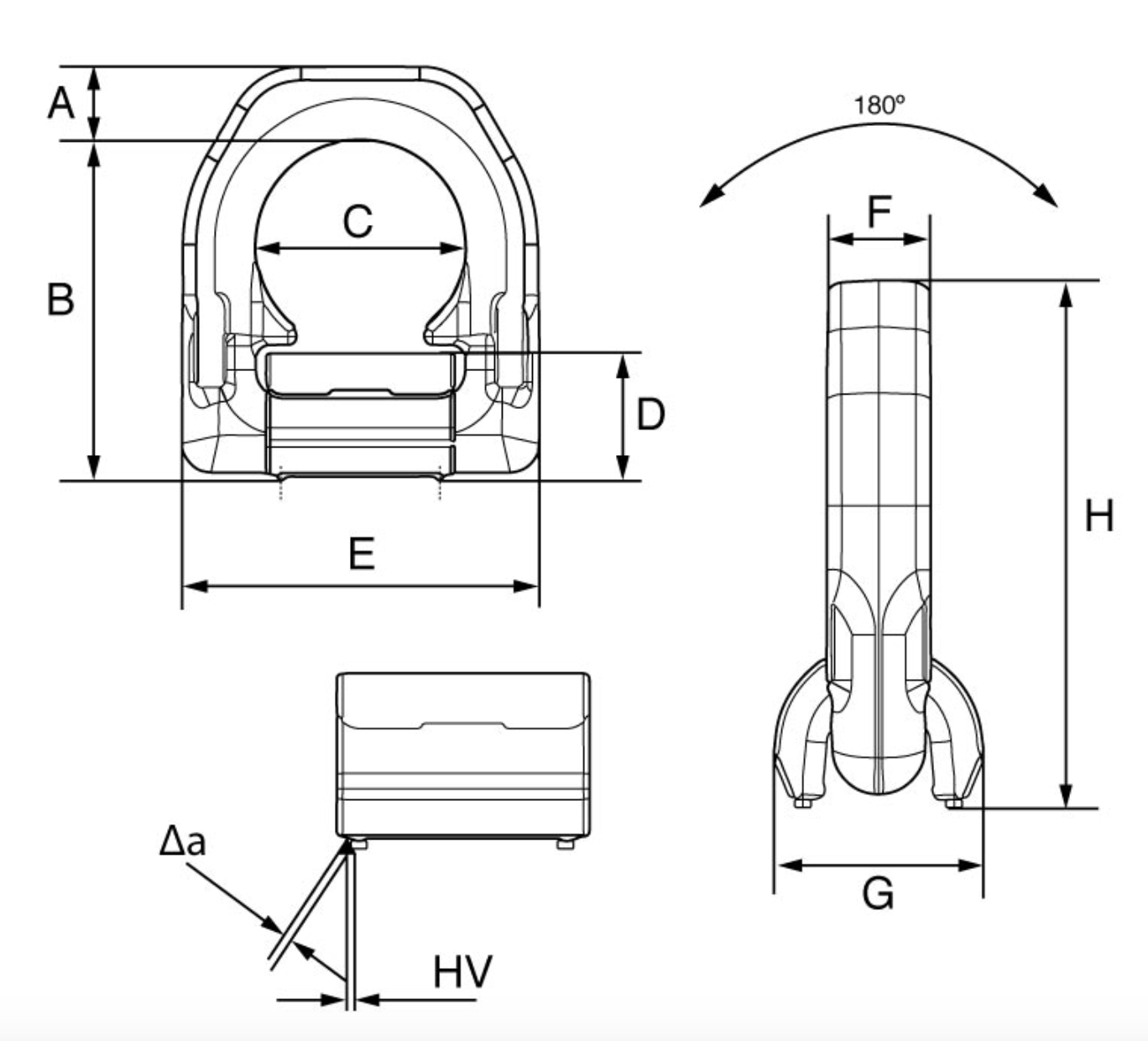

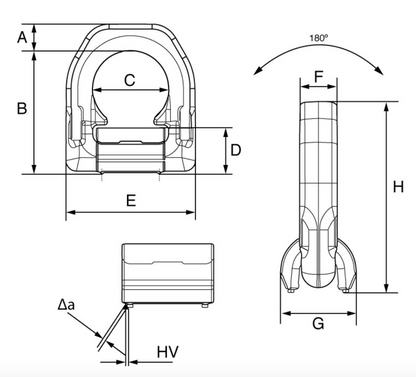

      SKU Product Code Product Code W.L.L. A B C D E F
      without spring with spring daN mm mm mm mm mm mm
      286-614-1 G10SBLAR3 G10SBLAR3S 3,000 14 65 38 25 66 16
      286-614-2 G10SBLAR5 G10SBLAR5S 5,000 16 75 45 27 677 18
      286-614-3 G10SBLAR8 G10SBLAR8S 8,000 18 84 51 32 87 20
      286-614-4 G10SBLAR13 G10SBLAR13S 13,400 24 117 67.3 44 115 26
      286-614-5 G10SBLAR20 G10SBLAR20S 20,000 31 126 67 55 129 28.5
      286-614-6 G10SBLAR32 G10SBLAR32S 32,000 45 174 100 69 190 42



      SKU  Product Code Product Code G H Welding Thickness Weight
      without spring with spring mm mm HV + Δa kgs
      286-614-1 G10SBLAR3 G10SBLAR3S 31 79 HV 5+3 0.39
      286-614-2 G10SBLAR5 G10SBLAR5S 34.5 91 HV 7+3 0.59
      286-614-3 G10SBLAR8 G10SBLAR8S 40 102 HC 8+3 0.87
      286-614-4 G10SBLAR13 G10SBLAR13S 58.5 141 HV 12+4 2.23
      286-614-5 G10SBLAR20 G10SBLAR20S 70.5 157 HV 16+4 3.33
      286-614-6 G10SBLAR32 G10SBLAR32S 87 219 HV 25+6 9.28
