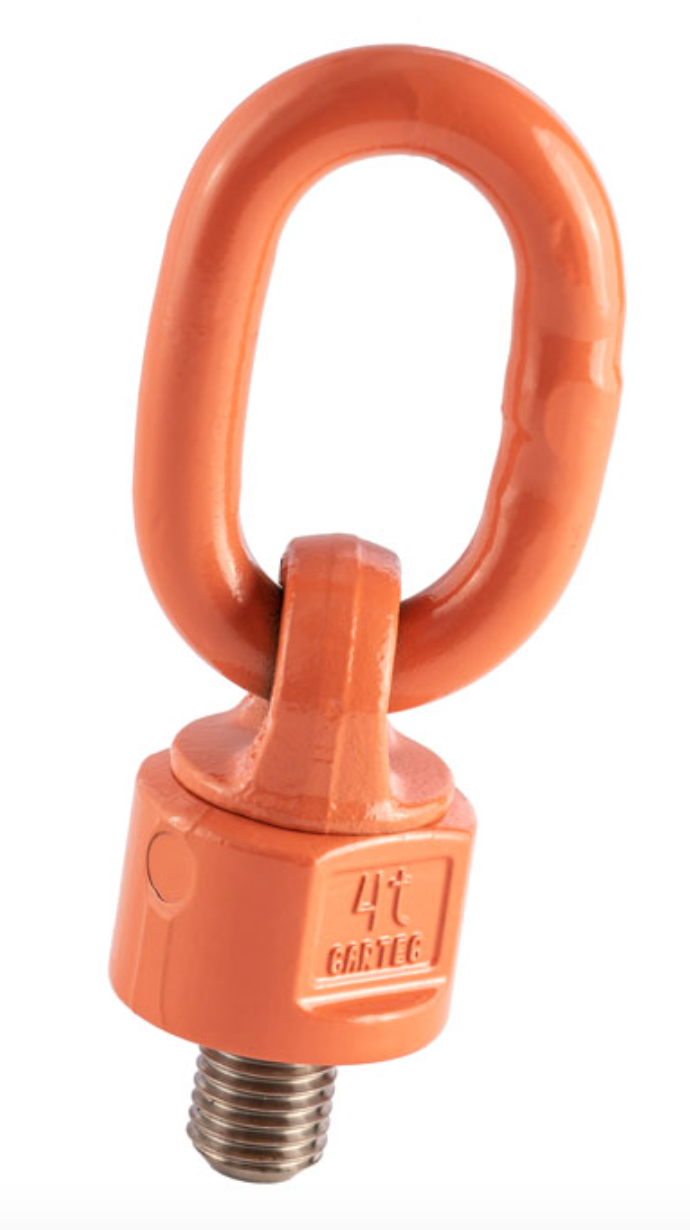

Cartec Grade 10 Rotating Eyebolt with Ring - 800X

by Cartec
£65.55

SKU :286-611-1

Diameter/Length/W.L.L.
Cartec Grade 10 Rotating Eyebolt with Ring - 800X - G10SLP
  • Grade 10 alloy steel.
  • Pink painted finish.
  • Designed, tested and certified in compliance with the technical directives GS-OA15-04 – BS EN 1677.
  • Minimum breaking load is 4 times the W.L.L.
  • Can be oriented at 360° with self aligning tilting ring at 180°.
  • On the axial pull there can be variation of +/-5° with a 10% decrease in capacity.
  • Not suitable for continuous rotation under load.
  • Full CAD support available upon request.
  • Certification available  2.1    DoC
 Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

      Spec

      SKU Product Code D L W.L.L A B C E D1 H SW Torque Weight
      mm mm t mm mm mm mm mm mm mm Nm kgs
      286-611-1 G10SLP10180.5 M10 18 0.5 30 13 46 50 38 105 30 16 0.48
      286-611-2 G10SLP12180.7 M12 18 0.7 30 13 46 50 38 105 30 28 0.5
      286-611-3 G10SLP16201.4 M16 20 1.4 30 13 46 50 38 105 30 70 0.53
      286-611-4 G10SLP20301.7 M20 30 1.7 30 13 46 50 38 105 30 135 0.53
      286-611-5 G10SLP20302.5 M20 30 2.5 34 16 57 61 50 131 40 135 1.05
      286-611-6 G10SLP24301.7 M24 30 1.7 30 13 46 50 38 105 30 230 0.53
      286-611-7 G10SLP24304 M24 30 4 40 18 70 68 58 153 48 230 1.63
      286-611-8 G10SLP30354 M30 35 4 40 18 70 68 58 153 48 465 1.63
      286-611-9 G10SLP30356.7 M30 35 6.7 45 22 65 71 80 156 70 465 2.85
      286-611-10 G10SLP30408 M30 45 8 50 23 91 86 90 200 80 465 4.4
      286-611-11 G10SLP365410 M36 54 10 50 23 91 86 90 200 80 814 4.62
      286-611-12 G10SLP426312.5 M42 63 12.5 50 23 91 86 90 200 80 1304 5.2
      286-611-13 G10SLP456012.5 M45 60 12.5 50 23 91 86 90 200 80 1670 5.2
      286-611-14 G10SLP487210.5 M48 72 12.5 50 23 91 86 90 200 80 1981 5.2
      286-611-15 G10SLP456016 M45 60 16 70 32 120 112 100 262 100 1670 10.9
      286-611-6 G10SLP486017 M48 60 17 70 32 120 112 100 262 100 1981 10.9
      286-611-17 G10SLP567818 M56 78 18 70 32 120 112 100 262 100 3000 10.9
      286-611-18 G10SLP649620 M64 96 20 70 32 120 112 100 262 100 4738 10.9
      286-611-19 G10SLP649628 M64 96 28 90 45 124 165 140 333 140 4738 29
      286-611-20 G10SLP7210831 M72 108 31.5 90 45 124 165 140 333 140 6913 29
      286-611-21 G10SLP8012035 M80 120 35 90 45 124 165 140 333 140 9625 29
      286-611-22 G10SLP9013540 M90 135 40 90 45 124 165 140 333 140 14000 29



       Duct rod data sheetProduct data sheet (COMING SOON)
