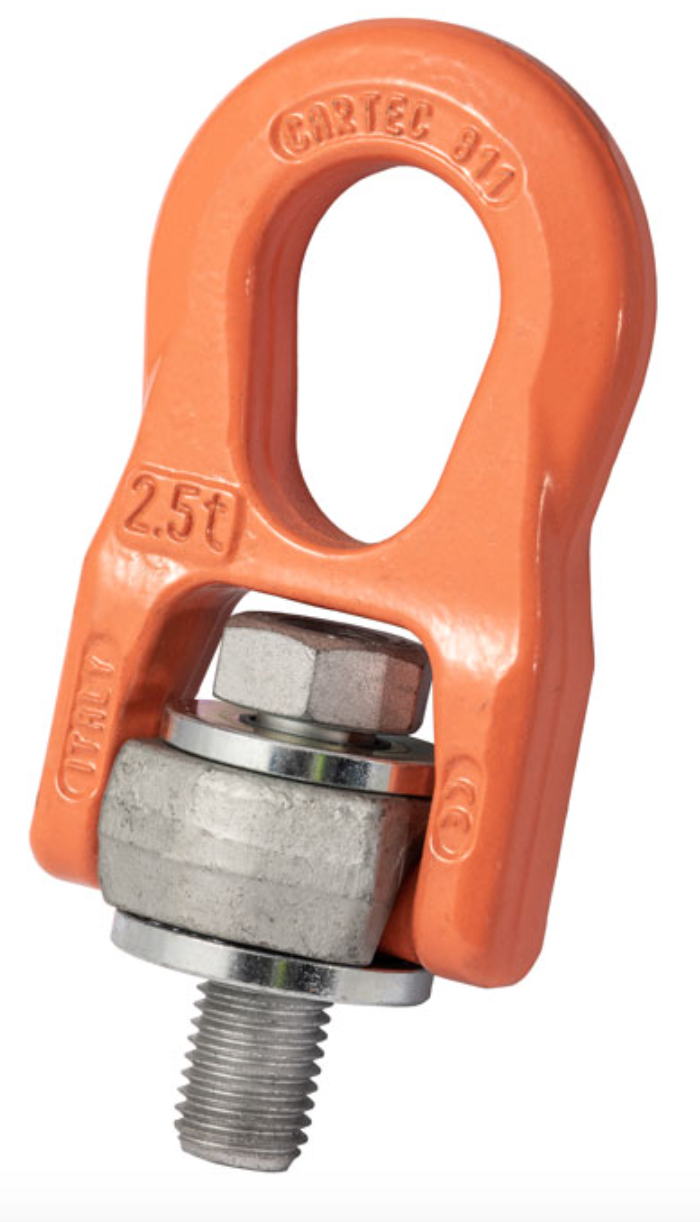

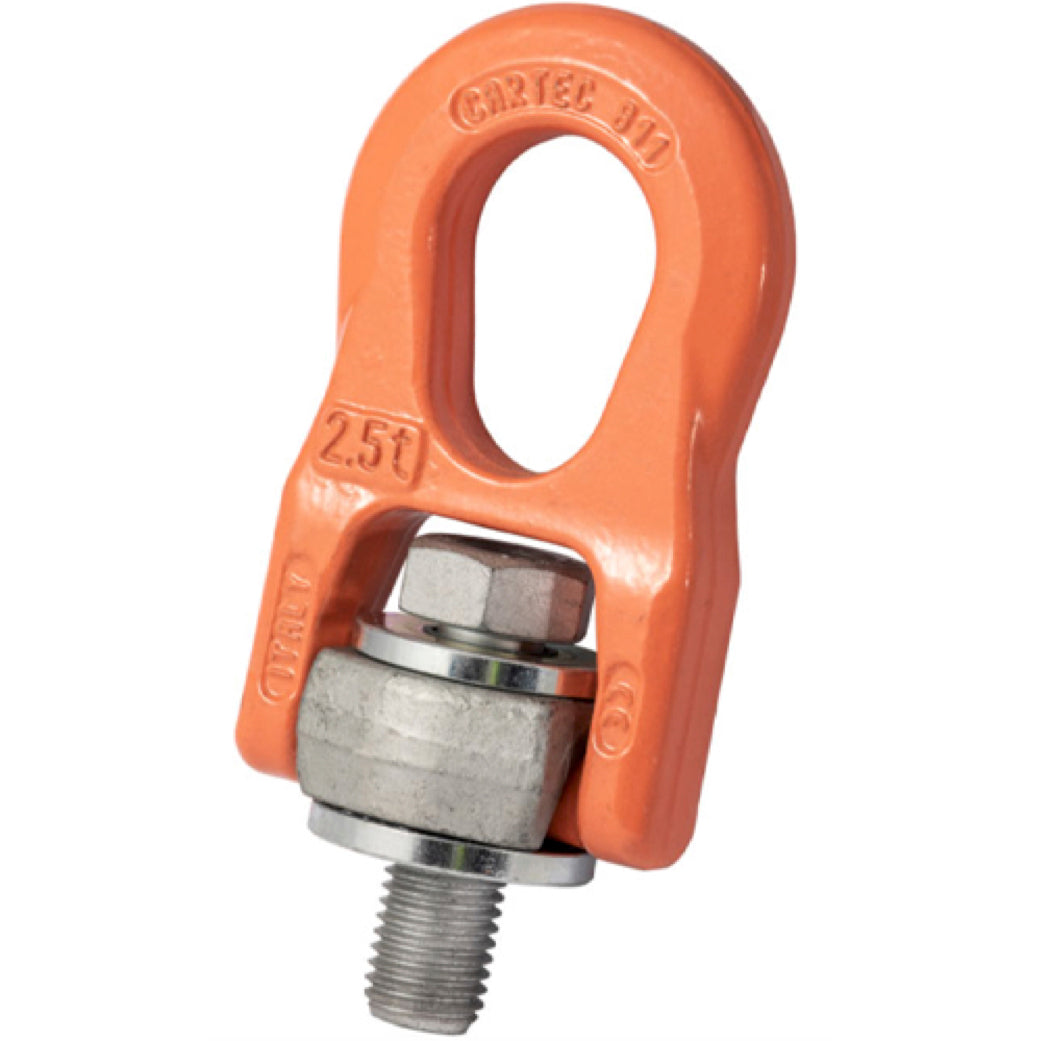

Cartec Grade 10 Heavy Lift Swivel Hoist - 811X

by Cartec
£90.48

SKU :286-613-1

Diameter/Length/W.L.L.
Cartec Grade 10 Heavy Lift Swivel Hoist - 811X - G10HLSHR
  • Grade 10 alloy steel.
  • Pink painted finish.
  • Minimum breaking load is 4 times the W.L.L.
  • Can be oriented at 360°.
  • Eyebolts M36 and above are manufactured to allow use with universal hexagonal keys.
  • Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
  • Not suitable for rotating under load.
  • Full CAD support available upon request.
  • Certification available  2.1    DoC
Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

      Spec

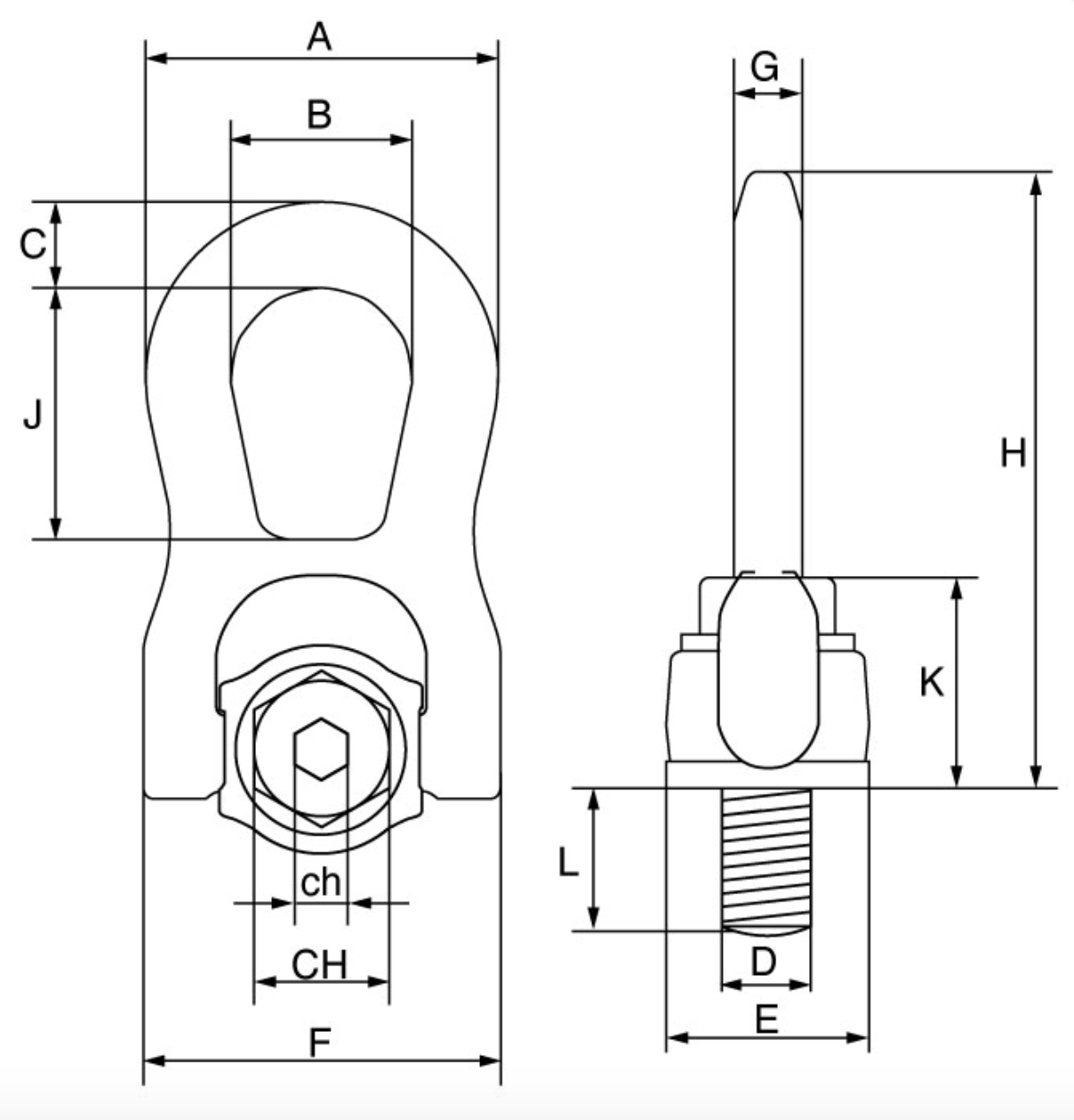

      SKU Product Code D L W.L.L. A B C E F G
      mm mm t mm mm mm mm mm mm
      286-613-1 G10HLSHR8 M8 12 0.3 56 28 14 30 55 11
      286-613-2 G10HLSHR10 M10 15 0.6 56 28 14 30 55 11
      286-613-3 G10HLSHR12 M12 18 1 56 28 14 30 55 11
      286-613-4 G10HLSHR14 M14 21 1.3 74.5 38 18 47 78 17
      286-613-5 G10HLSHR16 M16 25 1.6 74.5 38 18 47 78 17
      286-613-6 G10HLSHR18 M18 27 2 74.5 38 18 47 78 17
      286-613-7 G10HLSHR20 M20 30 2.5 74.5 38 18 47 78 17
      286-613-8 G10HLSHR22 M22 33 3 106 56 25 62 114.5 22
      286-613-9 G10HLSHR24 M24 36 4 106 56 25 62 114.5 22
      286-613-10 G10HLSHR27 M27 40 5 106 56 25 62 114.5 22
      286-613-111 G10HLSHR30 M30 45 6.3 106 56 25 62 114.5 22



      SKU Product Code H J K CH ch Torque Weight
      mm mm mm mm mm Nm kgs
      286-613-1 G10HLSHR8 99 40 33.5 13 5 10 0.375
      286-613-2 G10HLSHR10 99 40 34.5 17 6 15 0.375
      286-613-3 G10HLSHR12 99 40 35.5 19 7 25 0.375
      286-613-4 G10HLSHR14 135.5 55 46 22 7 30 1.3
      286-613-5 G10HLSHR16 135.5 55 46.5 24 10 60 1.3
      286-613-6 G10HLSHR18 135.5 55 47 27 10 100 1.3
      286-613-7 G10HLSHR20 135.5 55 48 30 12 120 1.3
      286-613-8 G10HLSHR22 198.5 84 63.5 32 12 130 4
      286-613-9 G10HLSHR24 198.5 84 64.5 36 14 200 4
      286-613-10 G10HLSHR27 198.5 84 66.5 41 14 250 4
      286-613-111 G10HLSHR30 198.5 84 68 46 17 350 4
