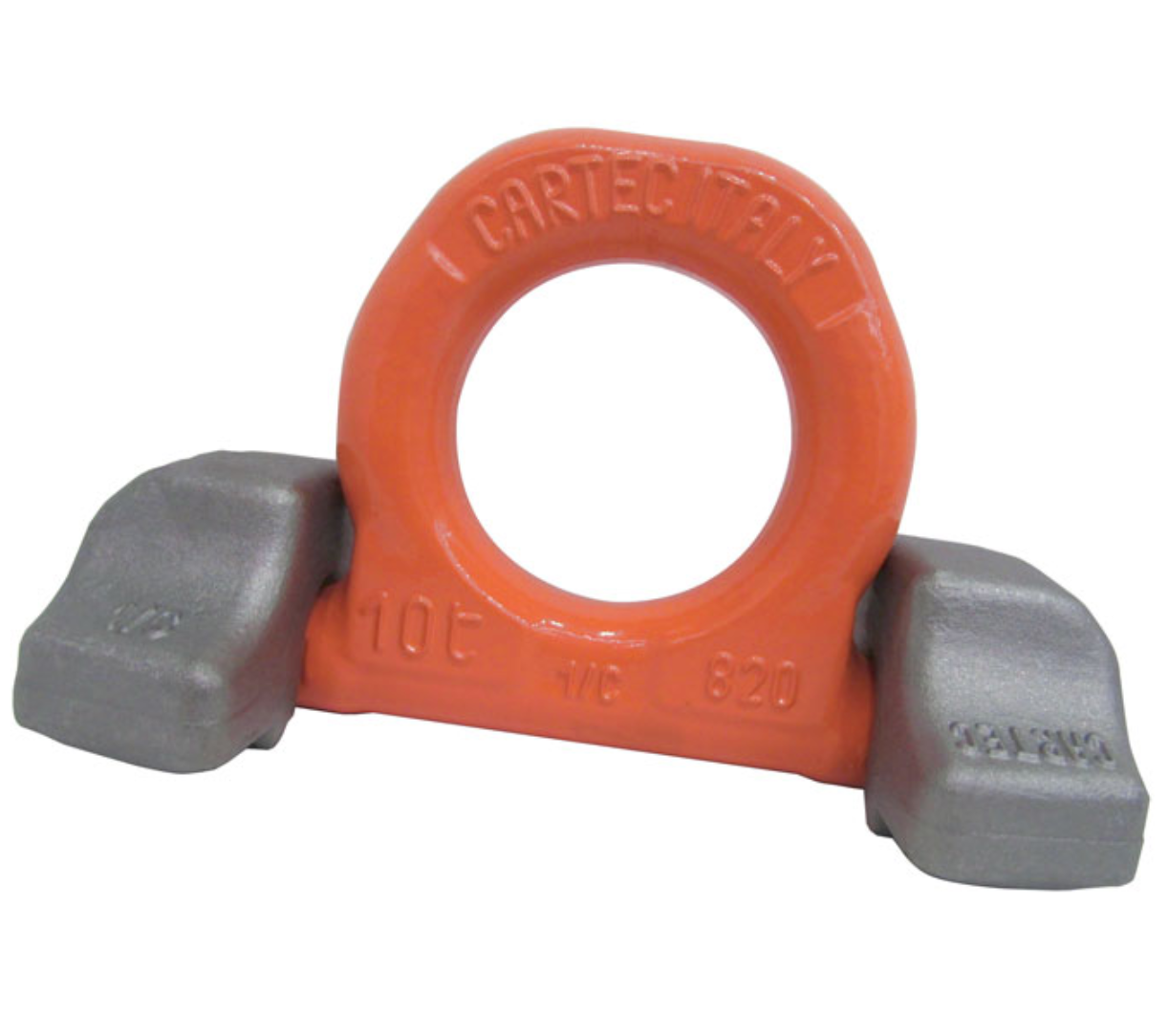

Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X

Name: Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X
Brand: Cartec
SKU: 286-618-1
Price: 62.42 GBP
Availability: InStock

Cartec SKU: 286-618-1

1 1

Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X

Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X Grade 10 high resistant alloy steel. Black painted finish. Minimum breaking load is 4... Read More

Cartec SKU: 286-618-1

£62.42

Sale TODAY'S PRICE £62.42

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View more cartec grade 10 lifting lashing points

Description

Cartec Grade 10 Double Base Weld-on Lifting Ring - 820X

Grade 10 high resistant alloy steel.
Black painted finish.
Minimum breaking load is 4 times the W.L.L.
The entire perimeter of the base must be welded except for the water discharge area.
Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
Full CAD support available upon request.
Certification - Declaration Of Conformity

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle.

b = number of sling arms.

Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.

Spec

SKU	W.L.L.	A	B	C	D	E	F	G	H	Welding Thickness	Weight
	t	mm	mm	mm	mm	mm	mm	mm	mm	HV + Δa	kgs
286-618-1	4	14	65	48	29	134	14	60	79	HV 4+3	0.73
286-618-2	6.7	20	83	60	39	169	16	88	103	HV 5.5+3	1.8
286-618-3	10	22	96	65	48	196	19.5	98	118	HV 6+4	3
286-618-4	16	31	126	90	55	264	29	127	155	HV 8.5+4	5.75
286-618-5	30	42	175	130	79	371	45	157	217	HV 15+4	16
