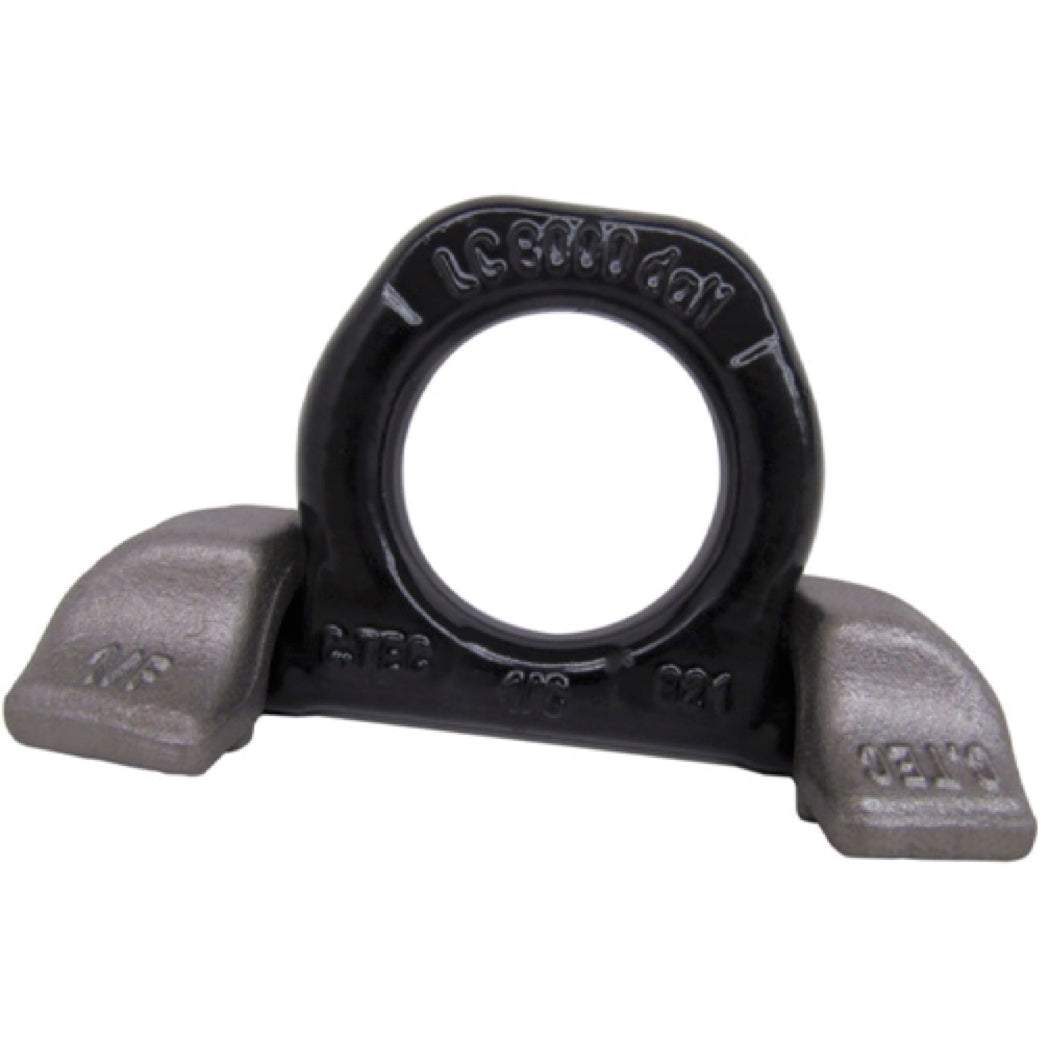

Cartec Grade 10 Double Base Weld-on Lashing Ring - 821X

Cartec Grade 10 Double Base Weld-on Lashing Ring - 821X

SKU: 286-617-1

Read More
Regular price £56.70
Regular price RRP Sale price TODAY'S PRICE £56.70

In stock

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

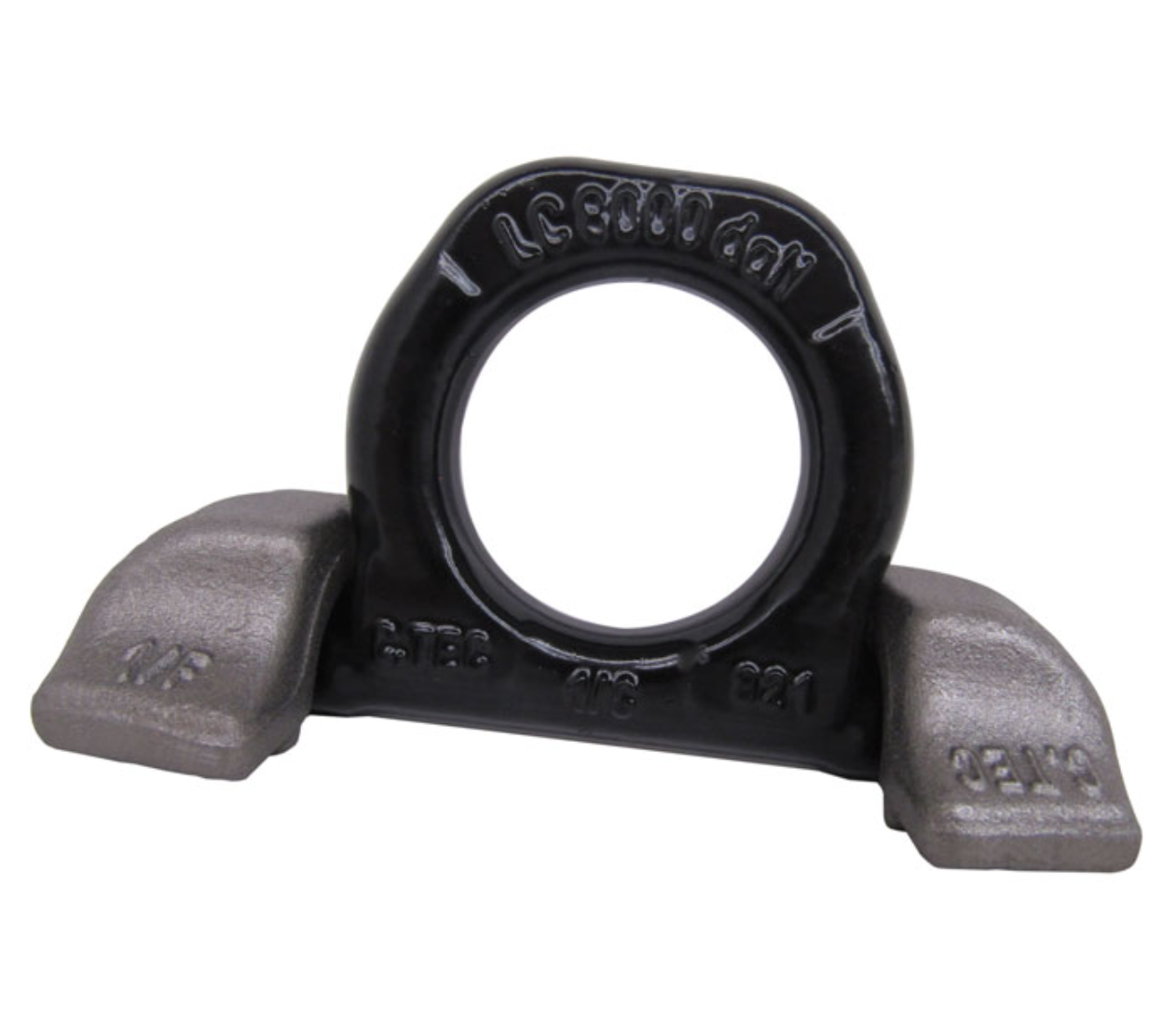

Cartec Grade 10 Double Base Weld-on Lashing Ring - 821X
  • Grade 10 high resistant alloy steel.
  • Black painted finish.
  • Minimum breaking load is 2 times the W.L.L.
  • The entire perimeter of the base must be welded except for the water discharge area.
  • Marked with CE, W.L.L, material grade, manufacturers ID, product ID mark and traceability code.
  • Full CAD support available upon request.
  • Certification - Declaration Of Conformity

In particular applications the capacity which has to be used must be determined by the pulling inclination angle following the formula.

Lc = capacity needed per single bracket.

C = load to anchor.

δ = pulling inclination angle



Please note, delivery of Cartec Grade 10 Lifting & Lashing Points can take up to three weeks from order.


Spec

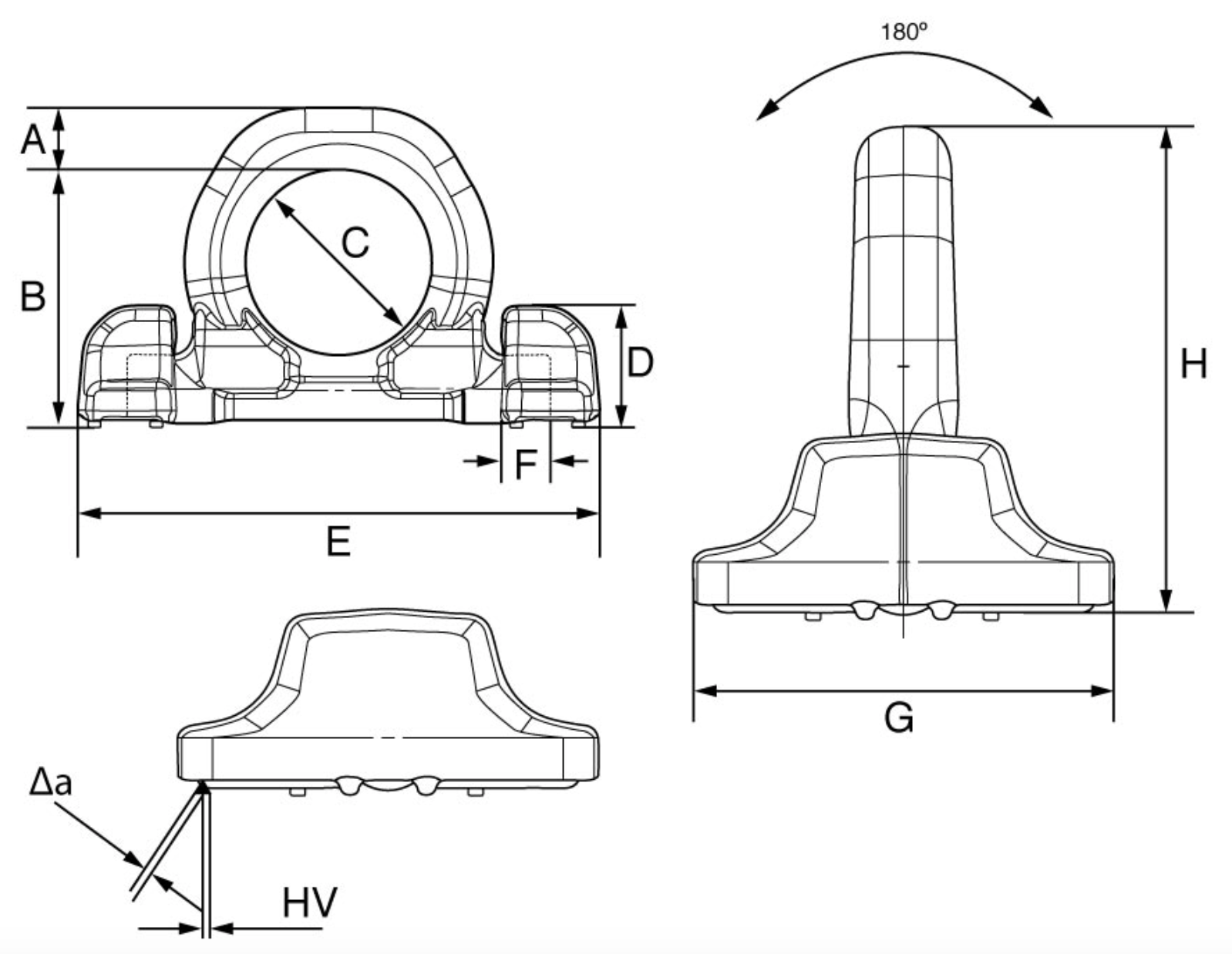

SKU W.L.L. A B C D E F G H Welding Thickness Weight
daN mm mm mm mm mm mm mm mm HV + Δa kgs
286-617-1
8,000 14 65 48 29 134 14 60 79 HV 4+3 0.73
286-617-2
13,000 20 83 60 39 169 16 88 103 HV 5.5+3 1.8
286-617-3
20,000 22 96 65 48 196 19.5 98 118 HV 6+4 3
286-617-4
32,000 31 126 90 55 264 29 127 155 HV 8.5+4 5.75
