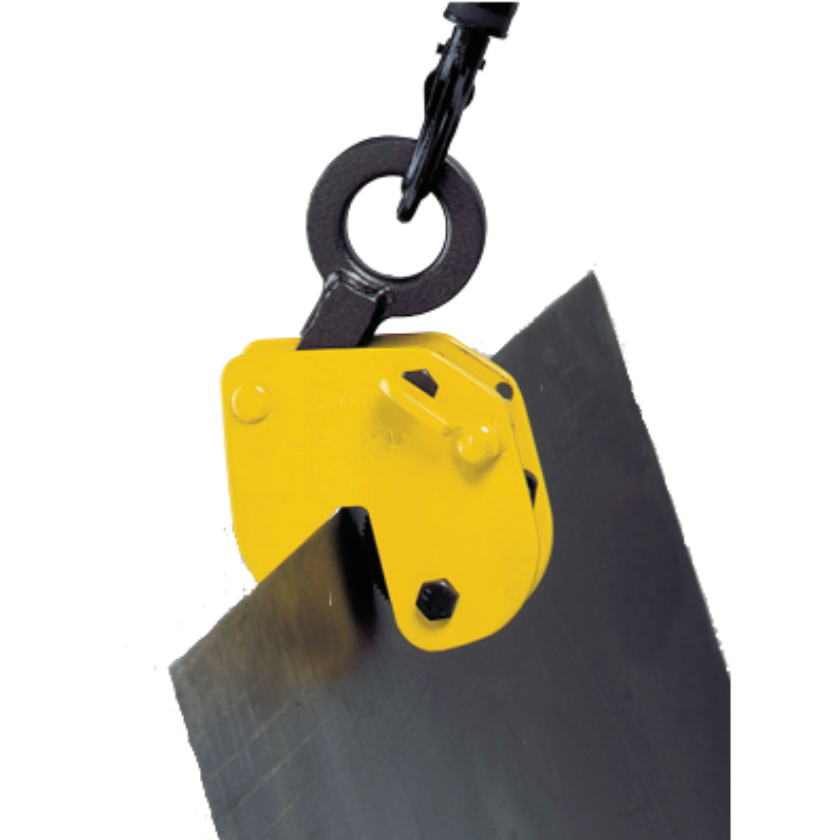

Camlok HG500 High Grip Vertical Plate Clamp - 500kg W.L.L

The HG plate clamp has an extremely high clamping force which makes the clamp particularly suited to the transport of a plate with a surface hardness up to HRC
40/Brinell 375.

Function

This clamp is opened and closed with a locking lever. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load on the jaw.

Workmanship and parts

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs must be done by a trained person.

Note: The minimum load is 5% of the W.L.L.
