Camlok CZ Heavy Duty Plate Clamp with Link fitting & Chain* and Safety Lock

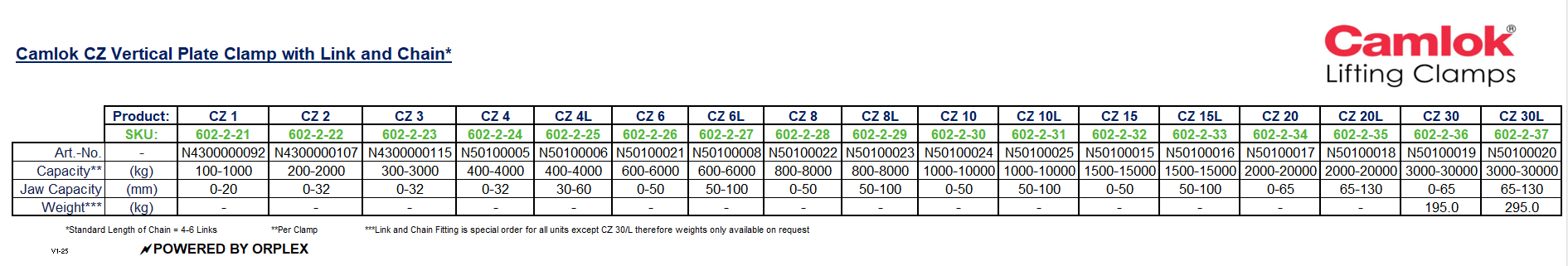

Capacity 100 - 30000 kg

*Standard length of chain = 4-6 links

These clamps are primarily used for transporting sheet metal and steel plates in the vertical position, as well as lifting and rotating through 180°.

They can also be used for transporting steel constructions and profiles. It is recommended to use a pair of plate clamps in conjunction with a spreader beam for long plate.

These clamps are special order, please contact our sales team sales@rigginguk.co.uk with your requirements for a personalised quote.

Function

The jaw is opened and closed with the locking lever. The safety lock spring loads the cam jaw, preventing the clamp from opening even when there is no load on the
jaw.

Workmanship and parts

These plate clamps are service-friendly, making it easy to exchange parts, which are readily available. Clamp repairs must be done by a trained person.

Note: The plate surface of the material being clamped must have a hardness level below HRC 30/Brinell 300

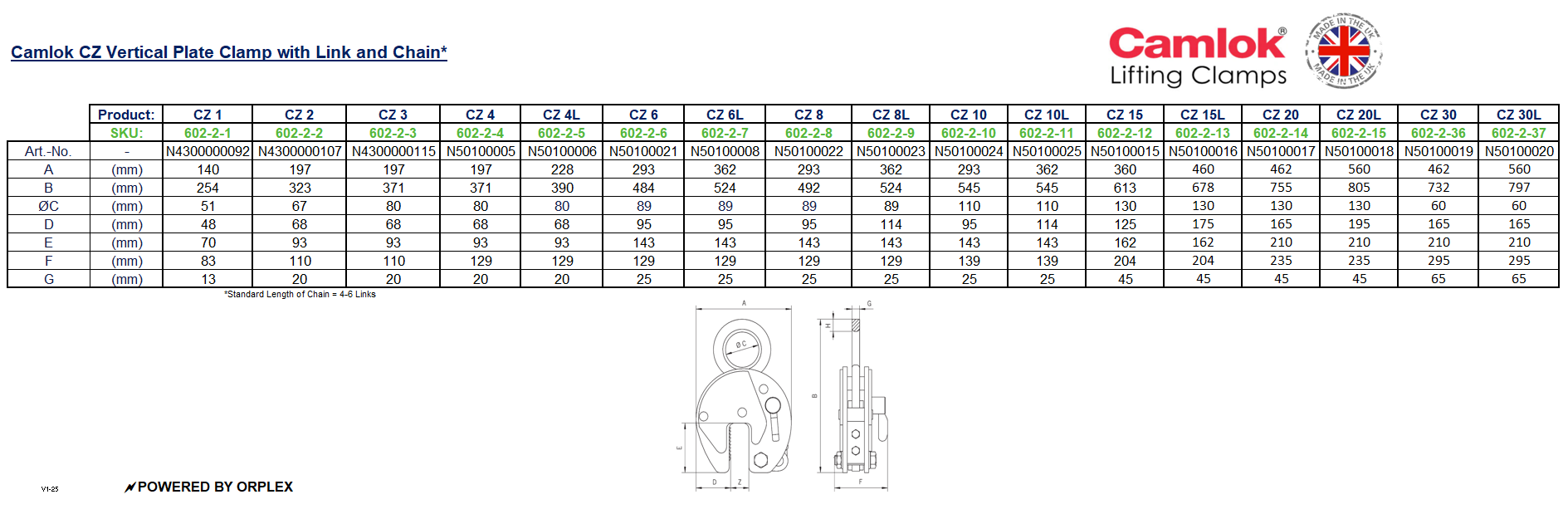

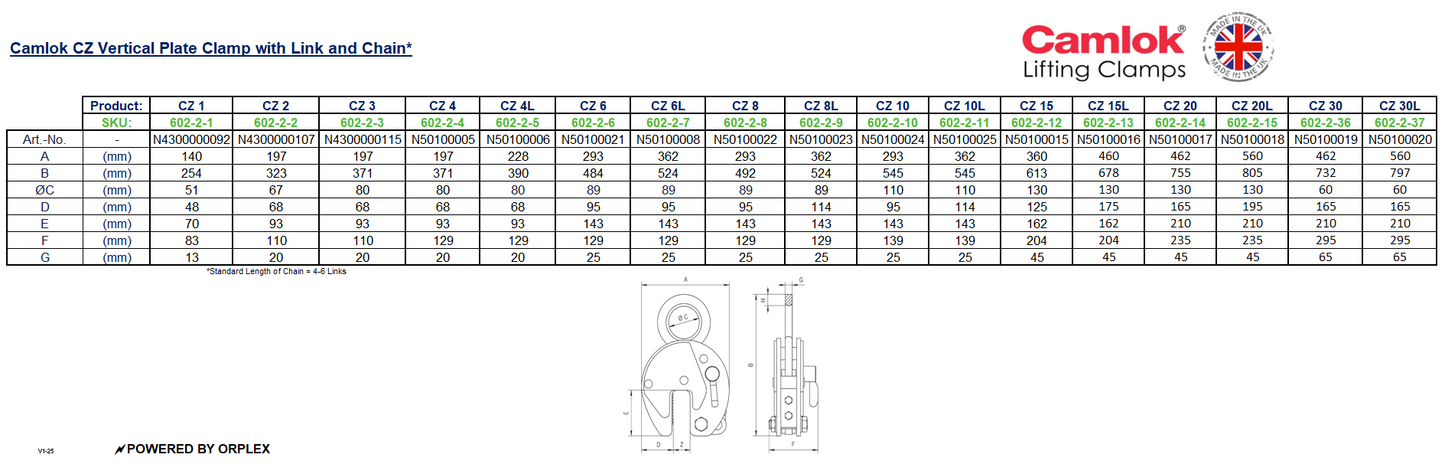

Key

• (HR) Hook Ring
• (LC) Link and Chain
• W.L.L Working Load Limit
• (JC) Jaw Capacity
