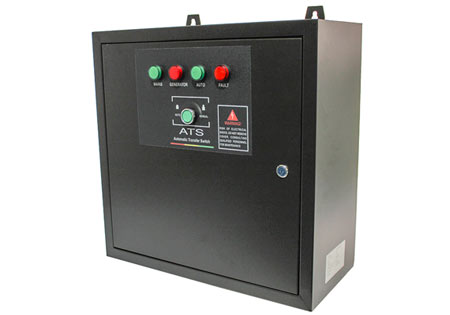

New diesel ATS multi phase panel suits all Warrior / Bimson Power diesel models from 4kW to 12kW in both single & three phase (MUST have ATS Input socket on generator panel) . This newly designed panel has 100A breaker to suit household incoming mains supply. The generator when using this ATS panel automatically stops and starts as the voltage drops and raises by detecting fluctuations in voltage from the main power source.

Our ATS are simple plug in and go type units, they have an ATS input on both diesel generator and ATS panel for connection with a 5m lead (Included).

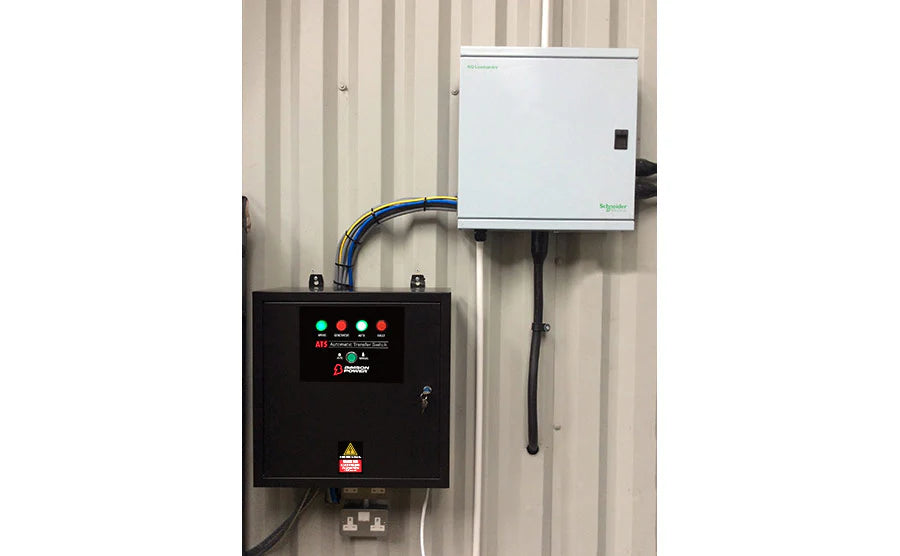

Easily installed between a household consumer unit and mains supply elevating the loss of power to essential equipment like alarms, fridge/freezers & heating supply (Generator MUST be purchased & installed)

Our new ATS panel has a built in trickle charge unit that will keep the generator battery fully charged even when the generator is not in use. Ideal equipment for piece of mind in the event of power outage or loss.

With a multi phase panel it can be used on both 240v and 415v incoming supplies, the panel has 4 lights consisting of Main, Generator, Auto & fault for easy viewing. The panel can also utilise a manual mode in case you don’t want to use the ATS mode (Recommended only qualified personnel use this feature).

IMPORTANT NOTE: The size and type of generator purchased will determine the power that is delivered to the equipment or consumer unit, please spec up your generator correctly in accordance with the appliances or equipment wattage to be powered.
