Home » AG100 - 100kg Hand Winch- Kits for - Clothes/Washing lines, Fitness Equipment, Chandeliers - plus many others
Orptech

AG100 - 100kg Hand Winch- Kits for - Clothes/Washing lines, Fitness Equipment, Chandeliers - plus many others

Out of stock
SKU: 152-1-6A
(0)
£228.00 GBP inc vat
Kit
Rope
Pulley

100kg Hand Winch Kits

Compromises;

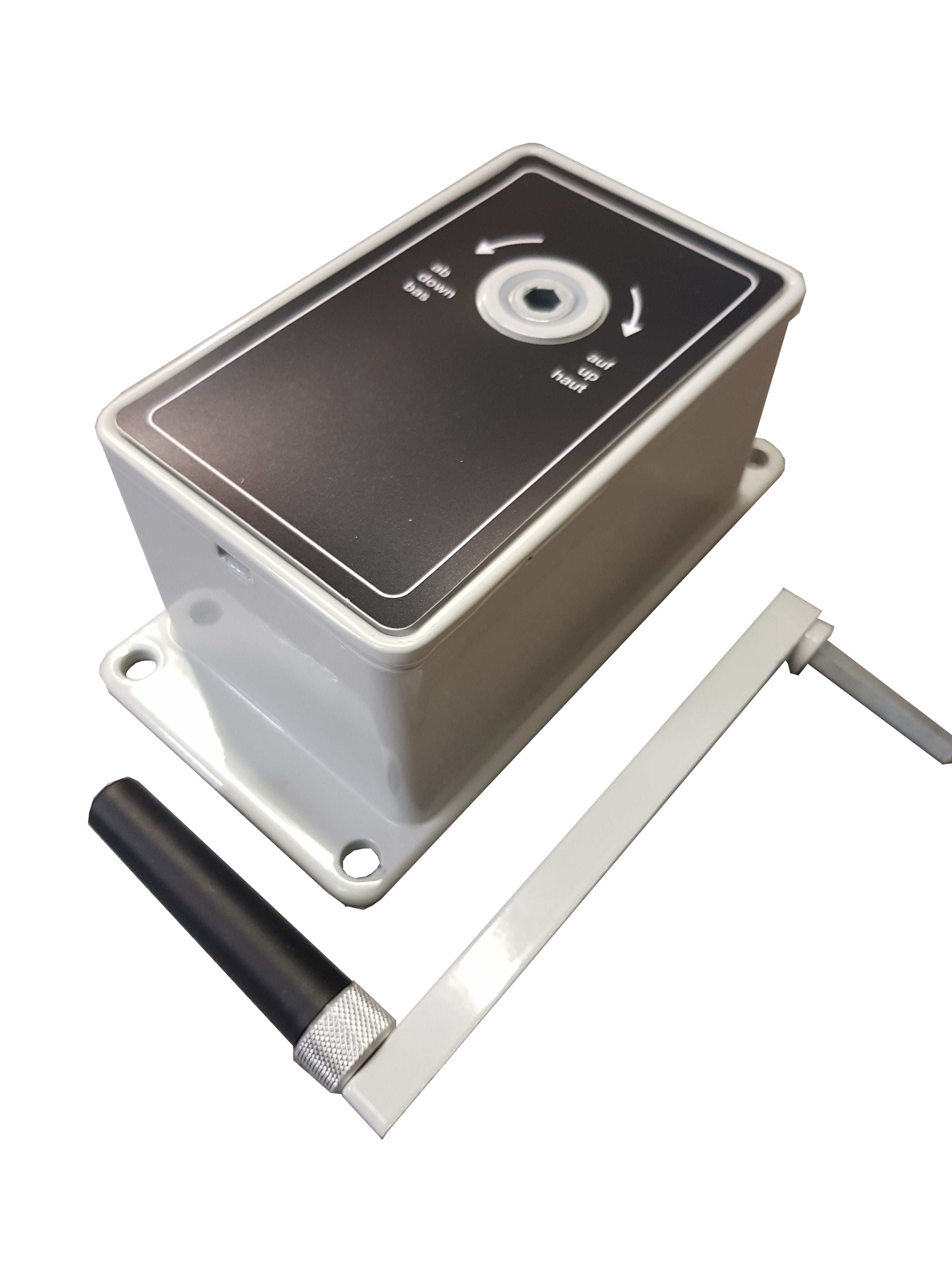

A 100kg hand operated winch (type AG100) designed for light duty application, for example - raising blinds, gym & fitness equipment, shutters, clothes lines, washing lines and chandeliers,
Designed for light duty applications
Aluminium die-cast construction, corrosion resistant parts and powder coated paint finish

Spur gear operation
Self locking brake
Quiet running with low crank effort, removable crank and low weight

Spec

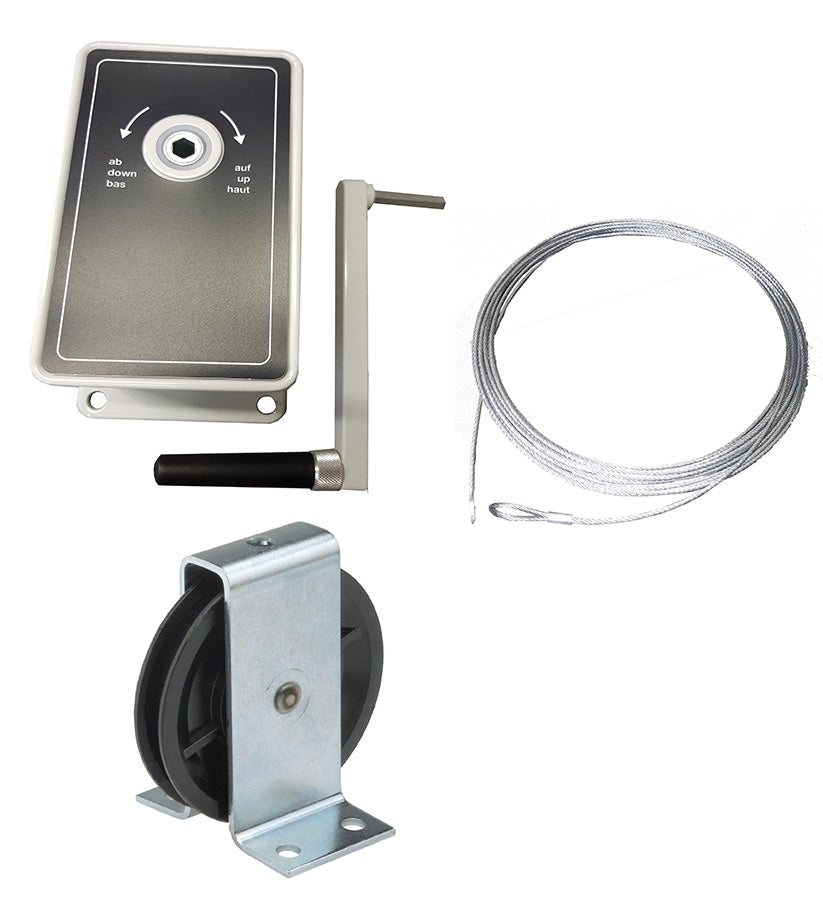

Kit A (152-1-6A) Winch comes with:

  • 1 x AG100 Winch with removable handle  SWL 100kg
  • 1 x 3mm dia,10m Galv 7x19, wire rope - loop crimped with aluminium ferrule
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 1 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155.1.3 / 80mm Dia, 100kg - useful for diverting wire rope

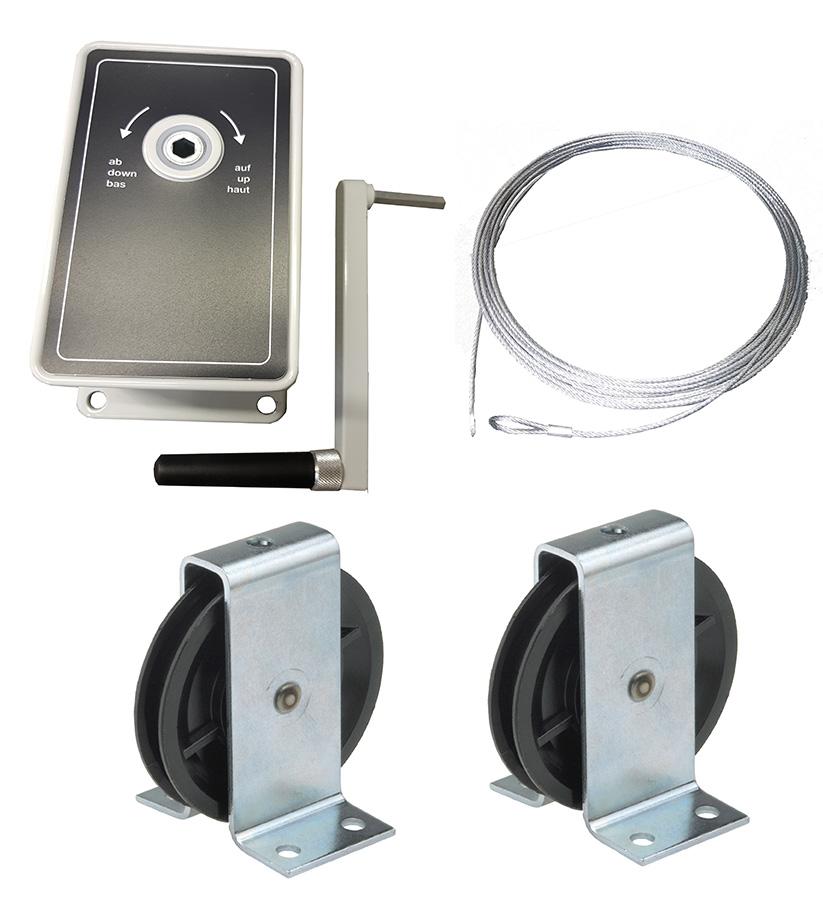

Kit B (152-1-7A) Winch comes with:

  • 1 x AG100 Winch with removable handle  SWL 100kg
  • 1 x 3mm dia,10m Galv 7x19, wire rope - loop crimped with aluminium ferrule
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 2 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155.1.3 / 80mm Dia, 100kg - useful for diverting wire rope



Downloads

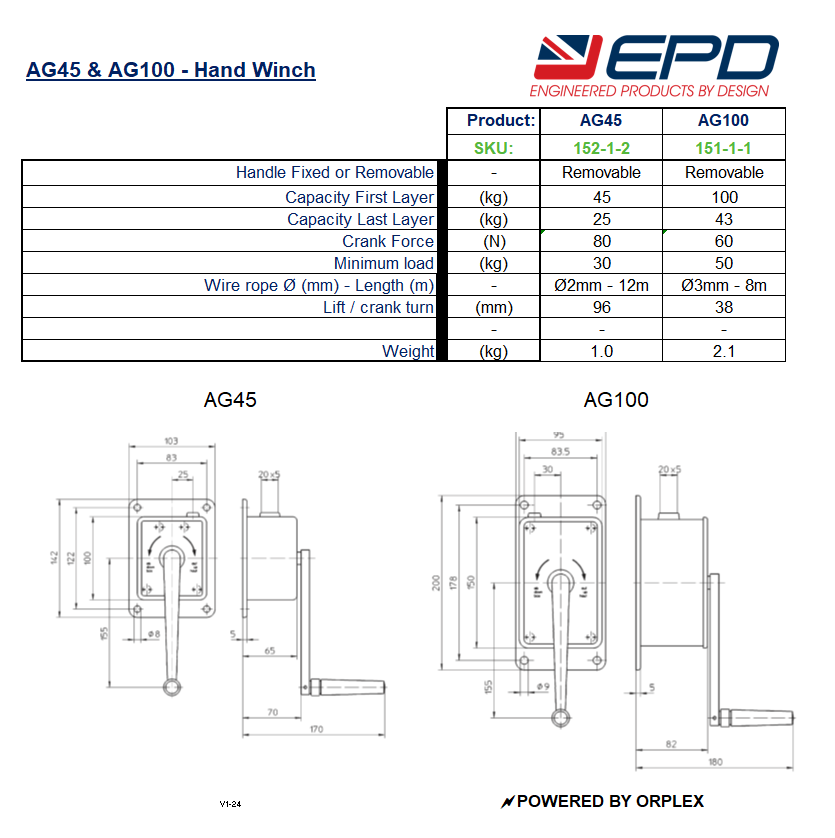

Data sheet
