AG45 Hand Winch

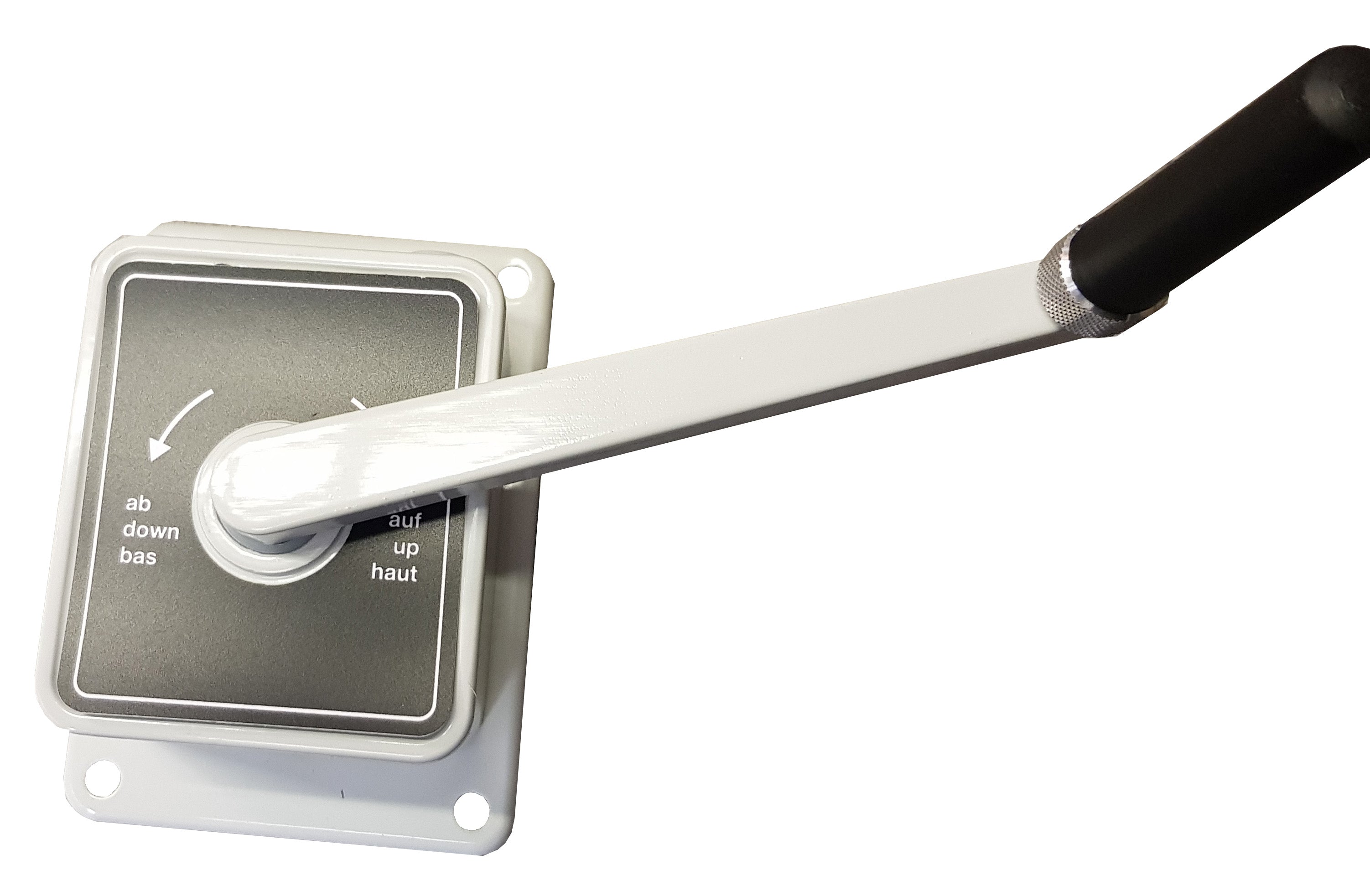

AG45 - Manually Operated Hand Winch:

This winch as maximum lifting capacity 45kg and is suitable for wall mounting.
It is a hand operated winches designed for medium duty applications, for example - raising and lowering blinds, shutters, clothes lines, washing lines and chandeliers.Aluminium die-cast construction, corrosion resistant parts and powder coated paint finish make this a perfect winch to use outside.

Spur gear cranking operation - faster lifting and lowering than a worm gear winch.

Self locking braking system, allowing the operator to let go of the handle and load will stay in position and the crank handle will not spin (subject to minimum load requirements).

Quiet running and low crank effort, making it suitable for use most people.

It's removable crank is a good security feature, ensuring unauthorised operation is not possible without the crank.

**As Standard supplied without Wire Rope, unless you select SKU 152-1-3 or 152-1-5**

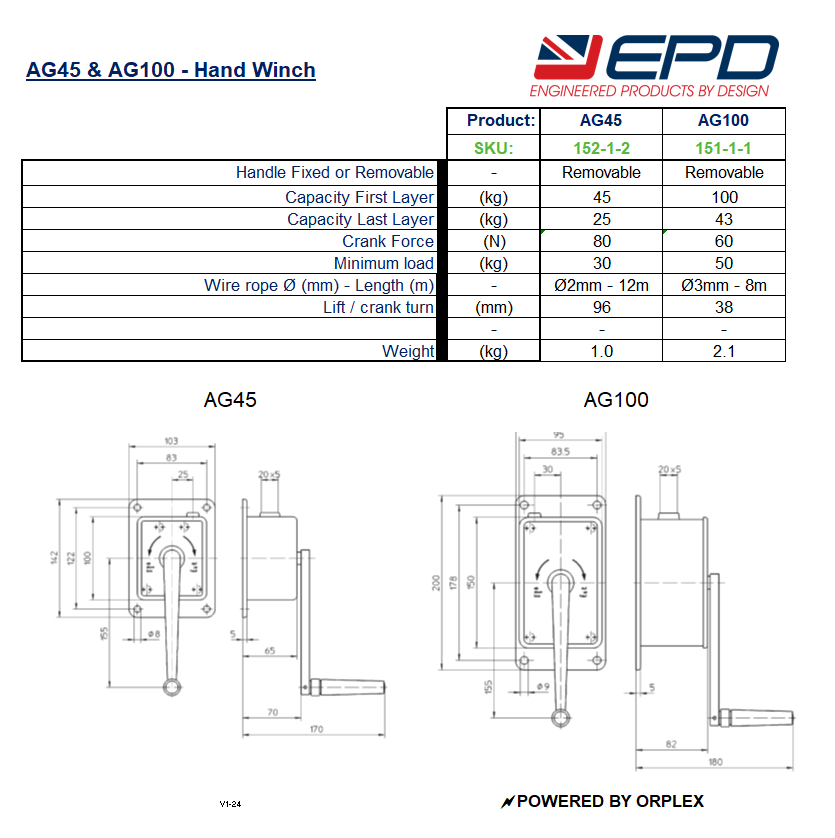

Specification

Downloads

Data Sheet :

Data sheet
