7ft Confined Space Tripod

by Kratos
£850.96

SKU :286-1610-1

MBS

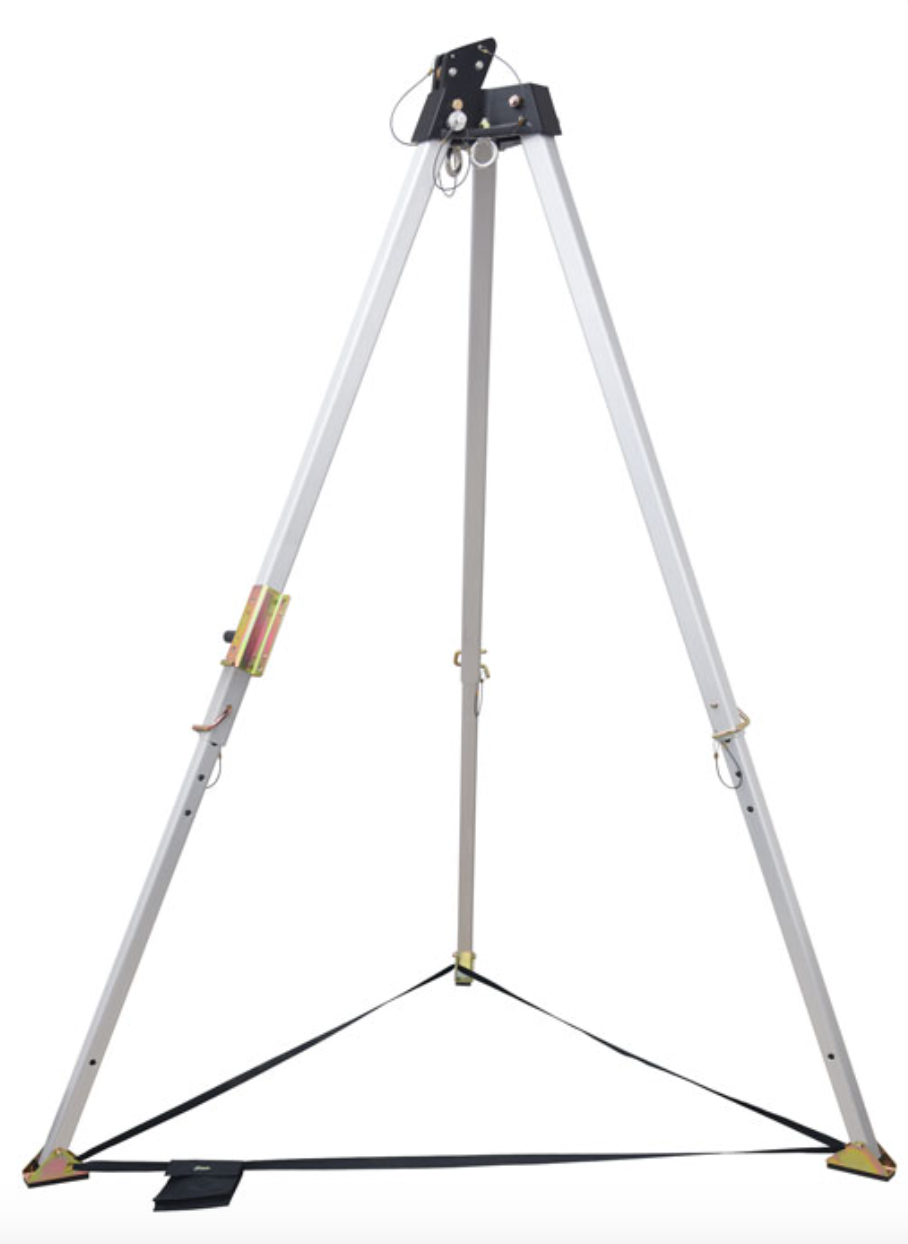

7ft Confined Space Tripod - FA 60 001 00

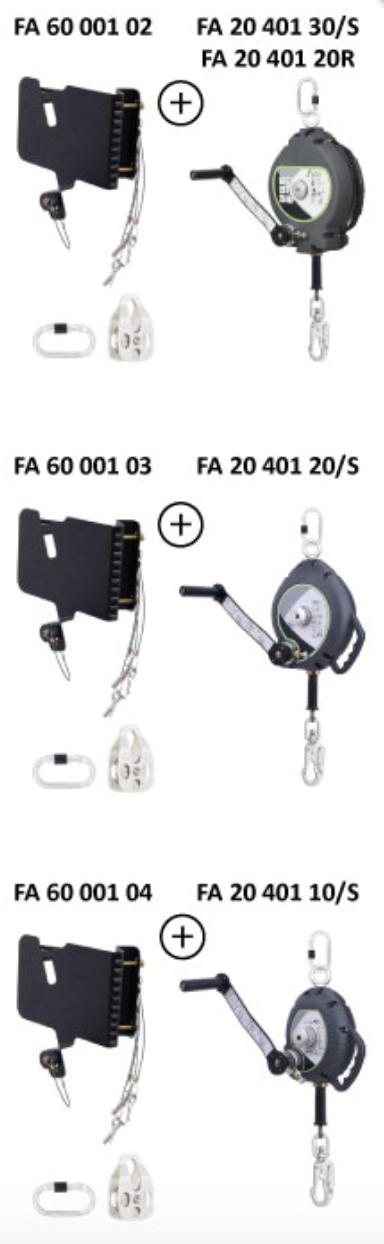

  • With two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable. Having two auxiliary eye bolts as attachment points. Steel support-shoes provided with rubber sole to increase friction and impart more stability. Every Tripod is provided with inbuilt fixture for attaching our winches FA 60 003 20 / FA 60 003 30 / FA 60 023 20 / FA 60 023 20R. Every Tripod is provided with Tripod Bag.
  • Adjustable height: 1.15 mtr to 2.15 mtr.
  • Wheelbase: 1.08 mtr to 1.62 mtr.
  • Max Load Capacity: 500 KG under head / 250 KG on leg.
  • Breaking Strength: 20 kN.
  • Resistance: 12 kN.
  • Conformity: BS EN 795 Type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808.
  • Material:

                                                                                  Spec

                                                                                  User Manual

                                                                                  Downloads

                                                                                  Duct rod data sheetProduct data sheet
