30t Hydraulic Jack Tower L

Name: 30t Hydraulic Jack Tower L
Brand: JACKITUP
SKU: 107-1-6
Price: 4260.00 GBP
Availability: InStock

JACKITUP SKU: 107-1-6

Pre-order today – estimated dispatch within 3–4 weeks

1 2

30 tonne Hydraulic Jack Tower L for heavy cable drum lifting. Adjustable spindle supports, outriggers included, suitable for 3000-4500mm drums. Read More

Product variants

£4,260.00

Sale TODAY'S PRICE £4,260.00

Pre Order

Tax included. Shipping calculated at checkout.

Quantity

Buy from our EU store

Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.

Estimated build / lead-time
Approximately 3 to 4 weeks from order.

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

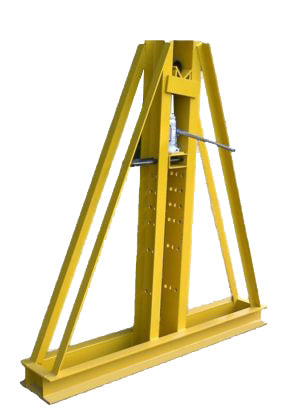

30.0t Hydraulic Jack Tower L

Designed for heavy cable drum lifts. Robust engineered construction with hydraulic jacks and adjustable height spindle support blocks.

30.0t L - supplied with outriggers.
Capacity SWL Per Pair is 30.0t (30,000kgs)
Minimum Drum Diameter 3000mm.
Maximum Drum Diameter 4500mm.
Base Area 2000x800mm,
Weight Per Pair 660kgs.
Painted finish.
Order SKU 107-1-6 if you require the Jack Towers to be supplied without spindle bar and locking collars.
Order the KIT under SKU 107-1-6-WSC if you require the Jack Towers to be supplied with spindle bar and locking collars.

30.0t Hydraulic Jack Tower KIT including Spindle and Collars (SKU 107-1-6-WSC)

This kit comes with 2 x Hydraulic Jacks, outriggers for extra stability, 1 x 127mm (O/Diameter) x 4000mm Length Spindle and 2 x locking collars.
Weight of Spindle - 200kgs

Specification

CAPACITY (COMBINED PER PAIR)	30.0t
LENGTH	2000 mm
HEIGHT	2500 mm
WEIGHT (PAIR OF JACKS)	660kgs
WEIGHT OF SPINDLE (127x 4000mm)	200kgs

Tech Area

Data Sheet

Legislation

LOLER

Cable Jacks general do not need to follow maintenance under LOLER, as the Jacks are only designed to be used to lift the drum high enough off the ground so it freely spins to pay out the cable and NOT for crane/high lifting purposes.

Cable Jacks general have been examined and where applicable are supplied generally to meet Supply of Machinery (Safety) Regulations EEC 2006/42/EC (as amended), and where relevant, Construction & Use Regulations EEC Directives 71/320 (as amended).

A certificate of Certificate of Conformity can be issued on request.

***Obviously should either the application or your own company policies require LOLER maintenance to be followed then this would be you to decide on.
