Worm Gear Hand Winch 2500kg - WW2500

This small worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the small worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage.

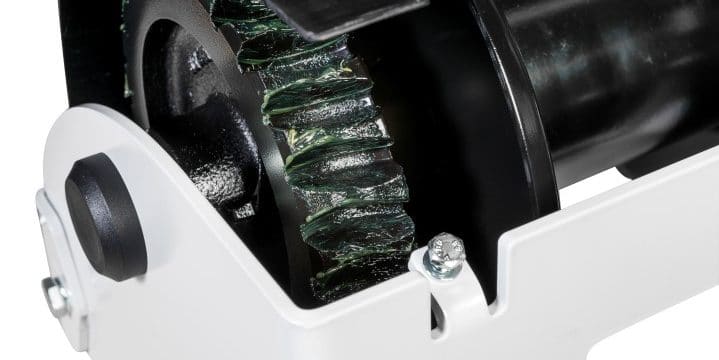

The Gebuwin worm gear hand winch has a transmission that consists of a worm shaft and wheel. Due to the fact that this transmission causes friction loss it also provides 50% of the braking system. The load pressure brake provides the other 50%. The combination of the braking system and robust design results in a very safe hoisting and pulling winch.

• Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
• Static safety factor 4
• Right angled, easy to grease worm transmission and maintenance free bearings

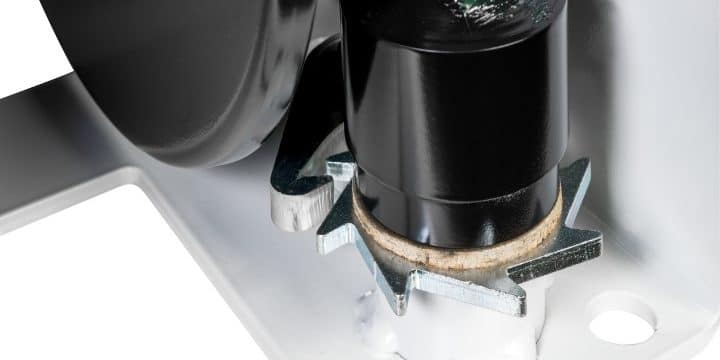

• Load pressure brake with double ratchet system for safe stable hold of the load

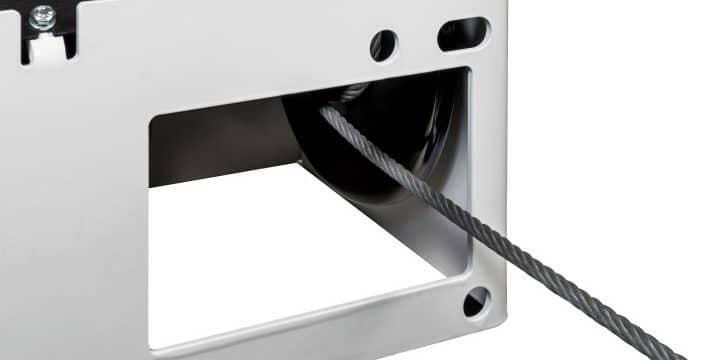

• Cable outlet upwards, downwards or at rear
• Adjustable crank, with ergonomic grip
• Suitable for wall and floor mounting
• Large rope capacity
• Simple and quick attachment
• Paint thickness 60 – 80 micron in 1 layer and in compliance with C1M – RAL7035 (grey)
• Corrosion resistant
• WW1000 and WW1500 are suitable for winch power tool AM5000
• Gebuwin 77276200

** These variants may have some build lead time, clarification can be made via a sales team member HERE

Options

1. GR = Standard model
2. GD = Grooved cable drum
3. EV = Zinc plated finish with a minimum of 6 micron
4. EX = ATEX certified, for zones 2 and 22

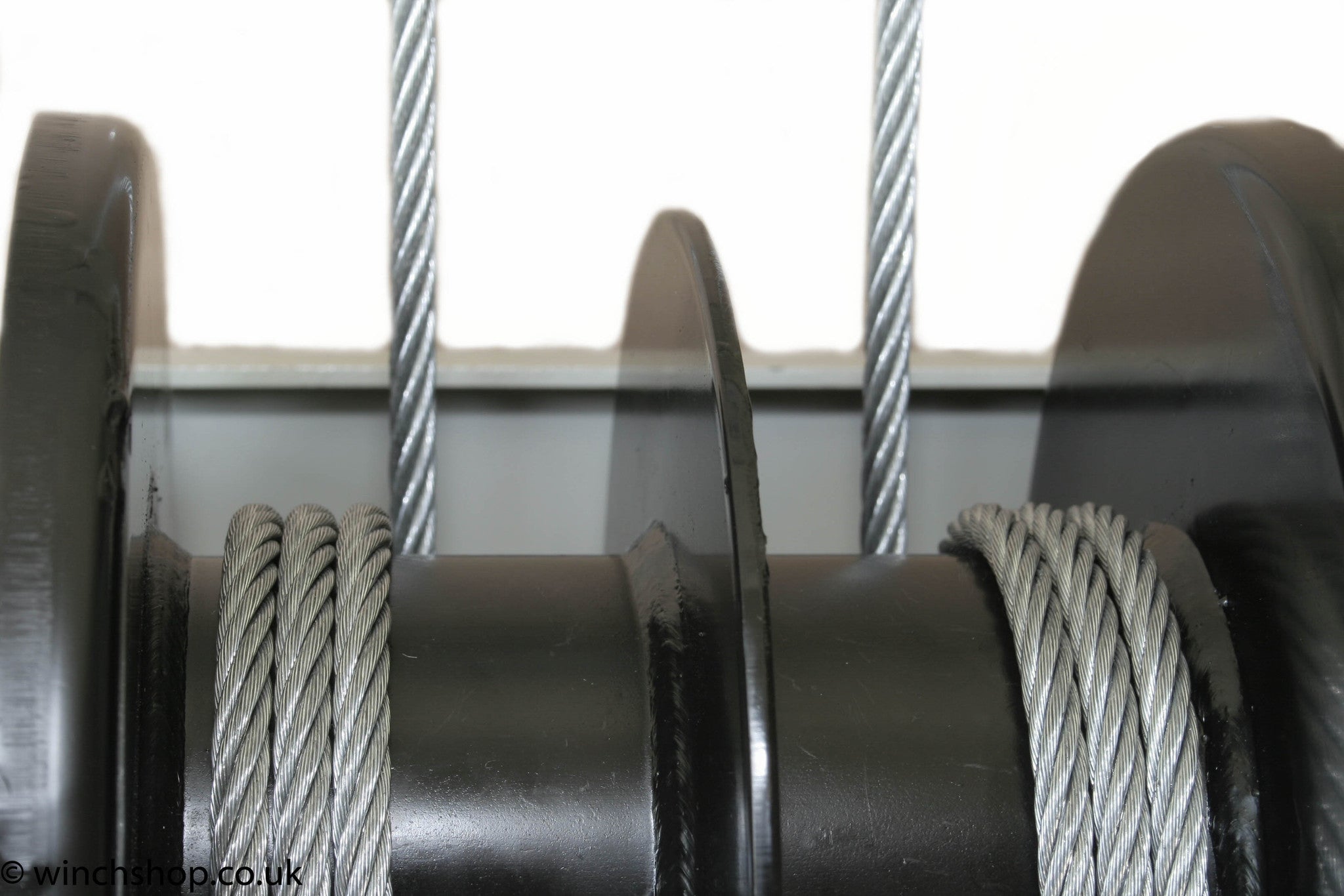

5. 2D = Twin Drum

Related Products

• Pulley options: LINK
• Wire rope: LINK
• Wire rope accessories: LINK

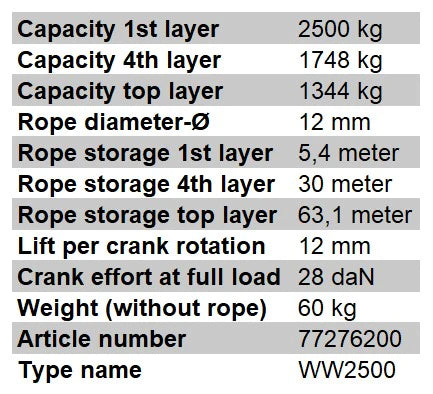

Spec
