20t Hydraulic Jack Tower

Name: 20t Hydraulic Jack Tower
Brand: JACKITUP
SKU: 107-1-4
Price: 2568.00 GBP
Availability: InStock

JACKITUP SKU: 107-1-4

Pre-order today – estimated dispatch within 3–4 weeks

1 2

Shop 20 tonne hydraulic jack towers for safe lifting of heavy cable reel drums, including SWA cable reels. Durable, reliable, and built to order. Read More

Product variants

£2,568.00

Sale TODAY'S PRICE £2,568.00

Pre Order

Tax included. Shipping calculated at checkout.

Quantity

Buy from our EU store

Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.

Estimated build / lead-time
Approximately 3 to 4 weeks from order.

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

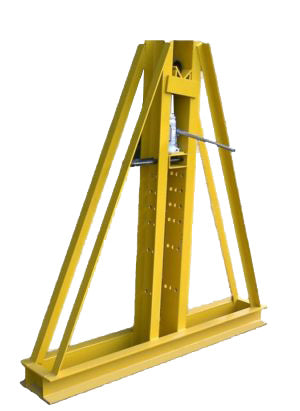

20t Hydraulic Jack Towers for Lifting Cable Reel Drums - without outriggers

Our 20 tonne hydraulic jack towers are the ideal solution for safely and efficiently paying out heavy cable reel drums, including those loaded with SWA (Steel Wire Armoured) cable. Designed for reliability and ease of use, these robust towers provide secure support during cable handling operations, making them essential for utility, construction, and industrial worksites.

Built to withstand demanding conditions, the hydraulic system allows for smooth, controlled lifting while ensuring operator safety. With a high load capacity, these jack towers are perfectly suited to managing large cable reels, reducing manual handling risks and saving time on site.

Whether you’re pulling, paying out, or storing SWA cable reels, our hydraulic jack towers deliver the strength, durability, and performance you need to get the job done right.

Designed for heavy drum lifts. Robust engineered construction with hydraulic jacks and adjustable height spindle support blocks.

20 Tonne Capacity SWL Per Pair.
Minimum Drum Diameter 1480mm.
Maximum Drum Diameter 3400mm.
Base Area 1830x285mm,
Weight Per Pair 370Kgs.
Note this model does not come with outrigger legs, if you require these please see SKU 105-1-5

This 20.0t Hydraulic Jack Tower kit is comprised of:

2 x Hydraulic Jacks
1 x 101mm Diameter x 2900mm Length Spindle Bar
2 x locking collars.

Specification

CAPACITY (COMBINED PER PAIR)	20.0t
FINISH	Painted
MINIMUM DRUM DIAMETER	1480mm
MAXIMUM DRUM DIAMETER	3400mm
LENGTH	1830mm
HEIGHT	1830mm
BASE AREA	1830 x 285mm
WEIGHT (PAIR OF JACKS ONLY, SPINDLE EXTRA)	370kgs

Tech Area

Data Sheet

Legislation

LOLER

Cable Jacks general do not need to follow maintenance under LOLER, as the Jacks are only designed to be used to lift the drum high enough off the ground so it freely spins to pay out the cable and NOT for crane/high lifting purposes.

Cable Jacks general have been examined and where applicable are supplied generally to meet Supply of Machinery (Safety) Regulations EEC 2006/42/EC (as amended), and where relevant, Construction & Use Regulations EEC Directives 71/320 (as amended).

A certificate of Certificate of Conformity can be issued on request.

***Obviously should either the application or your own company policies require LOLER maintenance to be followed then this would be you to decide on.
