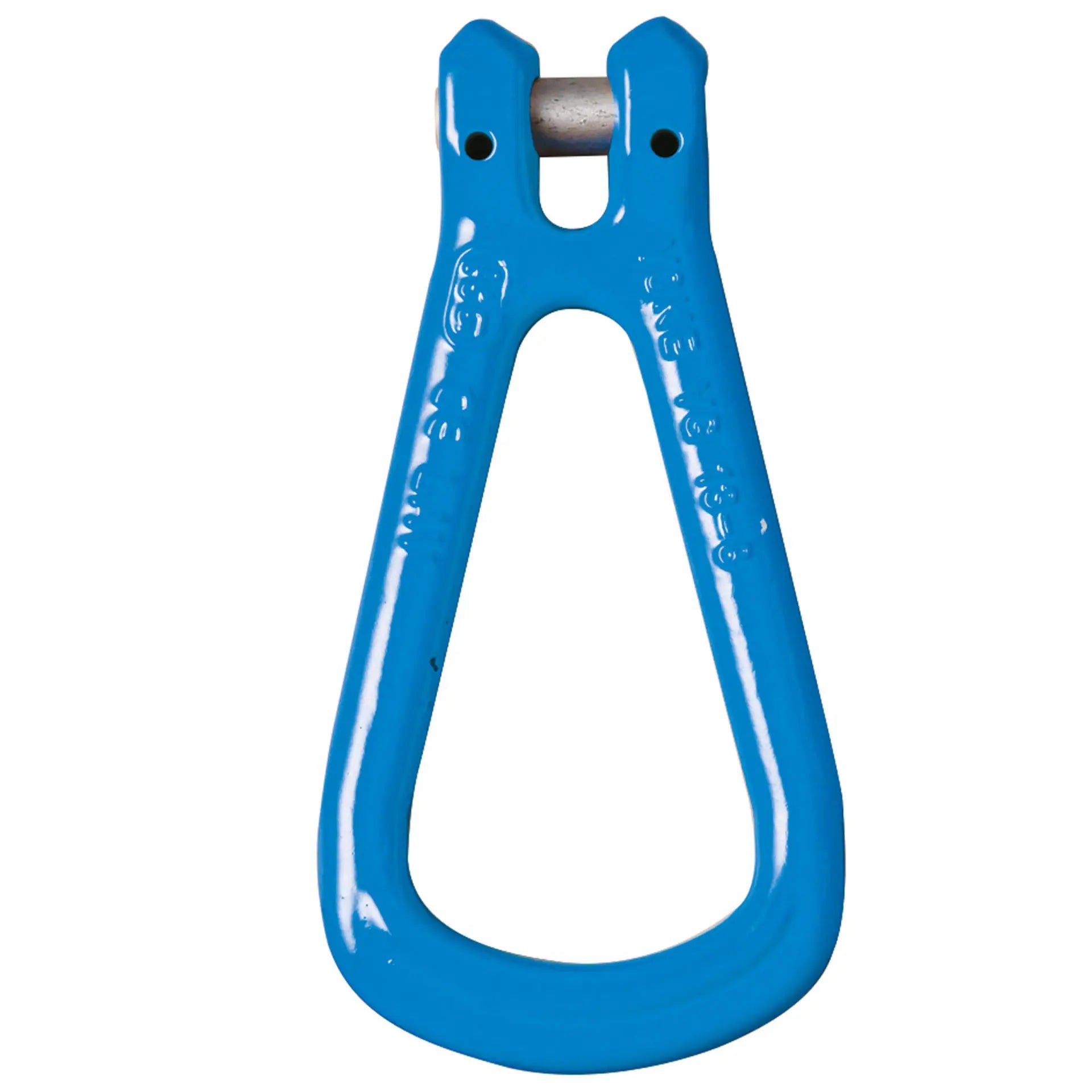

YOKE X-059 Grade 100 Clevis Master / Reevable Egg Link
YOKE SKU: 276-65-1
YOKE X-059 Grade 100 Clevis Master / Reevable Egg Link
YOKE X-059 Grade 100 Clevis Master / Reevable Egg Link Hook Quenched and Tempered Alloy Steel At least 25% greater WLL than traditional G80 products Manufactured in accordance with... Read More
YOKE SKU: 276-65-1
Regular price
£18.36
Regular price
Sale
Sale price
TODAY'S PRICE
£18.36
Unit price
per
In stock
Tax included.
Shipping calculated at checkout.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description
YOKE X-059 Grade 100 Clevis Master / Reevable Egg Link Hook
- Quenched and Tempered Alloy Steel
- At least 25% greater WLL than traditional G80 products
- Manufactured in accordance with EN 1677- 1 and ASME B30.26
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
- Design Factor 4:1
- Fatigue rated to 20,000 cycles at 1.5 times the WLL
- Tempering temperature minimum 400°C
- Magnaflux crack detection is performed 100% on each batch
Spec
| SKU | Capacity (t) | For Grade 100 Chain (mm) | Weight (kg) |
| 276-65-1 | 2.5 | 7, 8 | 1 |
| 276-65-2 | 4 | 10 | 1.6 |
| 276-65-3 | 6.7 | 13 | 3.3 |
| 276-65-4 | 10 | 16 | 5.6 |
Downloads
Product Questions & Answers
Product Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.

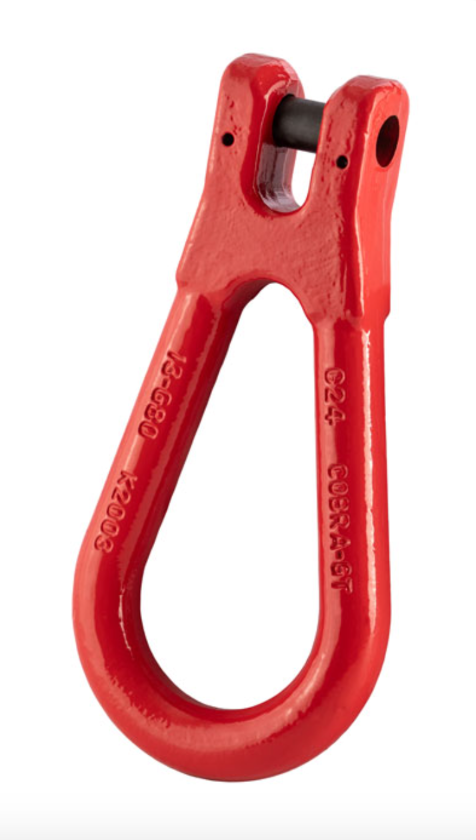

GT Cobra Grade 80 Clevis Reevable Egg Link
