Yale HTG Geared Trolley 8000kg – Beam Width 125-310mm

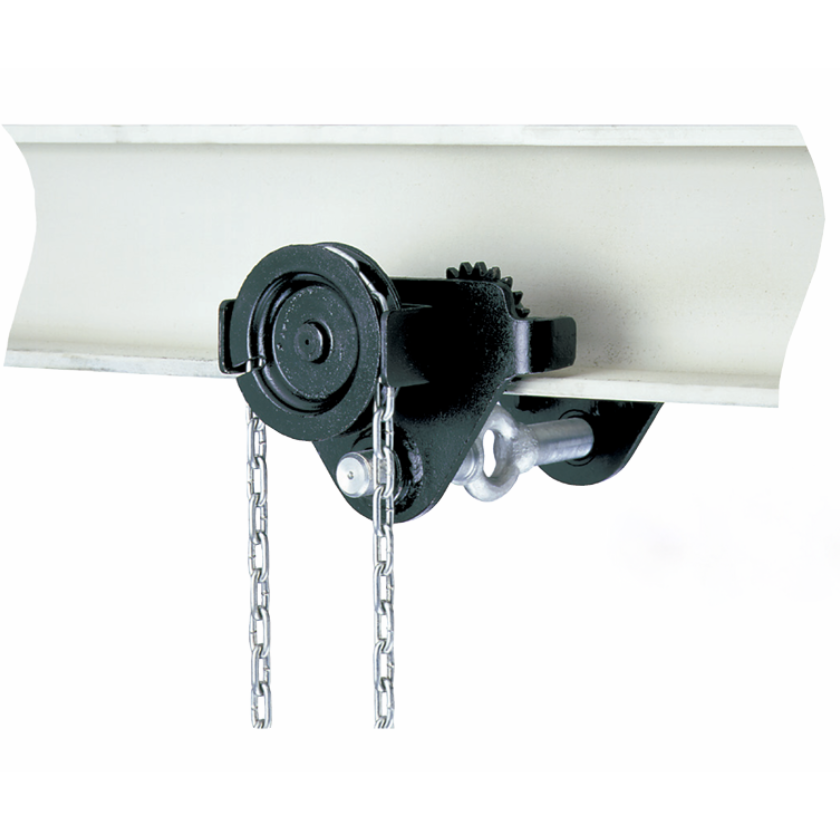

Yale HTG 8000-B Geared Trolley - 8000kg Capacity, Beam Flange Width 125-310mm

The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment. Available in two versions, HTP Push trolley and HTG Geared trolley.

Features

• It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
• Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
• Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right (up to 5000 kg capacity, from 8000 kg upwards the traverse is adjusted via sleeves and washers).
• The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1).

Optional extra costs options up to 20000 kg capacity:

• Rotating hand chain guide.

• Stainless steel hand chains.

• Locking device to secure the trolley in position on the beam (park position e.g. on ships).
• Both versions are also available with high-temperature bearings up to 350°. From 250° C, however, the load capacity is reduced to 90 % of the nominal load and from 300° C the corresponding capacity is reduced to 80 % of the nominal load.

All capacities:

• Buffer

Info

Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
