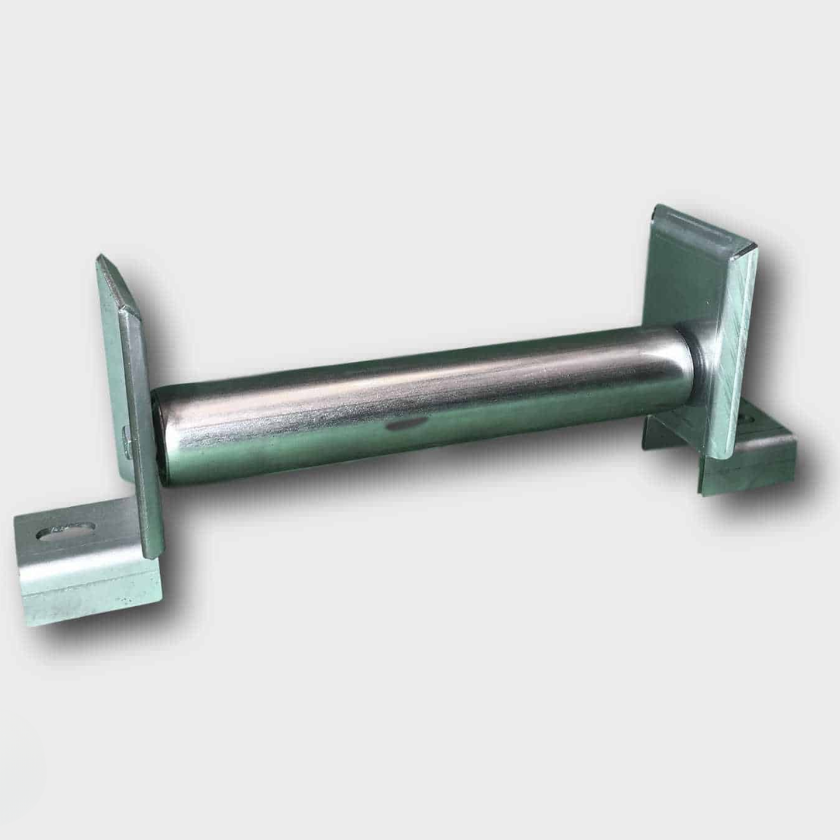

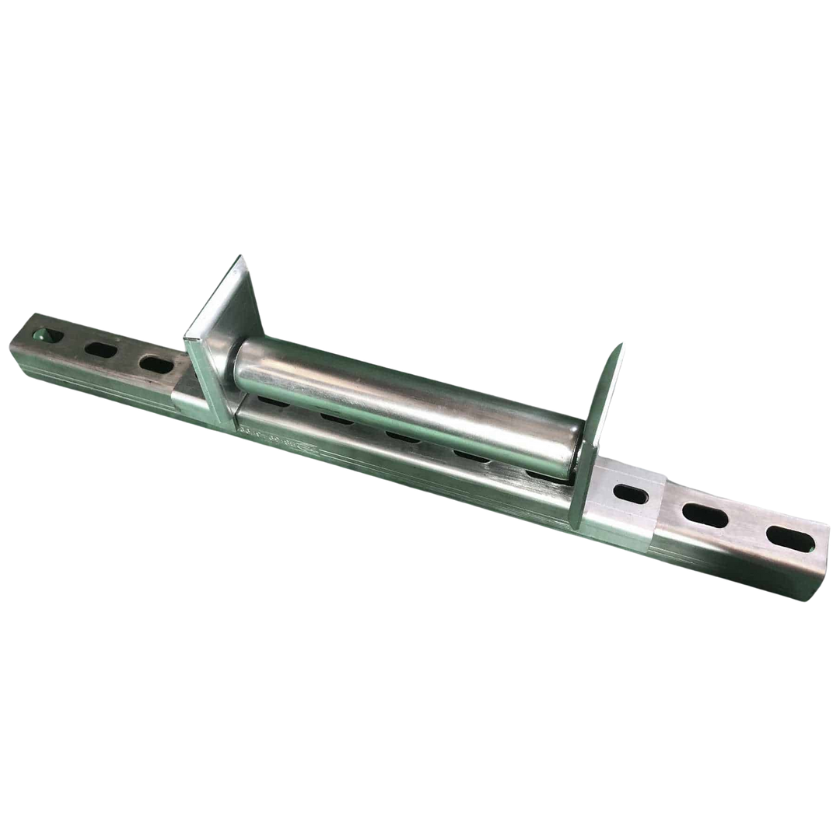

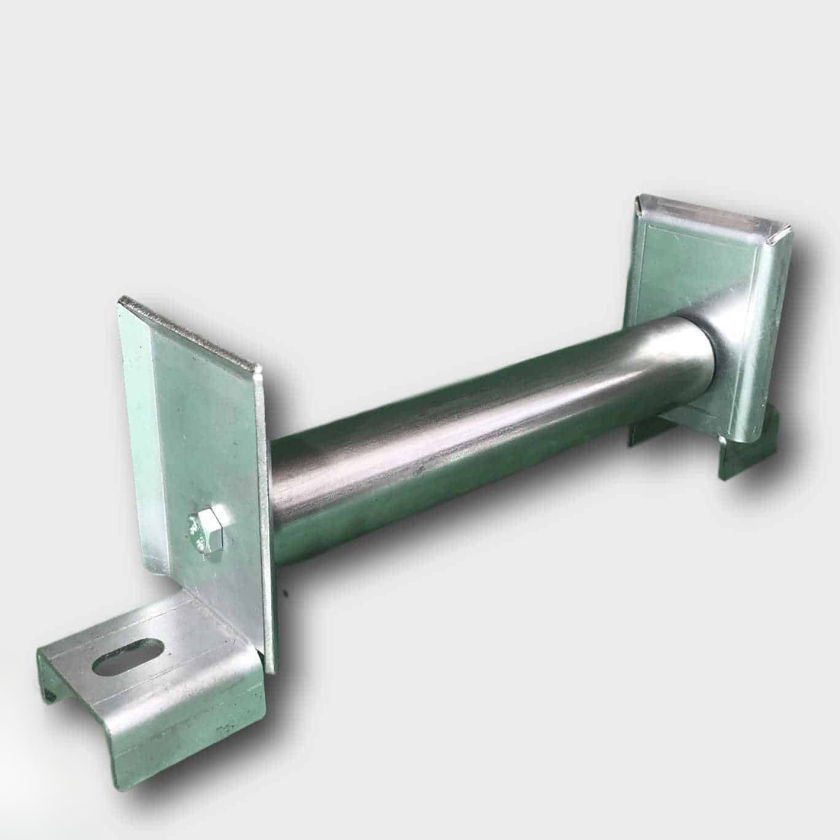

The EPD 175mm Unistrut Roller is a heavy-duty cable roller designed for direct fixing to 42mm Unistrut, flat plate, or square box section up to 40mm. Built for durability and smooth operation, it ensures efficient cable guiding in ducting, trunking, and site installations.

Key Features

• Direct fixing onto 42mm Unistrut, flat plate, or square box section up to 40mm.

• 175mm wide gravity roller (275mm overall length) for smooth cable guiding.

• All-steel construction with zinc plated finish for strength and corrosion resistance.

• 40mm diameter roller with tapered edges to protect cables during pulling.

• Sealed precision roller bearings for smooth, reliable operation.

• Slotted holes for flexible mounting and easy installation.

• Compact & lightweight – 27.5cm x 8cm x 10cm (12cm overall above Unistrut), weighing only 1kg.

• Custom roller lengths available to order for specialist applications.
