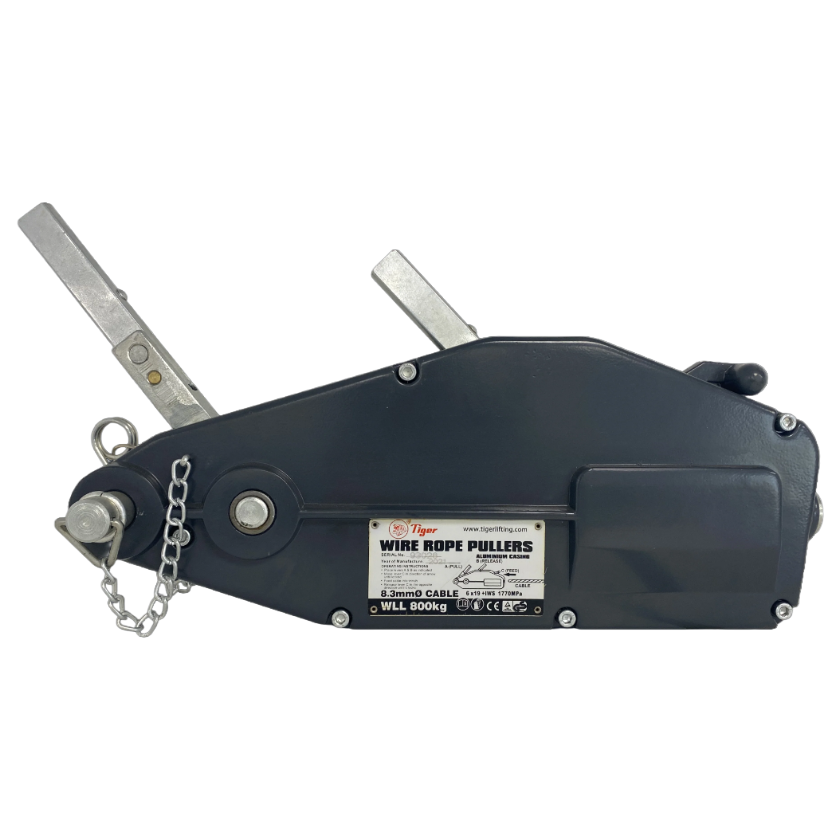

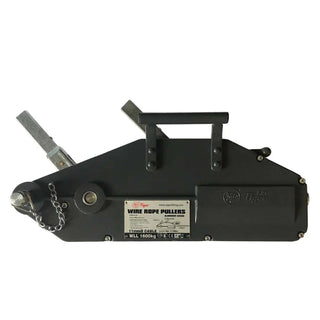

Wire Rope Puller TRPA from Tiger with Aluminium Casing - 800kg Lift and 1200kg Pulling Model

Tiger wire rope pulling machines are suitable for pulling, lifting, tensioning and releasing in any direction, with unlimited rope length.

Suitable for rescue operations, safe extraction of stuck vehicles, movement of heavy equipment and the removal of trees and other agricultural operations.

They are available in light and compact aluminium or pressed steel construction for applications where aluminium is not recommended.

These units meet and exceed all the requirements within BS EN 13157:2004+A1:2009.

• Lifting capacity range from 800kg to 5,400kg.
• Pulling capacity range from 1,200kg to 8,000kg.
• Corrosion free aluminium alloy casing or steel versions available
• Rope clamp system easily disengaged with a lever allowing smooth installation of wire rope
• Shear pins can be replaced without removing the load
• Individually serial numbered for traceability
• Lightweight manual pulling machines - simple and safe to operate by one person.
• Usable at horizontal, vertical and angled working positions.
• Equipped with an anchor bolt offering numerous connection possibilities
• Spare shear pins supplied
• Supplied with relevant certification and user instructions
• Compact high-strength
• Available with no rope, 20m, 30m or 40m length steel wire with eye hook as standard (Please select the option you require from the drop down menu).  ****Please note 30m, 40m and 60m lengths can sometimes have a 3-4 working day lead-time if not in stock at our warehouse****.
• Overall weight of puller will increase by 4.25kg per 10m of wire rope.
• Custom lengths also available, please email sales@rigginguk.co.uk for pricing and availability.
• Overload protection built in, with a shearing pin in the forward lever
• Parallel clamping system providing evenly distributed grip at a lower force, resulting in less rope wear.
• If you require spare or replacement shear pins they can be purchased via this link.
• If you require replacement or spare 8.3mm diameter ropes these can be purchased via this link.

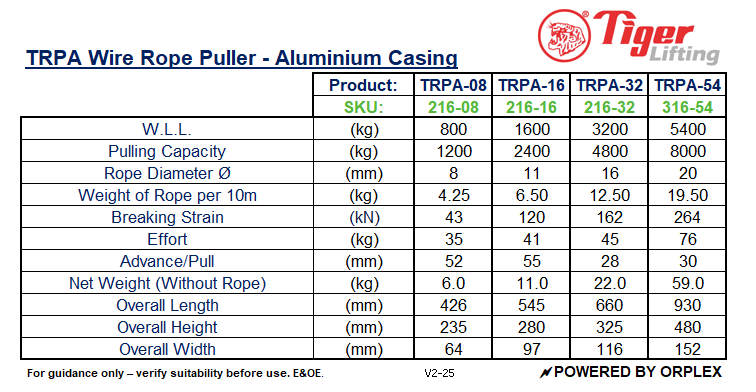

Download - Technical-sheet-TRPA-wire-rope-pullers-202409.pdf
