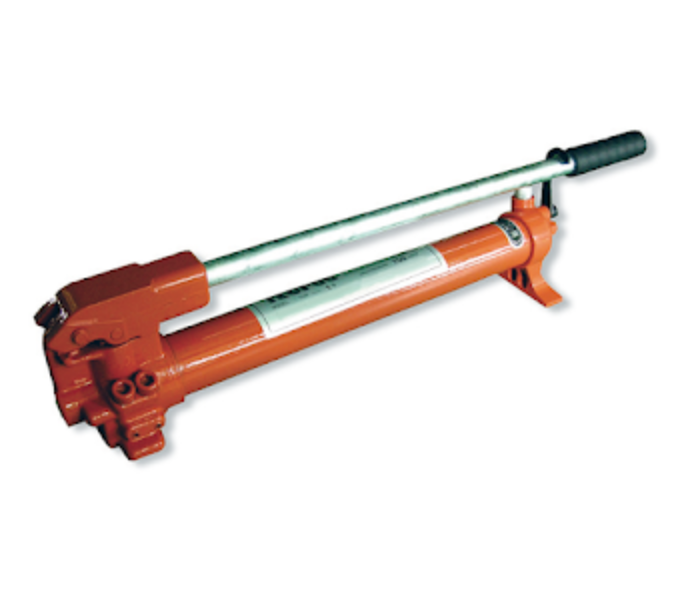

Tecpos Hydraulic Hand Pump

Name: Tecpos Hydraulic Hand Pump
Brand: Tecpos
SKU: 286-708-5
Price: 317.83 GBP
Availability: InStock

Tecpos SKU: 286-708-5

1 1

Tecpos Hydraulic Hand Pump Volume per stroke: High Pressure: 0.5-4.7 cc/stroke. Low Pressure: 5-85 cc/stroke. Orange painted finish. Maximum Pressure: 700 Bar. Certification available 2.1 DoC THP/THPA Specification SKU Reservoir Capacity Volume Per Stroke cc Volume Per Stroke cc Piston Dia. mm Piston Dia. mm Piston Str Read More

£317.83

Sale TODAY'S PRICE £317.83

In stock

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

Tecpos Hydraulic Hand Pump

Volume per stroke:
High Pressure: 0.5-4.7 cc/stroke.
Low Pressure: 5-85 cc/stroke.
Orange painted finish.
Maximum Pressure: 700 Bar.
Certification available 2.1 DoC
THP/THPA

Specification

SKU	Reservoir Capacity	Volume Per Stroke cc	Volume Per Stroke cc	Piston Dia. mm	Piston Dia. mm	Piston Stroke	Max Hand Effort	Weight	Working Pressure
	cc	High Pressure	Low Pressure	High Pressure	Low Pressure	mm	kgs	kgs	kgf/cm2
286-708-5	800	2	13	11	28	20.5	29	4	700

SKU	Reservoir Capacity	Volume Per Stroke cc	Volume Per Stroke cc	Piston Dia mm	Piston Dia mm	Piston Stroke	Max Hand Effort	Weight	Working Pressure
	cc	High Pressure	Low Pressure	High Pressure	Low Pressure	mm	kgs	kgs	kgf/cm2
286-708-6	1,600	2.0	16.5	11	32	20.5	44	8	700

SKU	Reservoir Capacity	Volume Per Stroke (cc)	Volume Per Stroke (cc)	Piston Dia. (mm)	Piston Dia. (mm)	Piston Stroke	Weight	Quality of material	Working Pressure
	(cc)	High Pressure	Low Pressure	High Pressure	Low Pressure	(mm)	(kg)		(kgf/cm2)
286-708-7	2300	2.3	31	12	44	20.5	10.5	Aluminium	700

Manuals

Download - Tecpos_ESP-THP_Hand_Pump_-_UIM.pdf

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

Good day, I would like to ask for a copy of manufacturer's manual for TECPOS THPA-1C – 1600cc. Does the equipment need to be certified by authorized testing facility annually in order to maintain its suitability for winch brake testing. Regards, C/O Lambert VLGC Albert II Northern Marine Management

In answer to your question then yes..

Risk assessment needs to be done to determine the frequency of testing, depending on use absolute minimum for winch brake testing 12 months but can be upwards of every 6 months depending on its usage – this is down to the user/tester to determine.

Ensure they follow either PUWER or LOLER depending on type of usage for Pump.

Assuming they are used to lift with a TECPOS cylinder so LOLER regulations come into effect and this is recommended by our Hydraulic partners.
