Pfaff SW-K LAMBDA Console-mounted rope winch (BGVC1) - Dual Lines
Pfaff-silberblau SKU: 601-1-2
Pre-order today – estimated dispatch within 3–4 weeks
SW-K LAMBDA (300KG) The Pfaff SW-K Lambda BGVC1 wire rope winch is designed for precision lifting and load-holding applications. Engineered with a grooved drum for single-layer winding, it offers extended... Read More
Regular price
£1,892.50
Regular price
Sale
Sale price
TODAY'S PRICE
£1,892.50
Unit price
per
Pre Order
StockTax included.
Shipping calculated at checkout.
Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.
Estimated build / lead-time
Approximately 3 to 4 weeks from order.
Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description
SW-K LAMBDA (300KG)

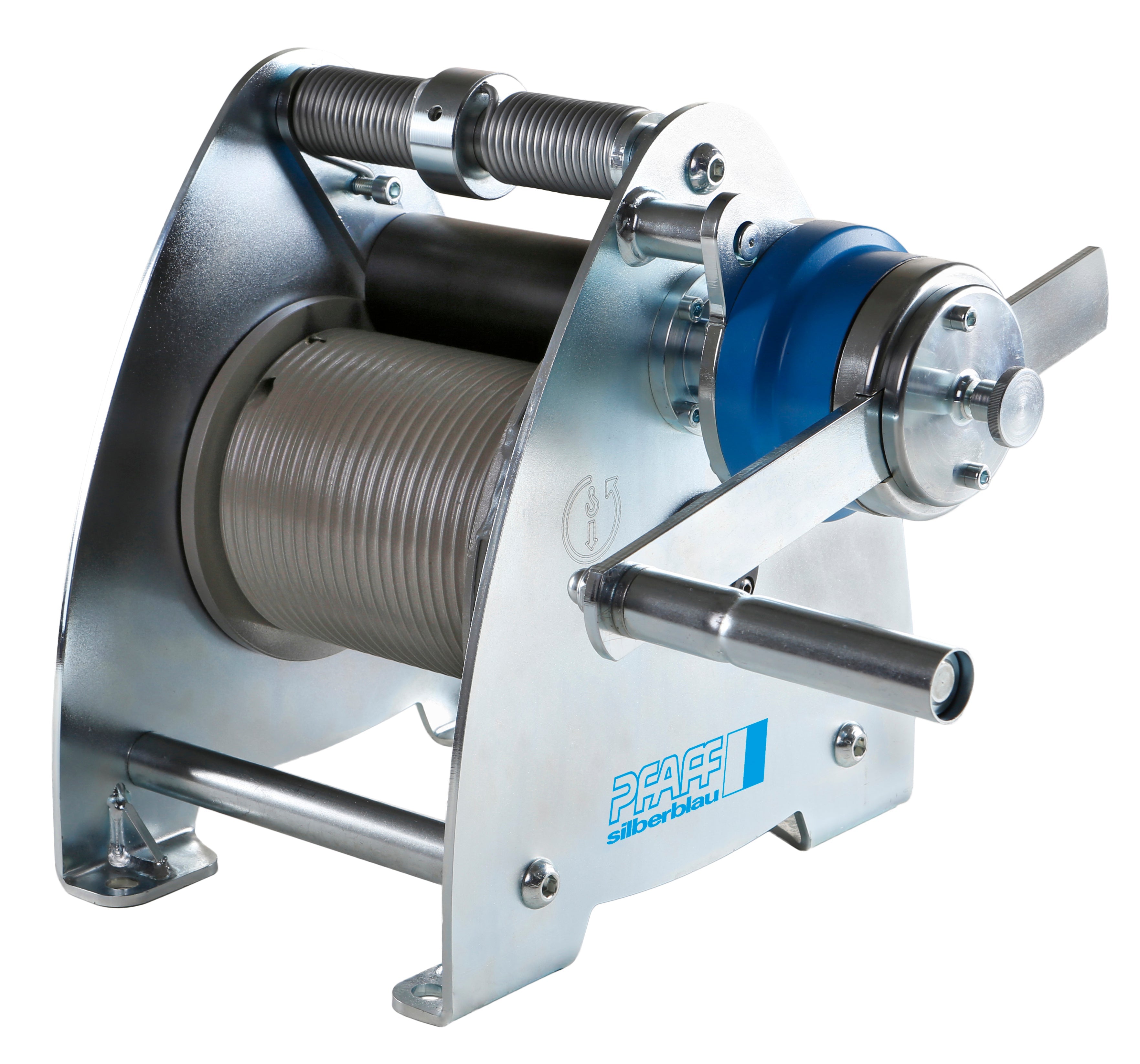

The Pfaff SW-K Lambda BGVC1 wire rope winch is designed for precision lifting and load-holding applications. Engineered with a grooved drum for single-layer winding, it offers extended wire rope service life with an 18:1 ratio between drum and rope diameter. The safety spring double brake system ensures automatic load-holding at any position, making it ideal for demanding environments.
Recommended Wire Rope: DIN 3060 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope.
Key Features
- Grooved drum for single-layer winding, enhancing wire rope longevity.
- 18:1 drum-to-rope ratio increases service life.
- Double safety spring brake system automatically holds the load in any position.
- Spring-loaded rope pressure drum for improved coiling.
- Spur gear drive ensures efficient load handling
- Gear rated to twice the nominal load for added durability.
Optional Accessories
- Drum extension for increased wire rope
capacity. - Special grooved drum for multi-layer wire rope
winding. - Wire rope (sold separately)
Safety Guidelines:
-
Operation, installation, and maintenance must be performed by qualified personnel.
-
Regular inspections are mandatory:
-
Daily checks: Brake function, rope condition, load attachment, and support structure.
-
Annual UVV inspection by a certified expert.
-
Comprehensive inspection at least every 4 years or after modifications.
Prohibited Actions:
-
Never leave a load hanging unsecured.
-
Do not allow the rope to swing or drop freely.
- Avoid touching moving parts
Rope Guidelines:
-
Must be wound in a single layer on the grooved drum.
-
Minimum 3 full windings must remain on the drum when fully extended.
-
Regularly inspect according to DIN 15020 standards.
