Steel Zinc Plated Sheaves with Sealed Ball Bearings (Model No. 163K) 300mm / 4000kg / 16mm

Name: Steel Zinc Plated Sheaves with Sealed Ball Bearings (Model No. 163K) 300mm / 4000kg / 16mm
Brand: ORPTECH
SKU: 182-163K-50
Price: 144.00 GBP
Availability: InStock

ORPTECH SKU: 182-163K-50

1 1

Steel Rope Pulleys with Sealed Ball Bearings (Model No. 163K) Zinc-plated steel rope pulleys with turned groove machining and sealed ball bearings, ensuring durability and smooth operation. Specifications: Pulley Capacity: 100... Read More

£144.00

Sale TODAY'S PRICE £144.00

In stock (1)

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Buy from our EU store

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

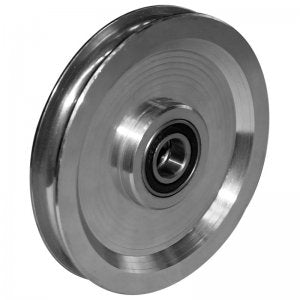

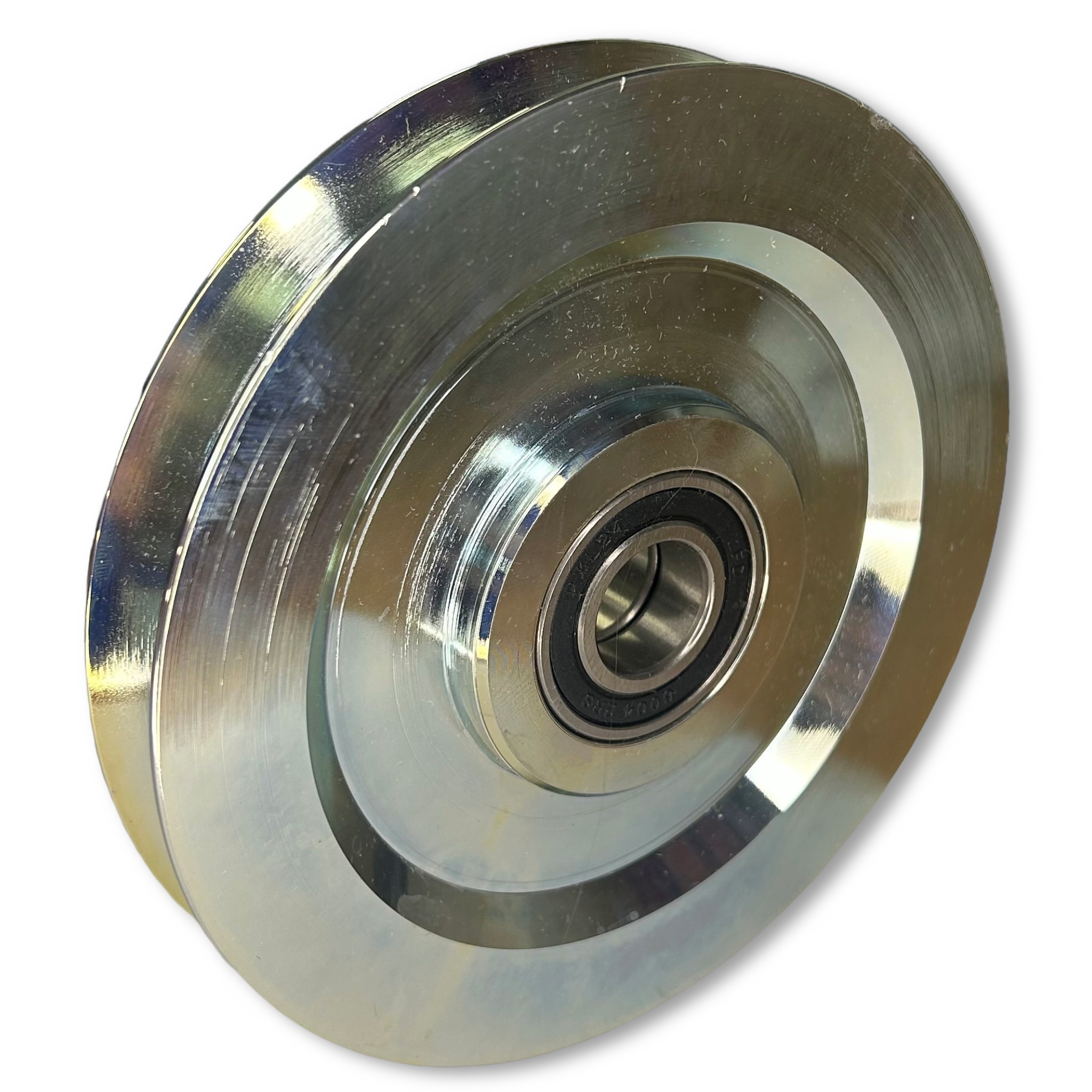

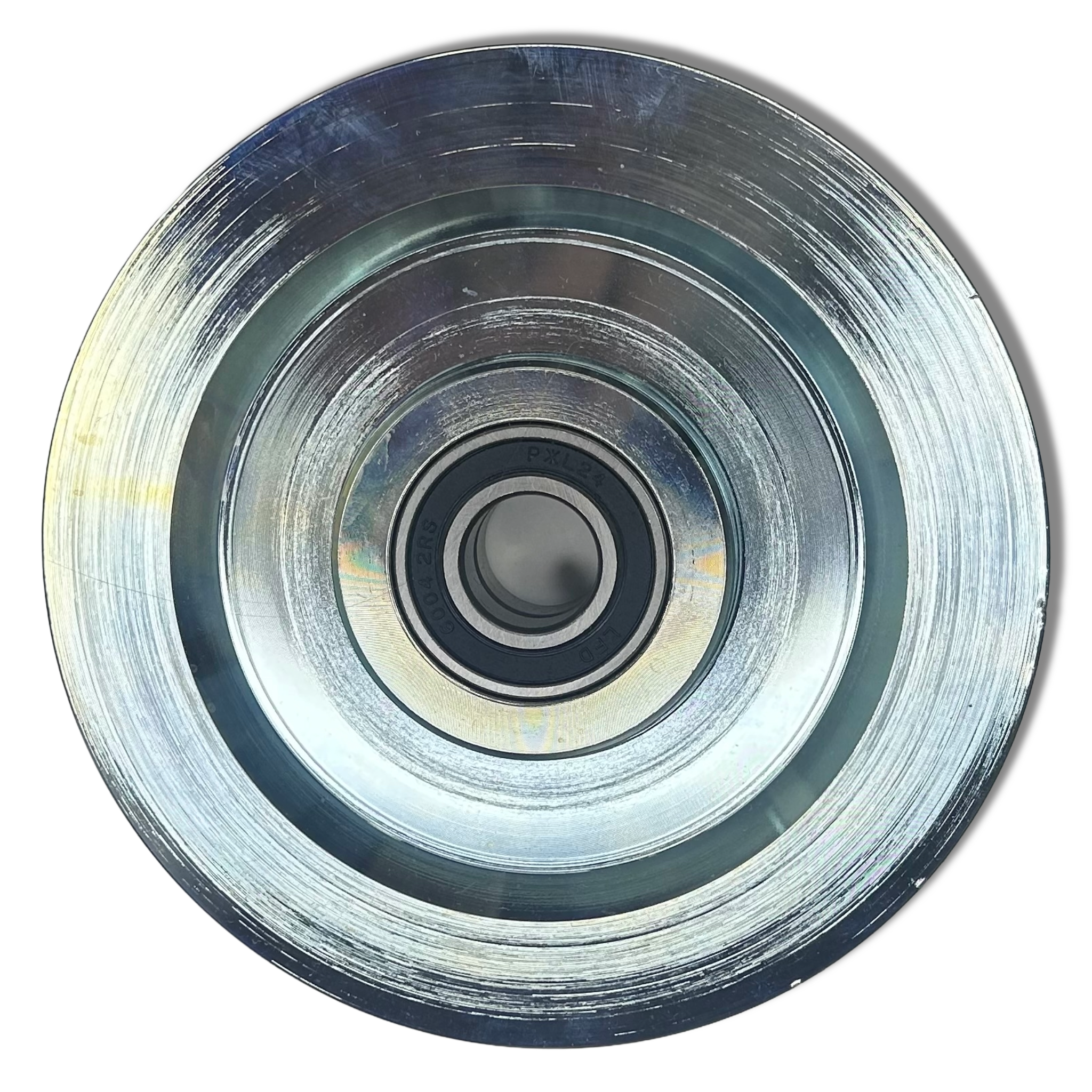

Steel Rope Pulleys with Sealed Ball Bearings (Model No. 163K)

Zinc-plated steel rope pulleys with turned groove machining and sealed ball bearings, ensuring durability and smooth operation.

Specifications:

Pulley Capacity: 100 kg to 4000 kg
Pulley Diameter: 50 mm to 300 mm
Material: Zinc-plated steel sheaves

Lead Times (if not in stock):

Diameters up to 150 mm: Approximately 3 to 4 weeks from order date
Diameters 200 mm and above: Approximately 12 weeks from order date

Note: For a formal quotation, please email sales@sales@rigginguk.co.uk

These pulleys are designed for robust performance in various applications, offering a wide range of capacities and diameters to meet diverse needs.

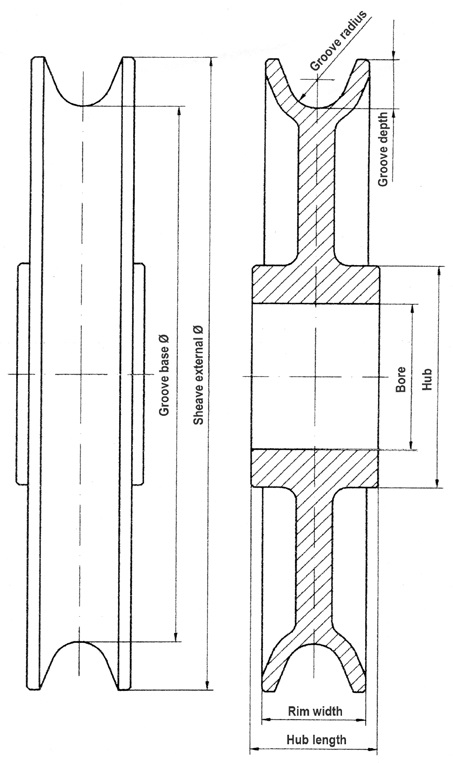

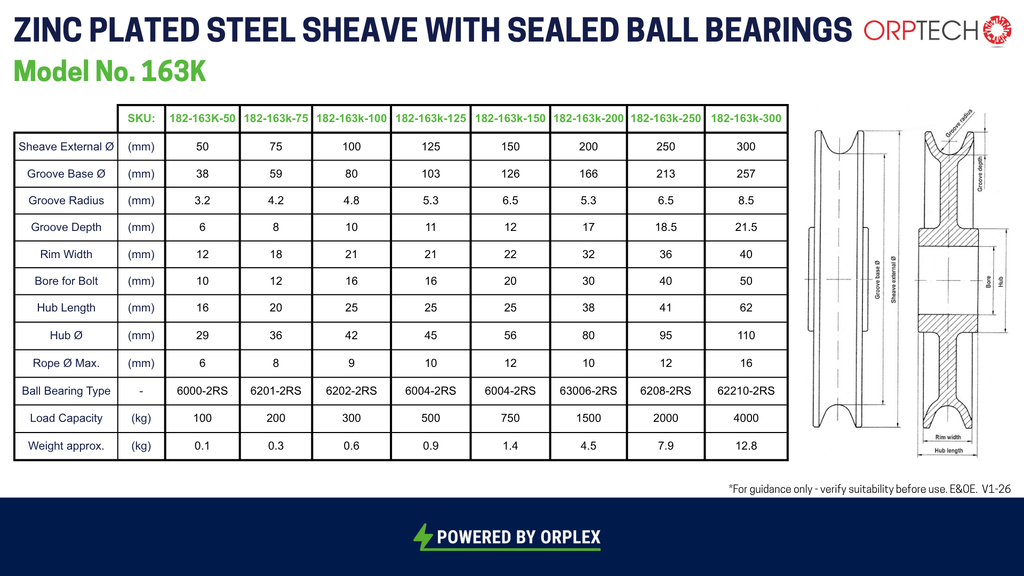

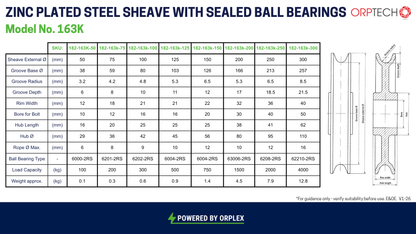

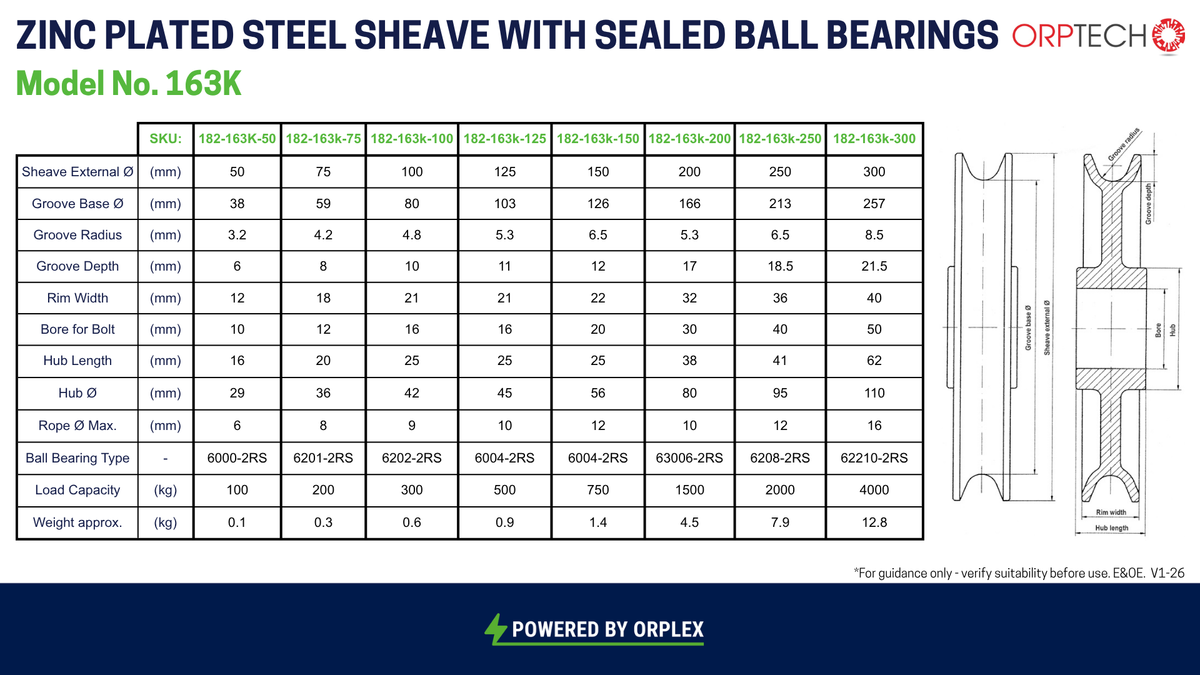

Specification

SKU		182-163K-50	182-163k-75	182-163k-100	182-163k-125	182-163k-150	182-163k-200	182-163k-250	182-163k-300
Sheave External Ø	mm	50	75	100	125	150	200	250	300
Groove Base Ø	mm	38	59	80	103	126	166	213	257
Groove Radius	mm	3.2	4.2	4.8	5.3	6.5	5.3	6.5	8.5
Groove Depth	mm	6	8	10	11	12	17	18.5	21.5
Rim Width	mm	12	18	21	21	22	32	36	40
Bore for Bolt	mm	10	12	16	16	20	30	40	50
Hub Length	mm	16	20	25	25	25	38	41	62
Hub Ø	mm	29	36	42	45	56	80	95	110
Rope Ø Max.	mm	6	8	9	10	12	10	12	16
Ball Bearing Type		6000-2RS	6201-2RS	6202-2RS	6004-2RS	6004-2RS	63006-2RS	6208-2RS	62210-2RS
Load Capacity (in kg.	kg	100	200	300	500	750	1500	2000	4000
Weight (in kg) approx.	kg	0.1	0.3	0.6	0.9	1.4	4.5	7.9	12.8
