SATURN SERIES Rigging Ring - Large

Name: SATURN SERIES Rigging Ring - Large
Brand: ISC
SKU: 298-20-32
Price: 171.54 GBP
Availability: InStock

ISC SKU: 298-20-32

Pre-order today – estimated dispatch within 1-2 weeks

1 3

Large SATURN Series Rigging Ring with 60kN WLL. Aluminium with hard-anodised, low-friction finish. Designed for high-load rigging setups, redirects & anchor slings. Read More

Product variants

£171.54

Sale TODAY'S PRICE £171.54

Pre Order

Tax included. Shipping calculated at checkout.

Quantity

Buy from our EU store

View more isc rigging pulleys

More From isc products

Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.

Estimated build / lead-time
Approximately 1 to 2 weeks from order.

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

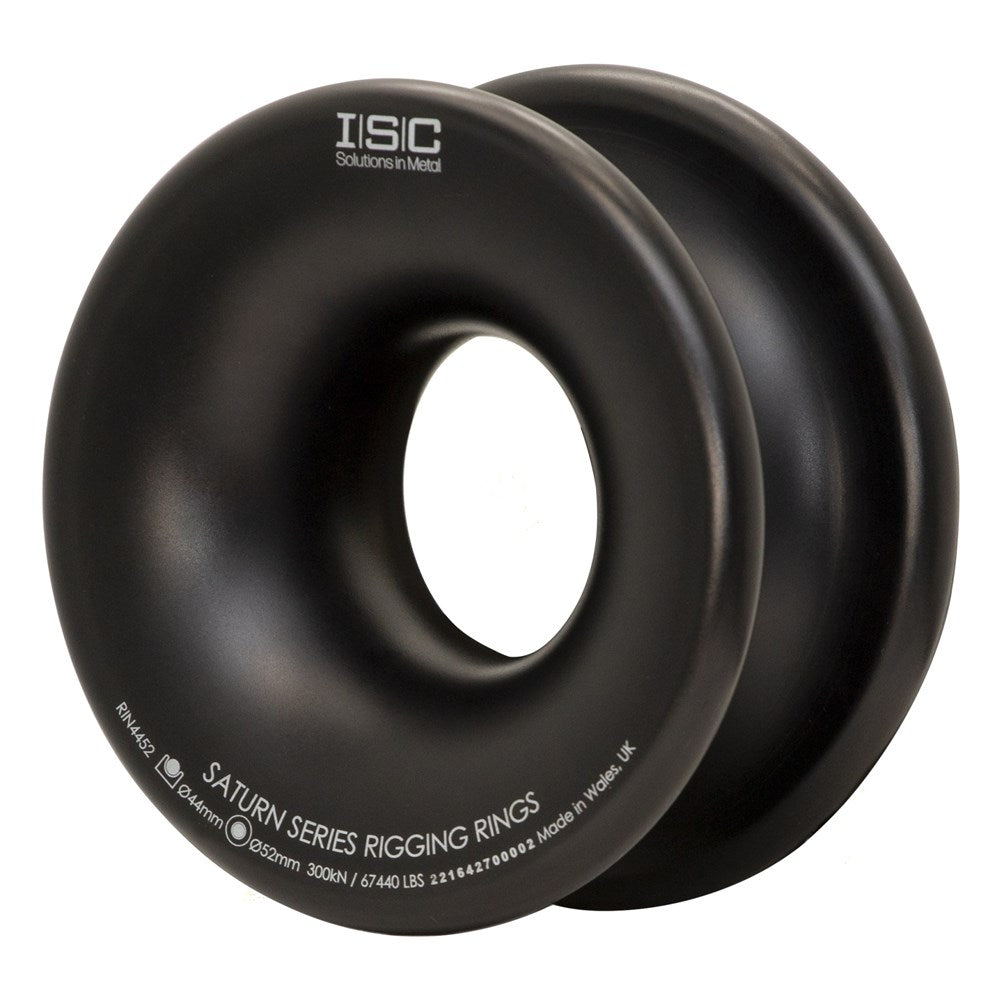

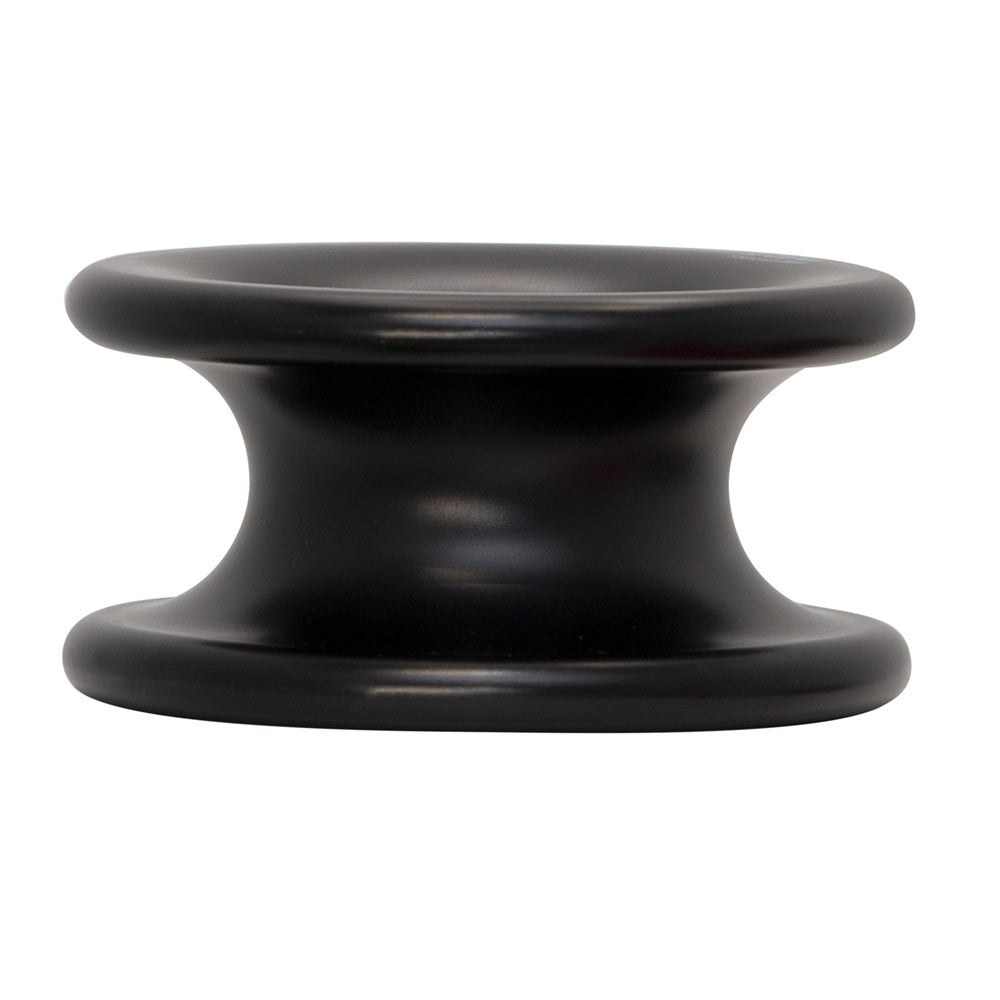

SATURN SERIES Rigging Ring- Large, WLL 60kN (13488lbf). CE 2006/43/EC

SATURN Series Rigging Rings are CNC Machined from solid Aluminium, with smooth radiused rope surfaces. The rings have a Hard-Anodised coating for durability and a polished, low-friction finish.

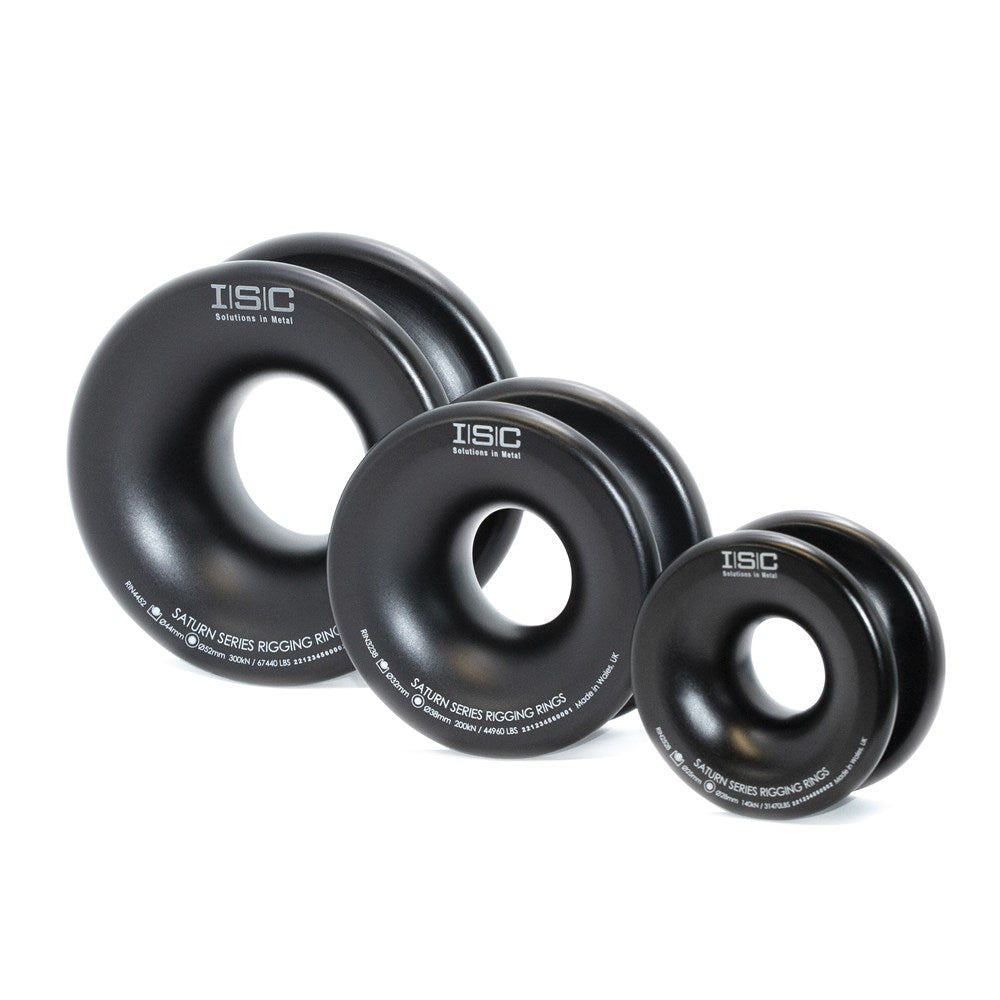

ISC SATURN Rings are available in three sizes and can be used in a variety of rigging configurations. SATURN Rings can also be spliced in to anchor slings by the supplier/user and used to create single/multiple redirects, to tailor the friction in a rigging system. Rigging rings are versatile, low maintenance and easy to inspect.

Overall Diameter 138mm (5.4")

Inner Diameter 52mm (2")

Groove Radius (rope path) 44mm (1.73")

WLL 60kN (13488lbf)
