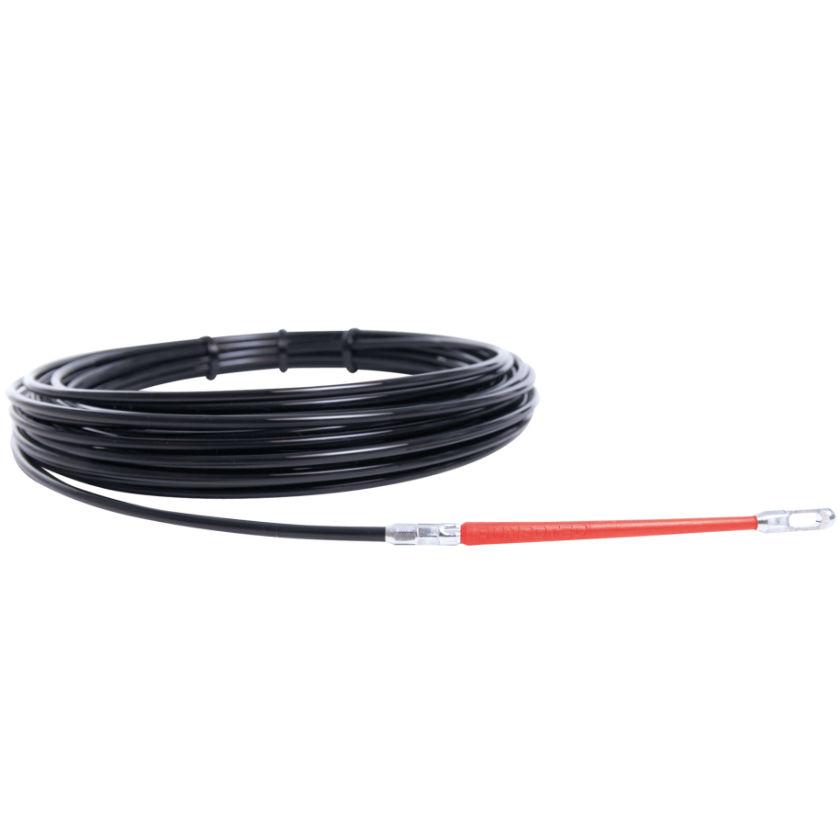

The RUNPO1 - special plastic strap Ø 4 mm with the patented RUNPOGLEITER at the tip and a detachable eyelet head at the end, is a favourable variant to the RUNPO 5. Perfectly suited for small pipe dimensions and shorter sections. The RUNPOGLEITER with large eyelet hole, the high total breaking load of 170 kg and the bending radius of 15 mm make the RUNPO1 a pull-in tool which is far ahead of conventional nylon straps.
Optimal application area: for pipe dimension Ø 16 mm - 32 mm

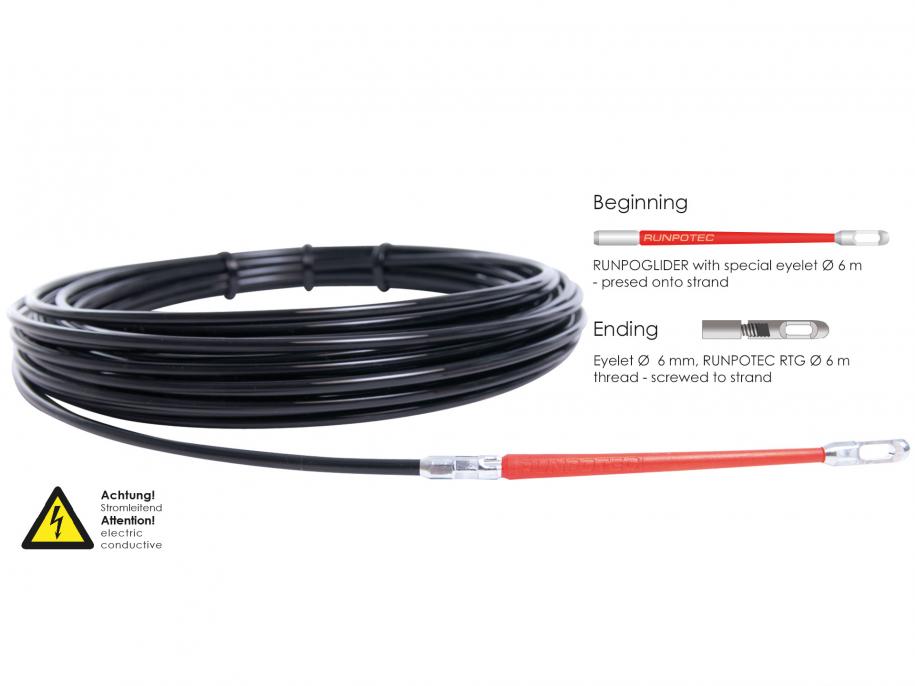

Scope of delivery: RUNPO 1 incl. 1 x pressed RUNPOGLEITER without twist compensation at the strap tip and 1 x screwed eyelet head (RUNPOTEC RTG Ø 6 mm) at the strap end
ADVANTAGES
- Fracture stable
- 170 kg total breaking load
- Patented RUNPOGLEITER with eyelet
- Strap end RUNPOTEC RTG Ø 6 mm thread

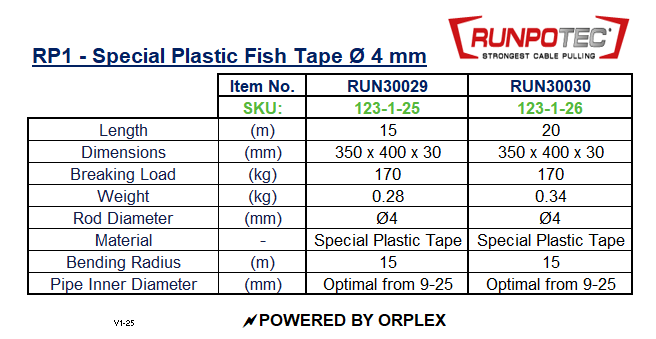

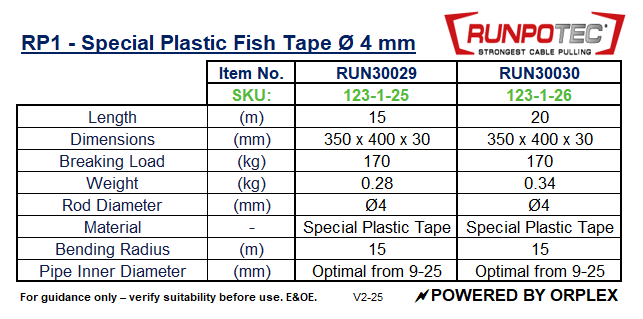

Spec (15m and 20m)
| Dimensions: | L 330 x B 330 x H 25 mm |
| Length: | 15 Meter |
| Bending radius: | 15 mm |
| Total breaking load: | 170 kg |
| Recommended tube-Ø: | 16 - 32 mm |
| Weight: | 0,22 kg |
| Material: | Special plastic tape |
| Ø Rod: | 4 mm |
| Thread: | RUNPOTEC Thread RTG Ø 6 mm |
| EAN-Code: |
9120045472097 |
| Dimensions: | L 330 x B 330 x H 30 mm |
| Length: | 20 Meter |
| Bending radius: | 15 mm |
| Total breaking load: | 170 kg |
| Recommended tube-Ø: | 16 - 32 mm |
| Weight: | 0,30 kg |
| Material: | Special plastic tape |
| Ø Rod: | 4 mm |
| Thread: | RUNPOTEC Thread RTG Ø 6 mm |
| EAN-Code: | 9120045472103 |
Downloads
Product Data Sheet
