Pfaff ZWW-L 1200kg Rack & Pinion Jack – 600mm Lift

Name: Pfaff ZWW-L 1200kg Rack & Pinion Jack – 600mm Lift
Brand: Pfaff-silberblau
Price: 734.21 GBP
Availability: OutOfStock

Pfaff-silberblau SKU: 601-27-5

Pre-order today – estimated dispatch within 3–4 weeks SKU: 601-27-5

1 4

Pfaff ZWW-L 1200kg Rack & Pinion Jack – 600mm Lift

Pfaff ZWW-L 1200/600 Rack & Pinion Jack – 1200kg Capacity, 600mm Lift Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads. Features Robust steel design with precisely machined... Read More

Pfaff-silberblau SKU: 601-27-5

View more pfaff silberblau mechanical jacks

More From pfaff

Product variants

£734.21

Sale TODAY'S PRICE £734.21

Pre Order

Tax included. Shipping calculated at checkout.

Quantity

Buy from our EU store

Pre-order today – estimated dispatch within 3–4 weeks SKU: 601-27-5

Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.

Estimated build / lead-time
Approximately 3 to 4 weeks from order.

View full details

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

Description

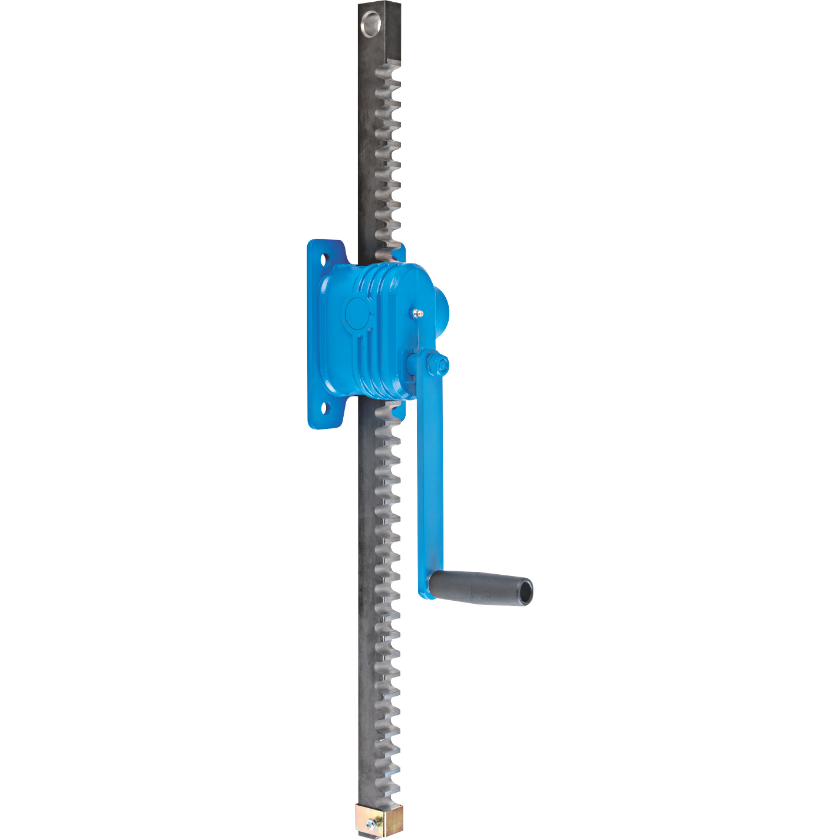

Pfaff ZWW-L 1200/600 Rack & Pinion Jack – 1200kg Capacity, 600mm Lift

Wall-mounted rack and pinion jacks are used for lifting, lowering, pulling and pushing of loads.

Features

Robust steel design with precisely machined worm and spur gears for smooth and easy manual operation.
Solid steel rack with additional bore hole for fastening of the load.
Low wear owing to hardened gearing parts and precisely machined teething.
Up to 1200 kg lifting load for pushing or pulling loads are equal.
At standard tensile load from 1500 - 10000 kg. Compressive load possible on request.
Rigid wall mounting.

Optional

Different rack length on request.
Crank with folding handle for ZWW-L.
ZWW-L with capacities of 600kg and 1200kg are also available in explosion-proof design.

Atex Version Available
