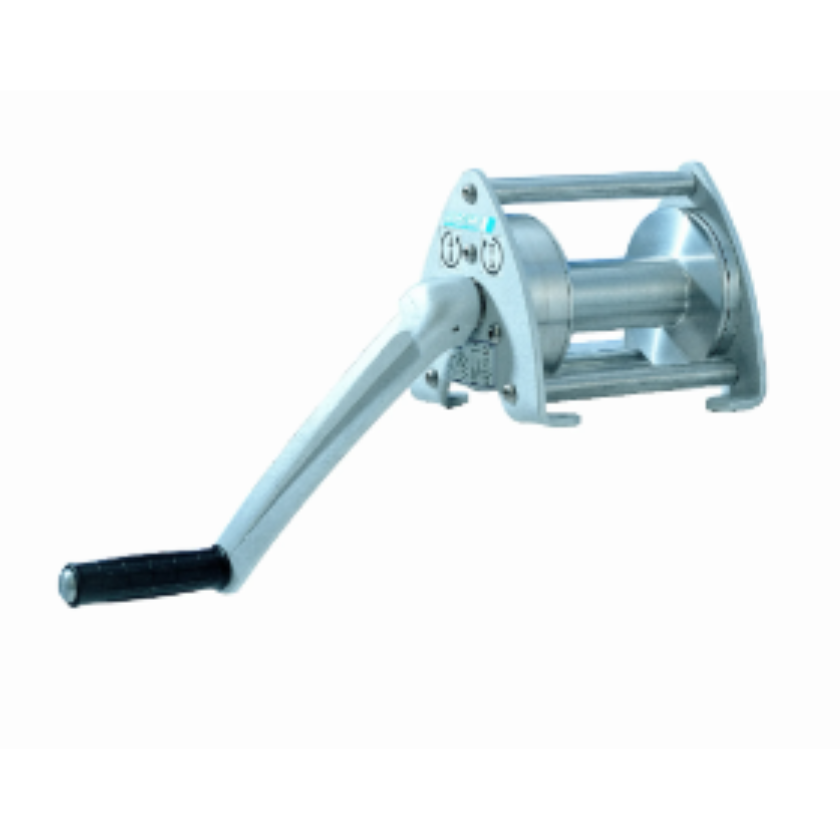

Pfaff SW-K GAMMA 200 Console-Mounted Aluminium Rope Winch - 200kg Capacity
Due to its rugged design, the aluminium rope winch is suitable for operation outdoors
Features and benefits include:
- Compact aluminium housing and enclosed sprocket wheel drive. From a capacity of 500 kg with speed increasing ratio for small loads and quicker winding and unwinding of the unloaded rope.
- Spur gear drive for optimal efficiency and comfortable handling.
- Enclosed gear for the protection of parts inside, also for arduous applications.
- Low-friction shaft sliding bearings for improved rope lead-off and a longer service life of the winch.
- Wide rope drum for a large rope capacity with two rope attachment points.
- Easy and quick mounting.
- With integrated safety spring brake system and removable crank. The winches can be operated from either side.
Recommended Wire Rope: DIN EN 12385 FE-znk 1770 sZ-spa
Note: All Pfaff winches are supplied without wire rope unless requested.
UKCA / CE Mark where required and with Certification
