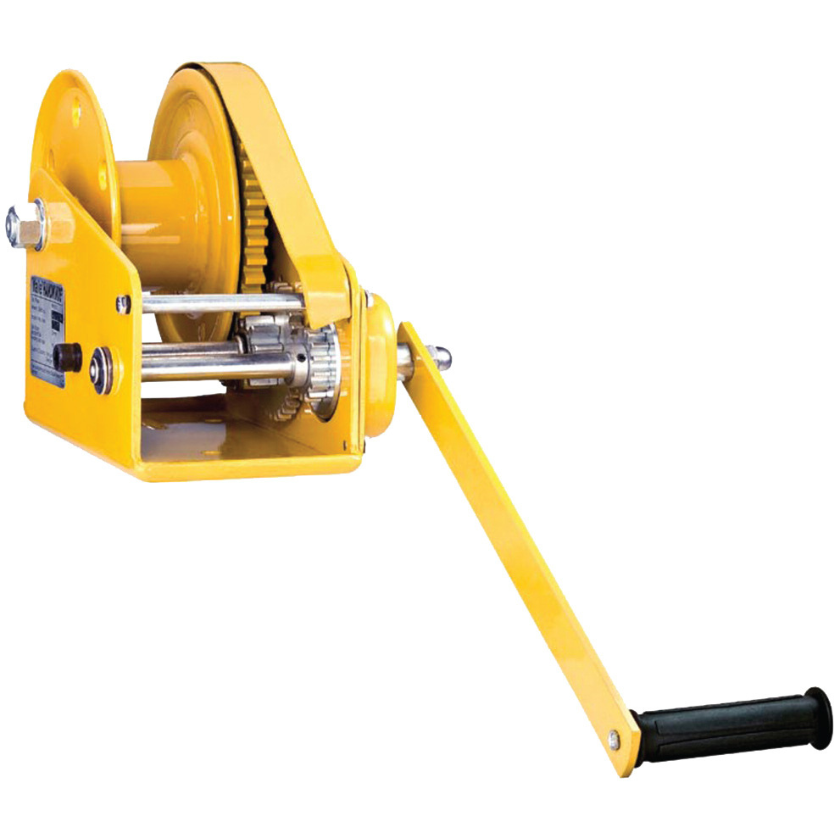

Pfaff HW-C 80 Spur Gear Drive Manual Wire Rope Winch - 800kg Capacity
Suitable for use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.
Features and benefits include:
- Winch housing and rope drum from robust steel plate for high versatility.
- Rope drum on bush bearings for flawless rope lead-off.
- Spur gear drive for optimal efficiency.
- Compact design.
- Easy and quick mounting onto walls, poles, towers etc.
- Pivotable handle.
- Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
- The wire rope winch comes with a high visibility, yellow powder coated finish as standard.
- Suitable for operation in ambient temperatures of -10° to +50°.
Note: Pfaff winches are not designed for passenger elevation applications and must not be used for this purpose.
All Pfaff winches are supplied without wire rope unless requested.
UKCA / CE Mark where required and with Certification
