PCW3000-LI-KR Battery | 1000kg Capstan Winch Kit - Inc Battery & Charger & 100m Rope

Name: PCW3000-LI-KR Battery | 1000kg Capstan Winch Kit - Inc Battery & Charger & 100m Rope
Brand: Portable Winch
SKU: 167-1-35
Price: 1684.80 GBP
Availability: InStock

PCW3000-LI-KR Battery | 1000kg Capstan Winch Kit - Inc Battery & Charger & 100m Rope

SKU: 167-1-35

View more capstan winches battery petrol electric

PCW3000-LI-KR Battery | 1000kg Capstan Winch Kit - Inc Battery & Charger & 100m Rope

SKU: 167-1-35

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £500

- View options

Click & Collect from BL9 6EY

- Collect from our warehouse

View full details

Description

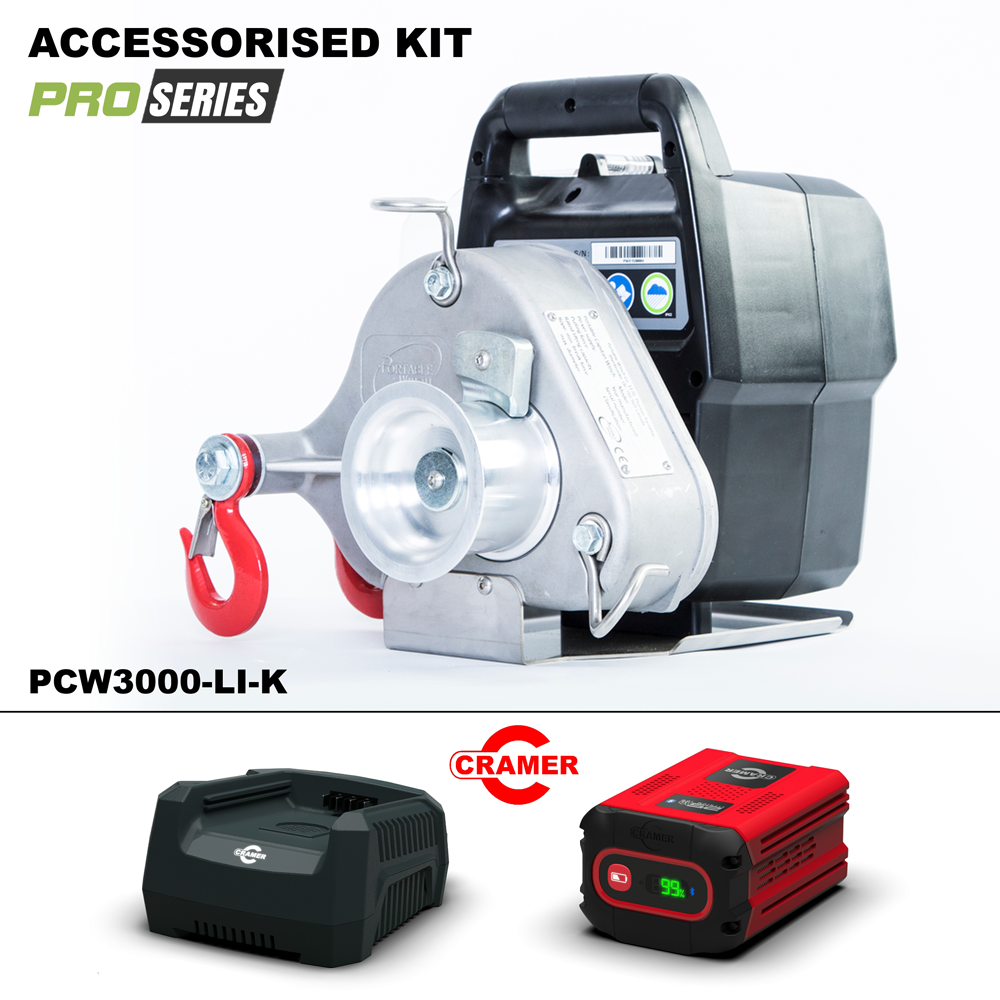

The PCW3000-LI-KR Kit 100m is supplied with:

1 x PCW3000-Li Battery Capstan Winch
1 x CRAMER 82v 2.5ah Lithium-ion Battery
1 x CRAMER 82v Fast Charger
1 x 10mm Dia 100m Double Braid Pulling Rope with Plain End

The PCW3000-Li was the very first battery powered Portable Capstan winch in the World!

Featuring a 1.0 KW brushless electric motor that accepts 82 Volts Lithium-Ion batteries, from 2 to 6 amperes, this powerful and reliable winch is compatible with other battery-powered tools.

The PCW3000-Li It is always ready to be used since it is zero maintenance. It is then perfect for quick or unplanned jobs. Ideal for seasonal and/or less frequent usage. Moreover, it can be used indoors!

Reaching up to 1000 kg of pulling force, it will allow you to achieve laborious tasks with ease. It can be anchored anywhere in a few seconds. Once the winch is anchored, all that is left to do is to wrap the rope around the drum and start pulling.

Weighing only 9.5 kg for the Winch, it can be carried wherever it is needed and can be used with any lengths of 10 mm diameter double-braided polyester rope.

The winch has 3 speeds :

Speed 1: 8.1 m/min
Speed 2: 10 m/min
Speed 3: 11.6 m/min

The PCW3000-Li will meet your needs in many situations, in all land conditions.

Regarding its run time before re-charging, it varies depending on the battery, the speed and the load weight. Thus, between 20 and 40 minutes of running time for the PCW3000-LI with a 2.5amp battery is a good guide to work from.

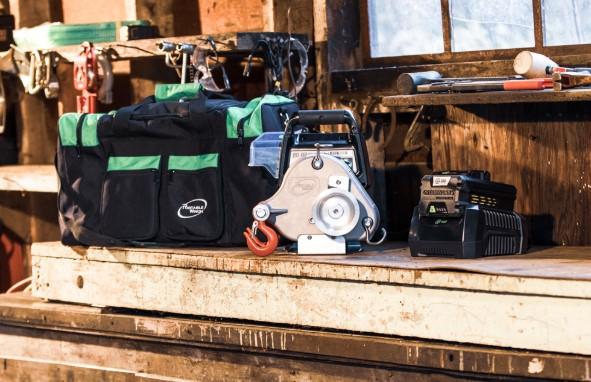

Portable Winch Co. also offers the transport case in order to store and carry your winch and accessories.

*Accessories sold separately.

*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch

WARRANTY
Private use : 2 years
Commercial use : 1 year
Battery and Charger Warranty covered by CRAMER Dealer Network

Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !

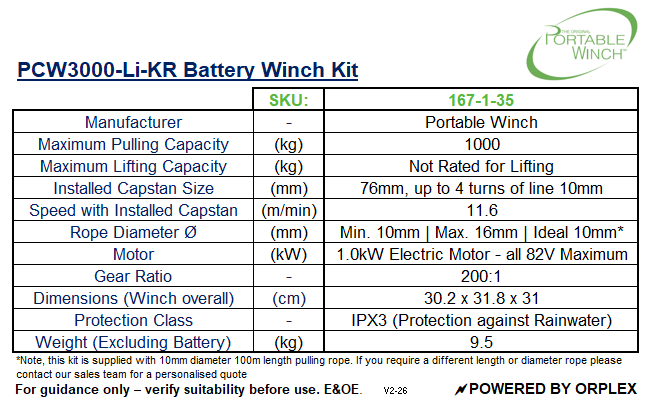

Spec

PCW3000-LI-K Battery Winch Kit 1000kg

Manufacturer	PORTABLE WINCH
Max Pull Capacity	1000kg
Max Lifting Capacity	Not Rated For Lifting
Installed Capstan Size	76mm, Up to 4 turns of line 10 mm.
Speed with Installed Capstan	11.6 m/min
Rope Size	Min 10mm \| Max 16mm \| Ideal 10mm
Engine/Motor	1.0 KW Electric Motor - all 82V maximum
Gear Ratio	200:1
Dry Weight	9.5kg (excluding Battery)
Dimensions (Overall)	30.2 cm x 31.8 cm x 31.0 cm
Protection Class	IPX3 (protection against rainwater)

Note, if you use a rope diameter of above 13mm this reduces the wraps of rope possible on the drum and reduces the pulling capacity, please contact us if you require further details.
