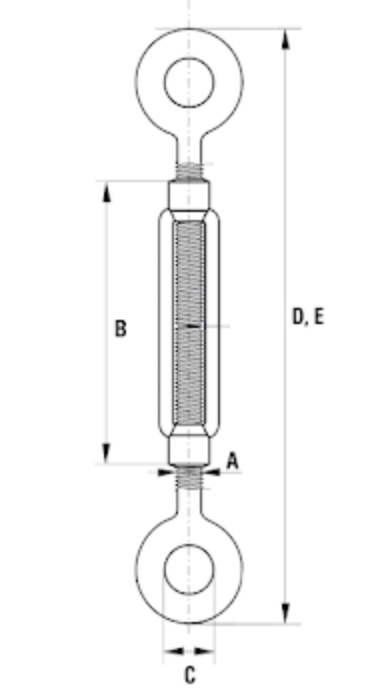

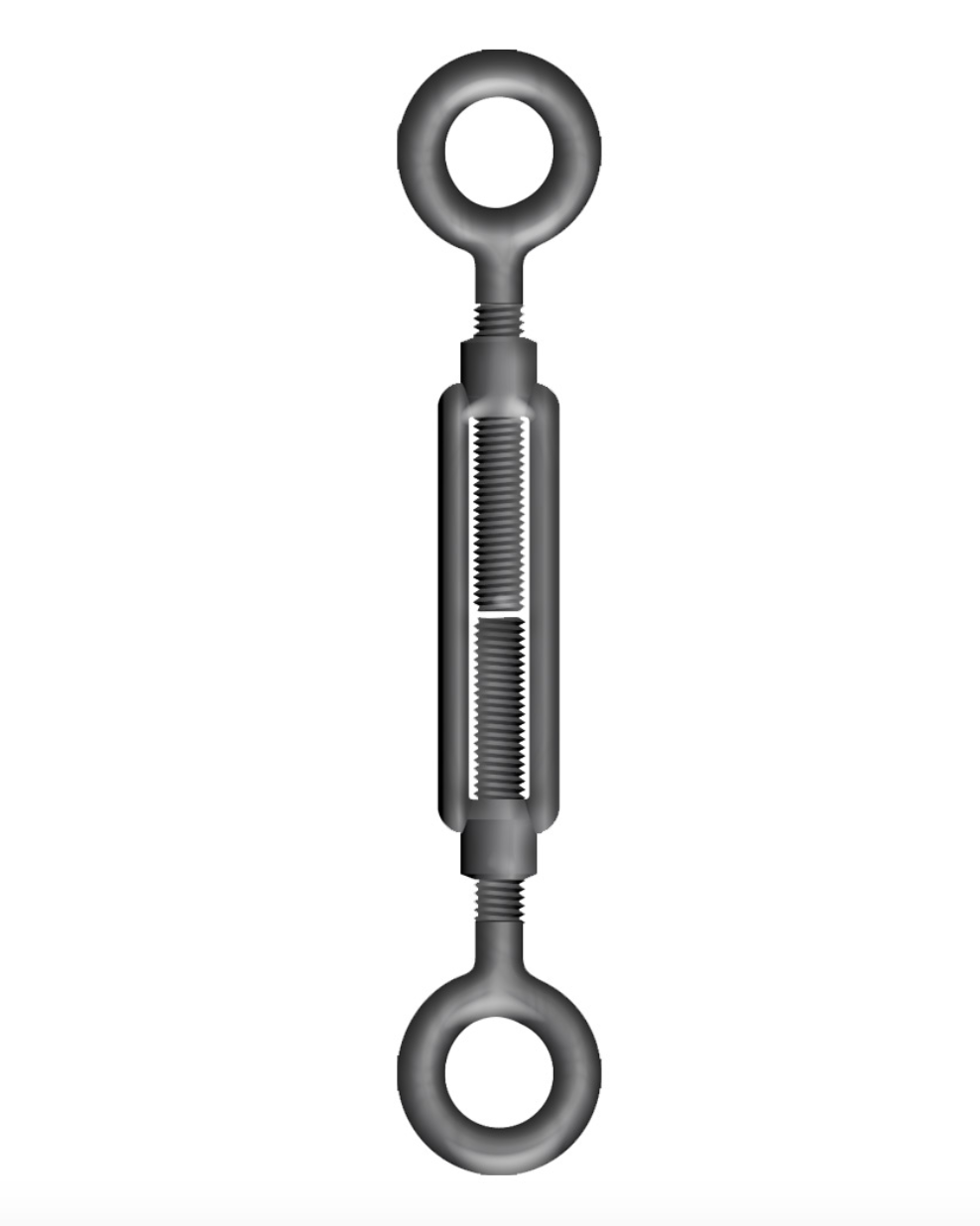

Open Body Straining Screw Eye/Eye to DIN 1480
| SKU |
A | B | F | L min | L max | Weight |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kgs | |
| 286-908-1 |
6 | 110 | 9 | 160 | 246 | 0.11 |
| 286-908-2 |
8 | 110 | 10 | 168 | 248 | 0.2 |
| 286-908-3 |
10 | 125 | 14 | 210 | 300 | 0.28 |
| 286-908-4 |
12 | 125 | 16 | 222 | 305 | 0.43 |
| 286-908-5 |
16 | 170 | 22 | 300 | 416 | 1 |
| 286-908-6 |
20 | 200 | 24 | 334 | 466 | 1.6 |
| 286-908-7 |
24 | 255 | 27 | 410 | 587 | 2.8 |
