Warrior 1000kg Mini Scaffold Hoists 240v

Name: Warrior 1000kg Mini Scaffold Hoists 240v
Brand: Warrior Winches
SKU: 161-4-3
Price: 294.00 GBP
Availability: InStock
Rating: 5.0 (4 reviews)

Warrior Winches SKU: 161-4-3

Pre-order today – estimated dispatch within 3 working days

1 4

Warrior 1000kg 240v Electric Hoist with Air Socket This compact, general purpose 240v electric hoist is ideal for all manner of lifting and pulling work. This model is now fitted with a fantastic new quick... Read More

Product variants

£294.00

Sale TODAY'S PRICE £294.00

Pre Order

Tax included. Shipping calculated at checkout.

Quantity

Buy from our EU store

Quotation Required :
For a quotation instead of pre-ordering, please email your request to sales@rigginguk.co.uk with your billing/shipping address and contact phone number.

Estimated build / lead-time
Approximately 3 working days from order.

Description

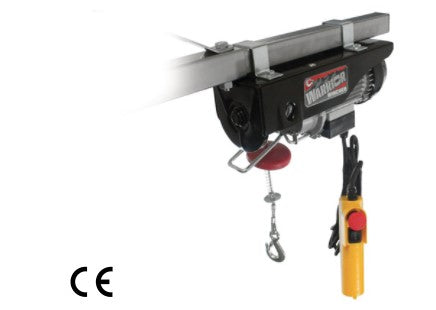

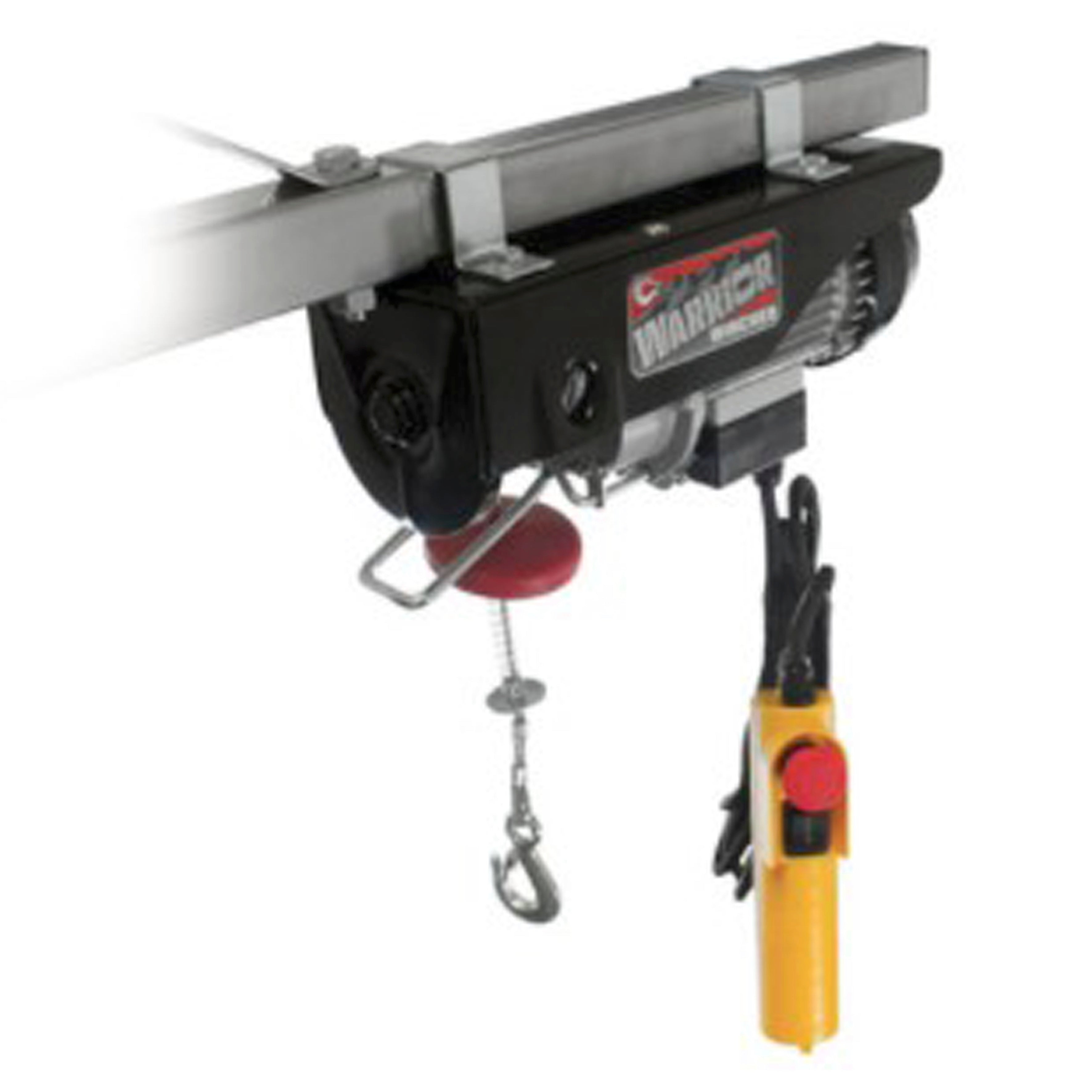

Warrior 1000kg 240v Electric Hoist with Air Socket

This compact, general purpose 240v electric hoist is ideal for all manner of lifting and pulling work. This model is now fitted with a fantastic new quick release air socket on the hand control lead means that the hand control can be quickly and easily unplugged and replaced by an optional wireless control (sold separately).

The included mounting enable easy installation onto box section of up to 60mm x 60mm. This hoist is fitted with a 2.75m long wired hand control with power in & power out facility. Conforms to part of BS EN14492-1 and BS EN14492-2 standard with built in upper and lower limit switches and thermal overload on the motor for added safety.

The duty cycle of this winch is S3 - 20% on a 10 minute cycle. Simply translated this means that the unit can be used continuously for 2 minutes before an 8 minute cool down period is required. The load holding break will ensure that your load is held safely during down time.

Standard Features:

♦ Line Capacity: 500kg single cable, & 1000kg double cable
♦ Lift Height: 18m metres single cable & 9 metres double cable (Using Included Pulley Block)
♦ Motor: Reversible 1600W 240v 50Hz Motor - Powers In and Out (Standard UK 3-Pin Plug - Requires 240v 50Hz BS Power Supply)
♦ Warranty: 12 Month Return to Base

Accessories:

♦ Wired Hand Control: 2.75m Wired Hand Control with Stop Button
♦ Wireless Control: Available as an optional extra
♦ Mountings: Included for Standard 60mm2 Box Section installations

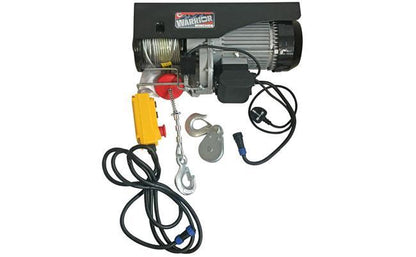

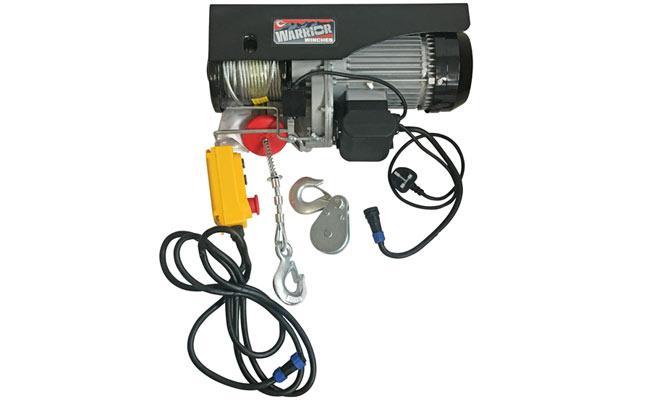

Also Includes:

♦ 3-Pin UK Plug on 650mm Flex
♦ Pulley Block for double line operation
♦ Instruction Manual

Other Information:

♦ Dimensions: 490mm L x 170mm D x 260mm H (620mm H inc mountings, cable and hook)
♦ Approx. Shipping Weight: 33kg
♦ Lifting Speed: 8m/min single cable & 4m/min double cable
♦ Casing Colour: Black

Mini Scaffolds Hoists are available as follows:

SKU 161-4-3 : 500kg single wire 1000kg double wire 3m fixed remote

SKU 161-4-3A : 500kg single wire 1000kg double wire 3m fixed remote & wireless remote option

IP 54 rated.

What does IP54 waterproof mean?

IP54. A product with an IP54 rating is protected against dust ingress sufficient to prevent the product from operating normally but it's not dust tight. The product is fully protected against solid objects and splashing of water from any angle.

Link to Hoist Frame

Specification

**240v-500/1000kg- Mini Scaffold Hoist Ref: 161-4-3

This hoist also has the facility to add a wireless remote control as an option, choose SKU 161-4-3A

Accompanying product image

Downloads

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

Why are there two weight capacities on the Warrior Mini Scaffold Hoists?

The models do have two weight options, one is for operation with a single cable and one of operation with a double cable. So for example the model you have selected “SKU 161-4-3” – the weight capacity is 500kg with one cable and 1,000kg with two cables.
What mounting attachments come with the Mini Scaffold Hoists?

each Mini Scaffold hoists is supplied with 2 "saddle" mounting brackets and 4 screws, washers and spring lock washers which must be used for connecting to the top of the winch mouting casing for installation.
