Mild Steel Electro Galvanised Eyebolt to DIN 580

by GT
£1.01

SKU :286-624-1

Diameter/W.L.L.

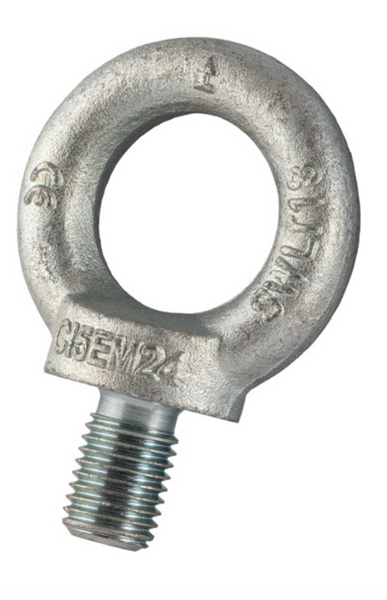

Mild Steel Electro Galvanised Eyebolt to DIN 580 - EBDBSW
  • Mild steel.
  • Self coloured and electro galvanised finish.
  • Meets the W.L.L. performance requirements of DIN 580.*
  • Minimum breaking load is 5 times the W.L.L.
  • Marked with CE, W.L.L, material, size and product ID mark.
  • For further clarification on reductions for non-axial loading, please consult RiggingUK.
  • Certification available  2.1    DoC



      Spec

      SKU Product Code W.L.L. A B C D E F G Weight
      t mm mm mm mm mm mm mm kgs
      286-624-1 EBDIN6 0.07 M6 20 36 20 13 6 36 0.05
      286-624-2 EBDIN8 0.14 M8 20 36 20 13 6 36 0.07
      286-624-3 EBDIN10 0.23 M10 25 45 25 17 8 45 0.11
      286-624-4 EBDIN12 0.34 M12 30 54 30 20.5 10 53 0.18
      286-624-X EBDIN14 0.49 M14 35 63 35 27 12 60 0.22
      286-624-5 EBDIN16 0.7 M16 35 63 35 27 12 62 0.28
      286-624-X EBDIN18 0.9 M18 40 72 40 30 14 71 0.36
      286-624-6 EBDIN20 1.2 M20 40 72 40 30 14 71 0.45
      286-624-X EBDIN22 1.5 M22 45 81 45 35 14 80 0.64
      286-624-7 EBDIN24 1.8 M24 50 90 50 36 18 90 0.87
      286-624-X EBDIN27 2.5 M27 50 90 50 36 18 90 1.25
      286-624-8 EBDIN30 3.6 M30 65 108 60 45 22 109 1.66
      286-624-X EBDIN33 4.3 M33 65 108 60 45 22 110 2.16
      286-624-9 EBDIN36 5.1 M36 75 126 70 54 26 128 2.65
      286-624-X EBDIN39 6.1 M39 75 126 70 54 26 130 3.34
      286-624-X EBDIN42 7 M42 85 144 80 63 30 147 4.03
      286-624-X EBDIN45 8 M45 85 144 80 63 35 150 5.21
      286-624-X EBDIN48 8.6 M48 100 166 90 68 35 168 6.32
      286-624-X EBDIN56 11.5 M56 110 184 100 78 38 187 8.8
      286-624-X EBDIN64 16 M64 120 206 110 90 42 208 12.4
