MCJ3 - Mechanical Cable Drum Jack Set - Up to 6.0t Lifting Capacity

In stock
SKU: 100-10-4
(0)
£917.61 GBP inc vat

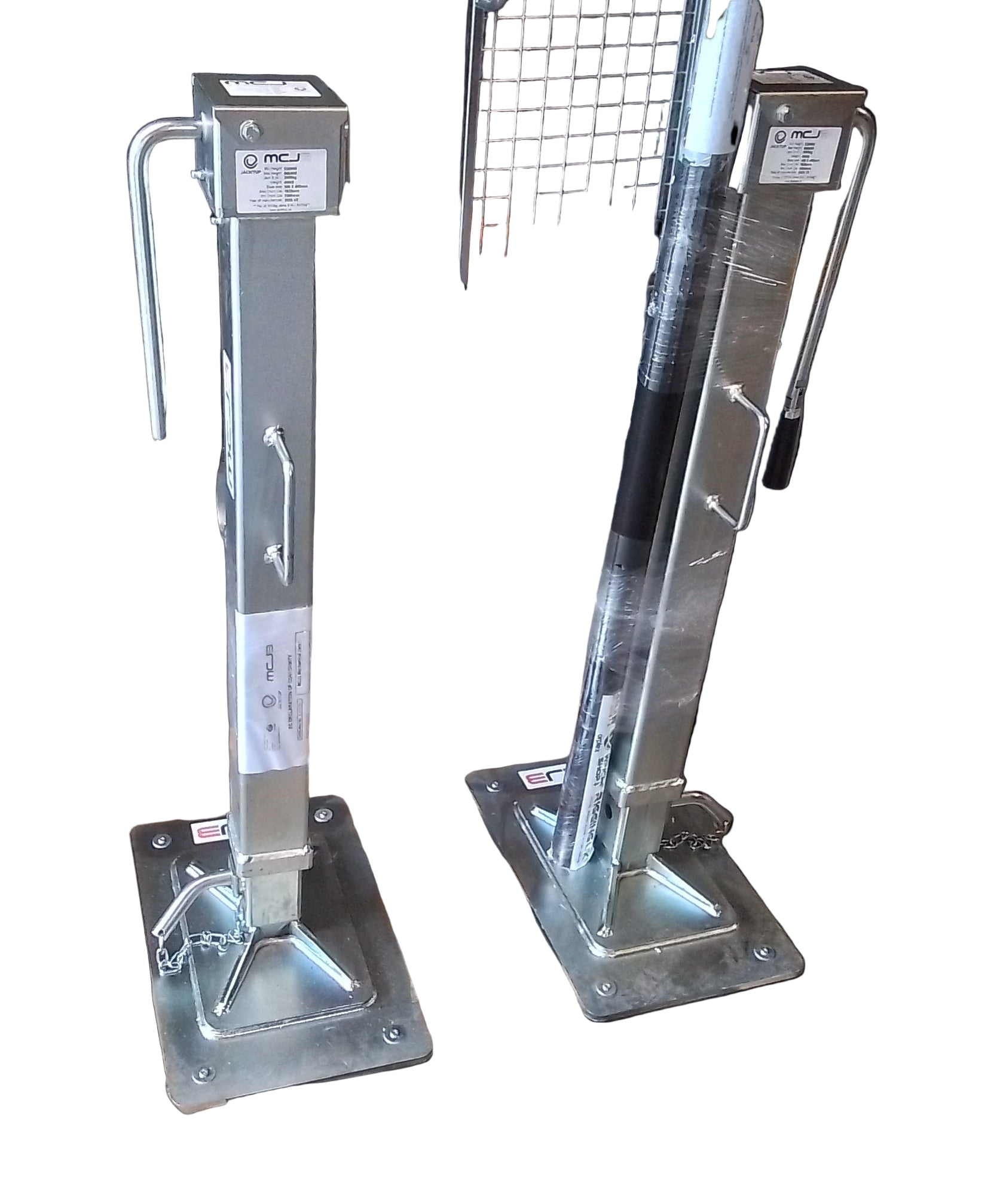

Choose Jacks with or without Spindle Bar

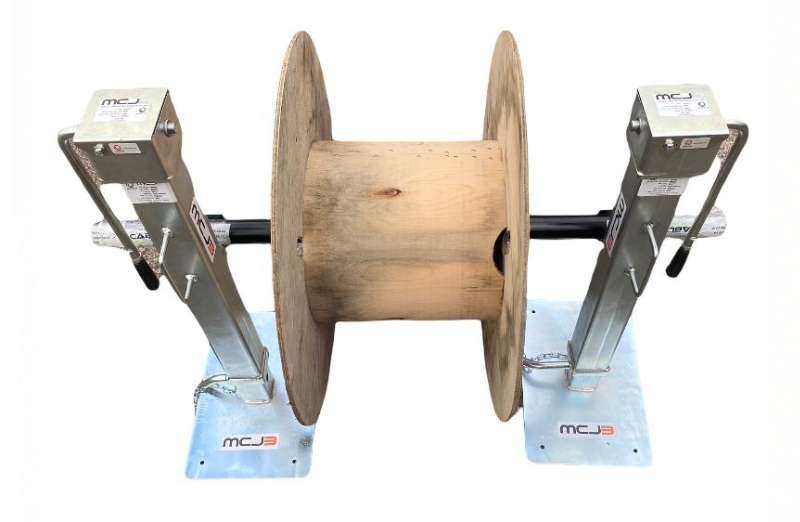

MCJ3 Mechanical Cable Jacks

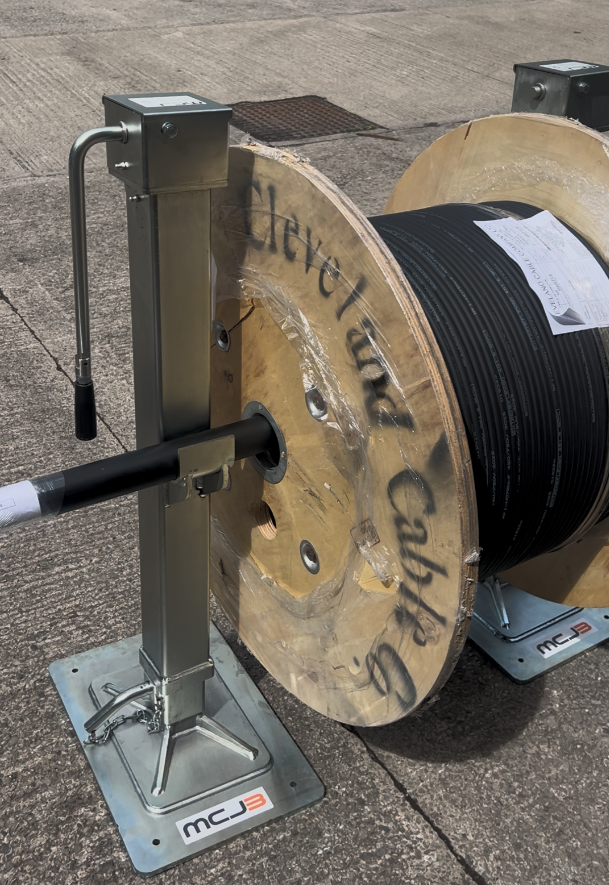

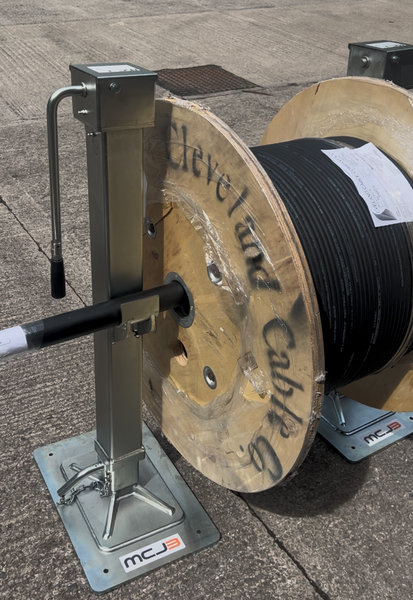

MCJ range of Mechanical Cable Jacks are used to lift, support and distribute low and high voltage cable drums to enable efficient cable laying and pulling for low and high voltage cables.

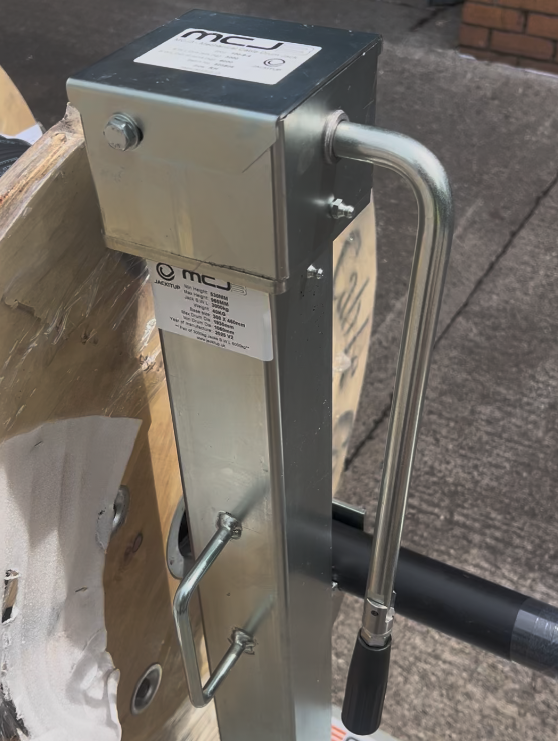

Designed with the user in mind, the jacks are simply operated with mechanical winch via the foldable handle, they also separate for ease of storage.

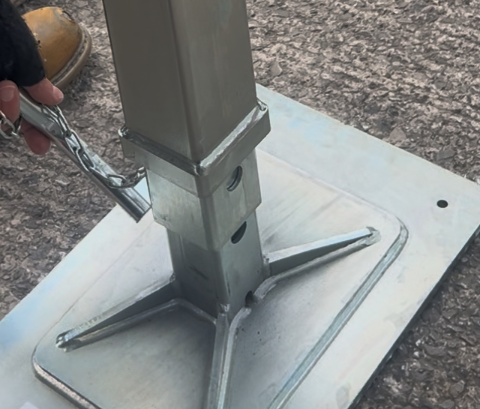

Featuring 2 adjustable pin levels for quick setup.

Whether it be for a permanent fixed position on the factory / warehouse floor or on site a construction site the base of the jacks are designed to give you stability whilst coiling / uncoiling your cables.


    Jackitup in the UK

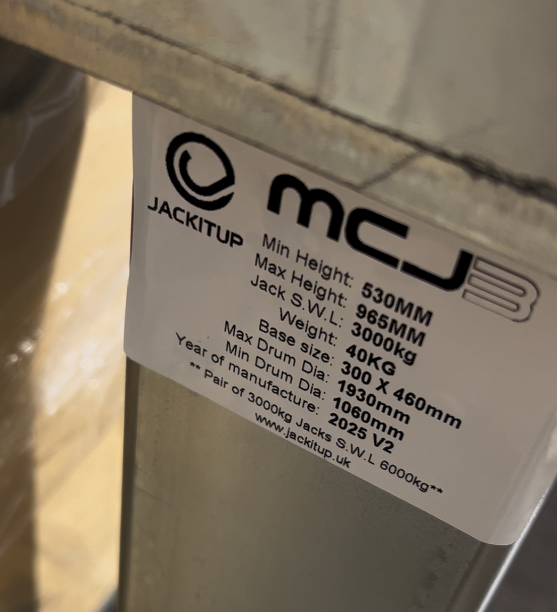

    Spec

    • Inspected and certified
    • Designed for heavy duty use
    • Extra strong base plates

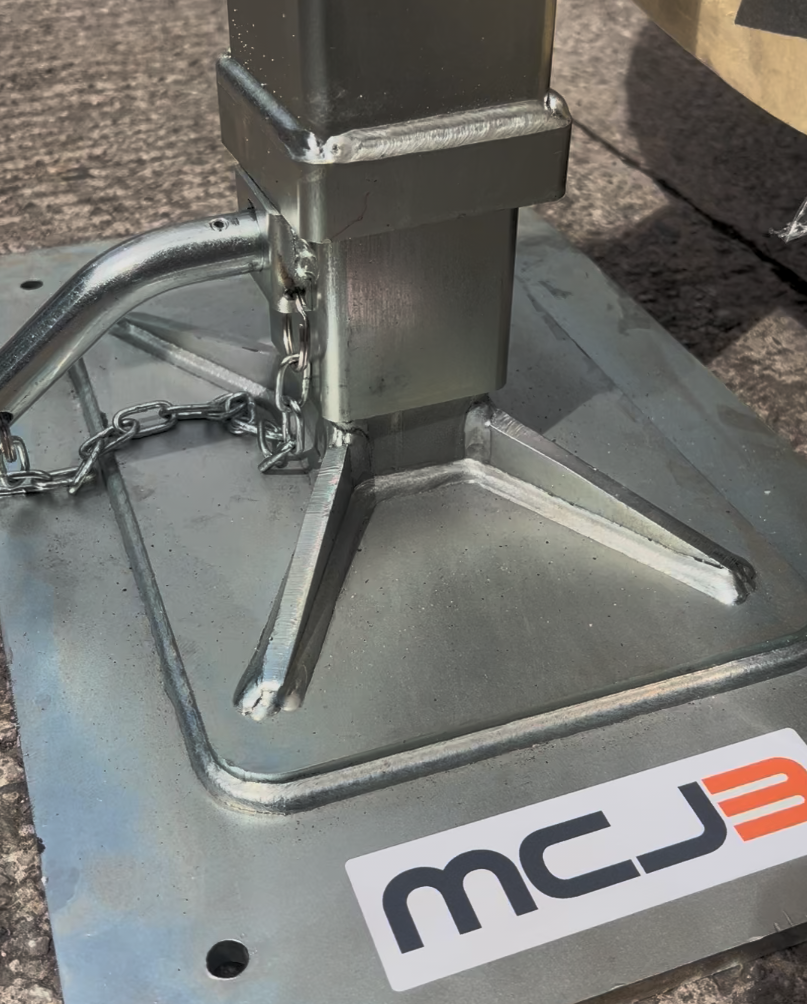

    • 4no. 10mm holes in base plate for permanent anchoring
    • Colour as standard: Silver
    • Suitable for 1060-1930mm diameter cable drums
    • Robust and easy to use
    • Removable Base for easy storage and transportation



    • Weight Each 34 Kg per jack
    • Maximum Capacity 6000 Kg (Pair of 3t MCJ3 Jacks)

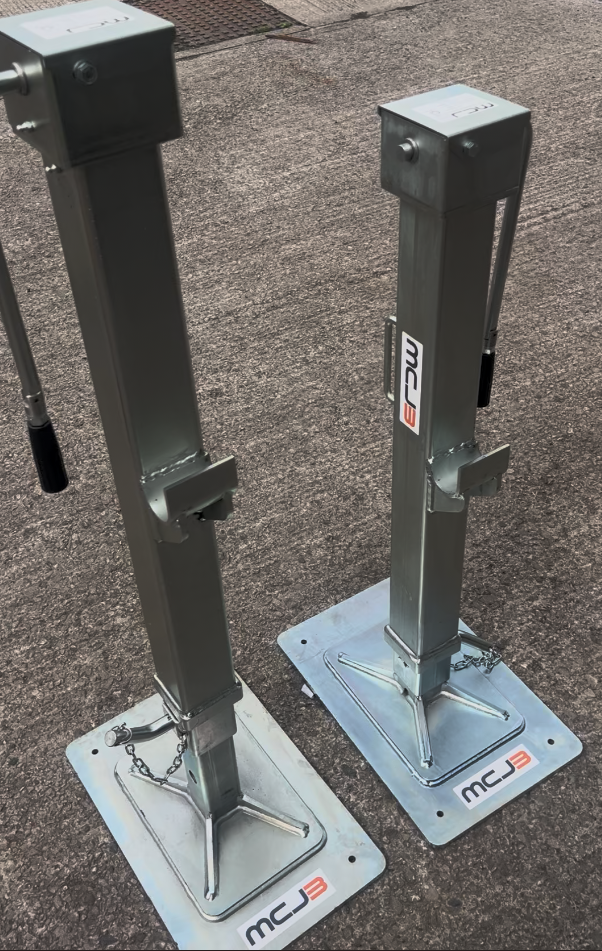

    • Min Height 530 mm
    • Max Height 965 mm
    • Base Size 300 x 460 mm

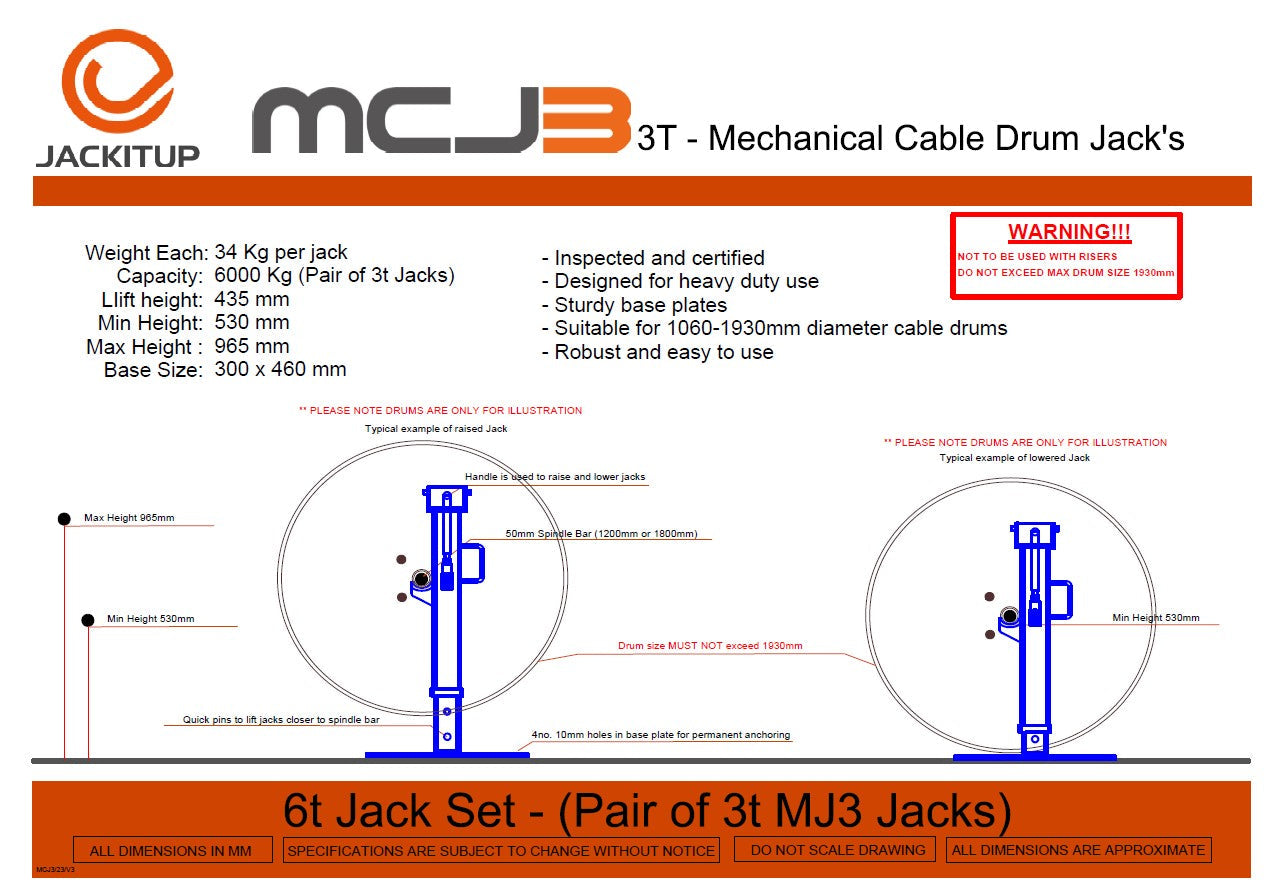

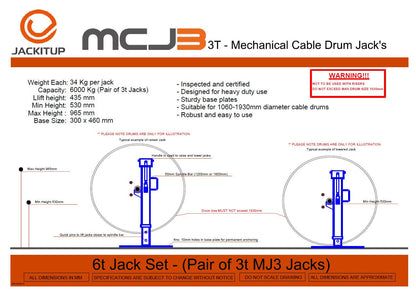

    MCJ3 Data Sheet

      Downloads

      Cable JacksOperation manual

      Cable JacksMaintenance manual

      Cable JacksData Sheet

      Legislation

      LOLER

      Cable Jacks general do not need to follow maintenance under LOLER, as the Jacks are only designed to be used to lift the drum high enough off the ground so it freely spins to pay out the cable and NOT for crane/high lifting purposes.

      Cable Jacks general have been examined and where applicable are supplied generally to meet Supply of Machinery (Safety) Regulations EEC 2006/42/EC (as amended), and where relevant, Construction & Use Regulations EEC Directives 71/320 (as amended).

      A certificate of Certificate of Conformity can be issued on request.

      ***Obviously should either the application or your own company policies require LOLER maintenance to be followed then this would be you to decide on.
