IMER G500 Scaffold Hoist 500kg - 110v
Skip to product information
1 of 1

IMER

IMER G500 Scaffold Hoist 500kg - 110v

IMER G500 Scaffold Hoist 500kg - 110v

SKU: 294-2-13

Read More
Regular price £2,214.00
Regular price RRP Sale price TODAY'S PRICE £2,214.00

Out of stock (0)

Tax included. Shipping calculated at checkout.

Need More?

Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk

Need Help?

If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk

0% Finance Available

Through PayPal Credit - Find out more

Free UK Delivery Over £250
Click & Collect from BL9 6EY
View full details

Description

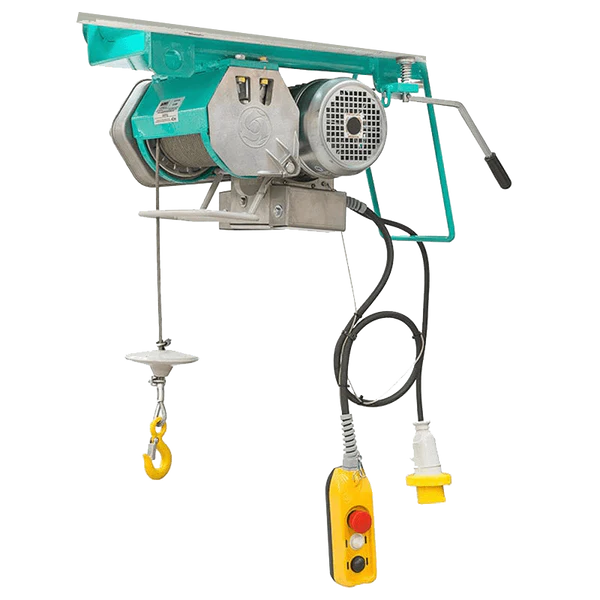

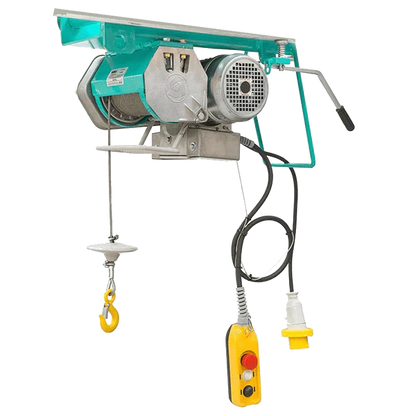

IMER G500 Scaffold Hoist 500kg - 110v - 42m High Capacity

Stand hoist. Single-phase 110V/50Hz electric motor. Average full load lifting speed: 17 m/min. Max. capacity 500kg

Thanks to their sturdy structure and powerful motor, G500 and G1000 are particularly suitable for heavy duty use on site.

  • Single-phase 110V/50Hz electric motor
  • IP67 plug
  • Frame with 4 steel wheels
  • Upper limit safety device
  • Direct control with 3-push button IP65 1.5-m pendant control
  • Positioning brake
  • Self-braking motor with magnetic device

SCAFFOLD HOIST ONLY.

Available to buy as part of a Complete Gantry Hoist Kit (294-2-21)

110v (294-2-13) and 230v (294-2-14) versions available.

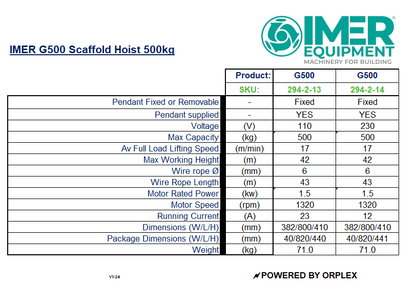

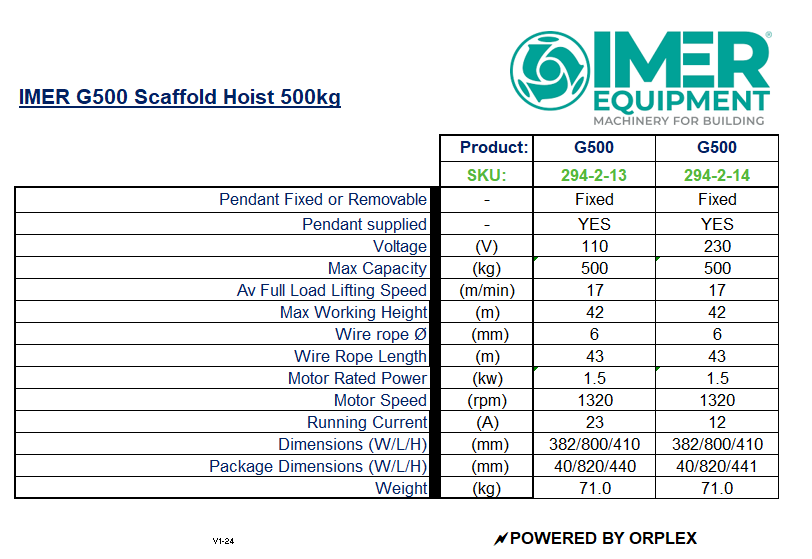

Spec

SKU 294-2-13
Max Capacity kg 500
Av. Full Load Lifting Speed m/min 17
Max. Working Height m 42
Steel Rope Dia. mm 6
Rope Length m 43
Electric Power Supply V /Hz 230 / 50 Sph 230 / 60 SPh  110 / 50 Sph
Motor Power Rate kW 1.5
Motor Speed rpm 1320
Running Current 230v (110v) A 12 (23)
Weight kg 71
Dimensions w/l/h mm 382/800/410
Packing Dimensions w/l/h mm 400/820/440


Downloads



Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question
  • what size generator would you need to run this item?

    I would say a 3KW will do the job. Below is the rating of the motor, also depends on load and usage.
