IMER ET 200 NEO Scaffold Hoist 200kg - 110v
IMER SKU: 294-1-4

Need More?
Require more stock than shown as available, please send us your requirements via email sales@rigginguk.co.uk
Need Help?
If you're unable to locate the specific item you're searching for, please send us your requirements via email sales@rigginguk.co.uk
Description
Description

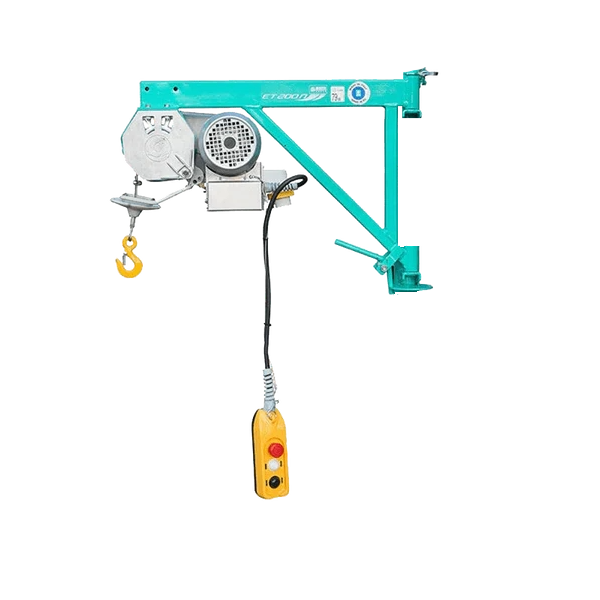

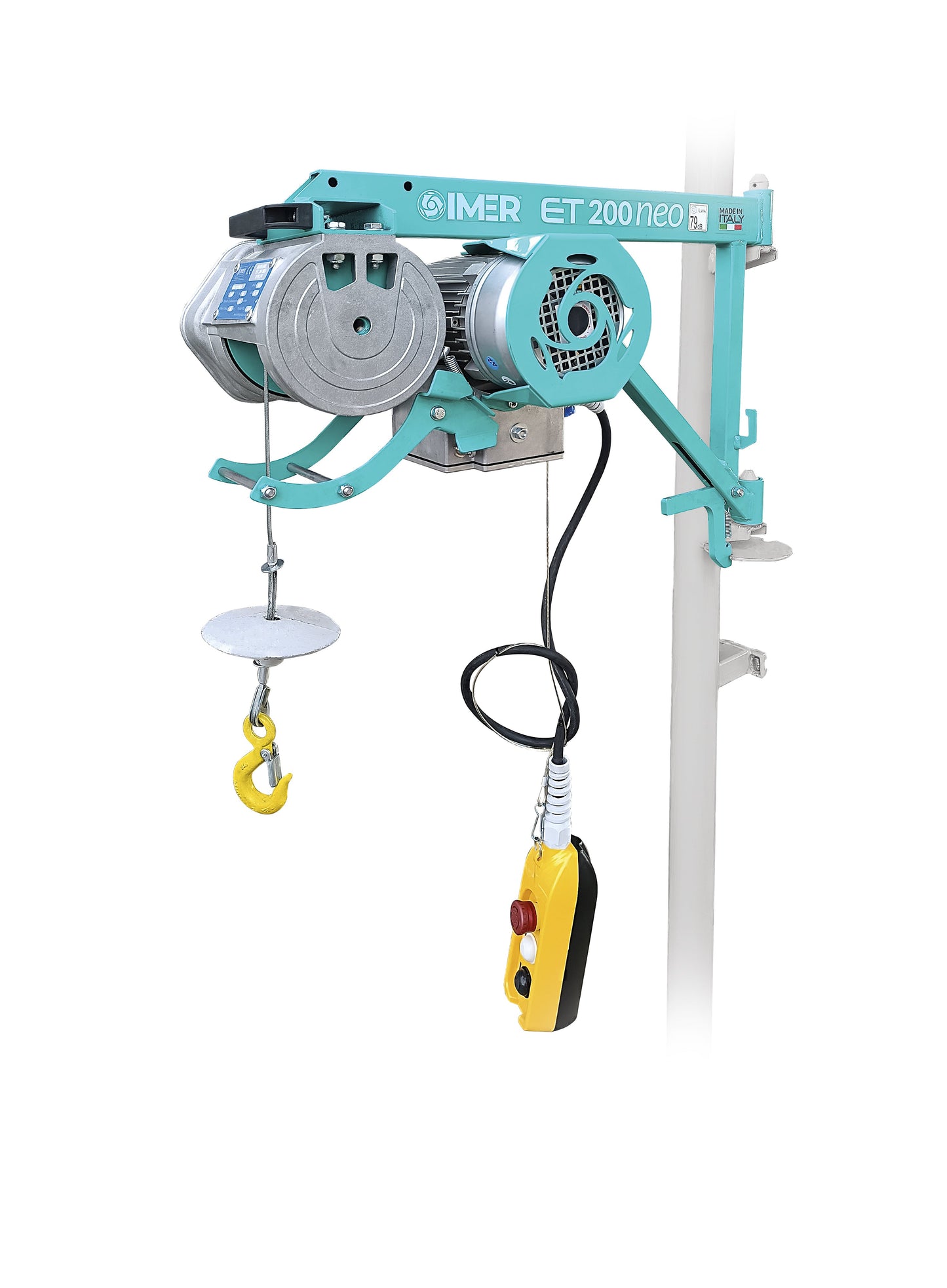

IMER ET 200 NEO Scaffold Hoist 200kg - 110v - 30m High Capacity
Scaffold Hoist ONLY - No 3 Point Fixing Pole Supplied*
Features at a glance
| Maximum Capacity | 200kg |
| Maximum Working Height | 30m |
| Rope Length | 31m |
| Motor | 110v |
| 3 Point Attachment Pole Supplied * | No* (see SKU 294-1-7) |
IMER Scaffold Hoists are the perfect, high-end equipment for any scaffolding job! IMER Scaffold Hoists are often used by large and small contractors alike.
The IMER ET200 NEO is a pivoting 200kg electric hoist with a lifting height of 30m and is ideal for the small builder or larger contractor to lift material from the ground or lower material to the ground safely.
It has a top limit lever and micro switch to stop the hoist when it is at the top of its lift safely. The hook has a spring loaded safety catch to keep the load carrier within the hook for added security when lifting.
The ET 200 NEO IMER Scaffold Hoist - 200Kgs is supplied with a top mounting bracket, lifting height of 30m, and fast lifting speed of 19m/min. The hoist is a 110-volt power supply and is supplied with a waterproof 1.5m pendant and plug. These quality-made hoists are fitted with upper-limit safety devices to protect from over lifting of goods.
110v power (SKU 294-1-4) or 230v power (SKU 294-1-3) versions available.
*This SKU 294-1-4 is for an ET 200 NEO Scaffold Hoist ONLY - NOT the complete kit which includes a 3 Pont Fixing Bracket. Please order our SKU 294-1-7 for complete kits to include the 3 point fixing bracket.
Specification
| SKU | 294-1-4 | |
| Max Capacity | kg | 200 |
| Av. Full Load Lifting Speed | m/min | 19 |
| Max. Working Height | m | 30 |
| Steel Rope Dia. | mm | 4 |
| Rope Length | m | 31 |
| Electric Power Supply | V /Hz |
110 / 50 Sph |
| Motor Power Rate | kW | 0.75 |
| Motor Speed | rpm | 1380 |
| Running Current 230v (110v) | A | 7.2 (14) |
| Machine Weight | kg | 42 |
| SPL in operator's position | da(A) | <70 |
| Dimensions w/l/h | mm | 330/770/520 |
| Packing Dimensions w/l/h | mm | 390/810/590 |
| 3 Pont Attachment Scaffold Pole* | No |
Product Questions & Answers
Product Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
What size transformer is best to run these IMER hoist ES 150 and ET 200N off
A 5KVA Transformer, 2.5mm lead no more than 14 meters in length.
